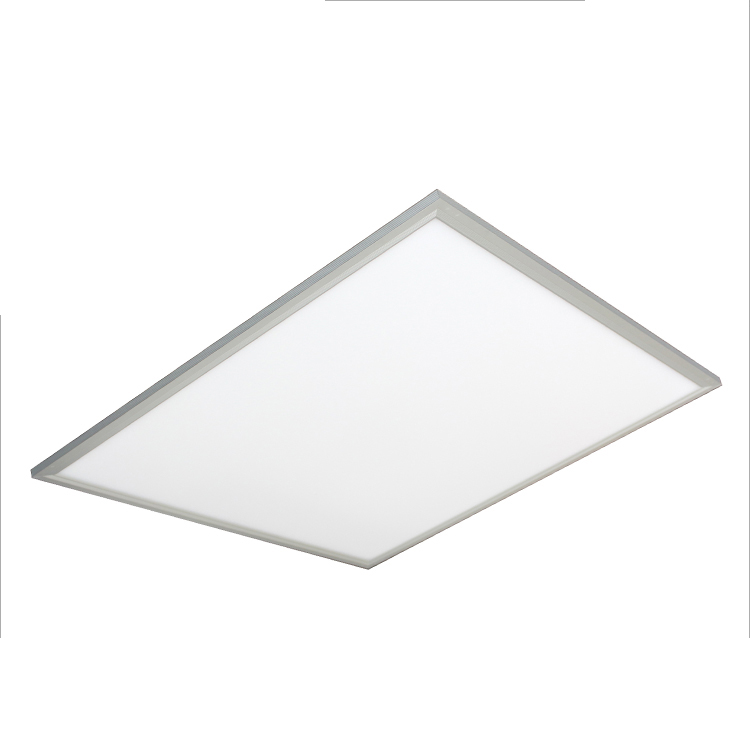

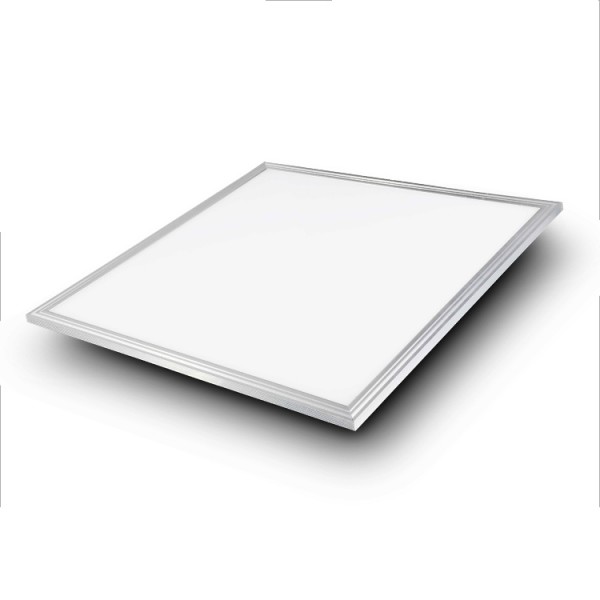

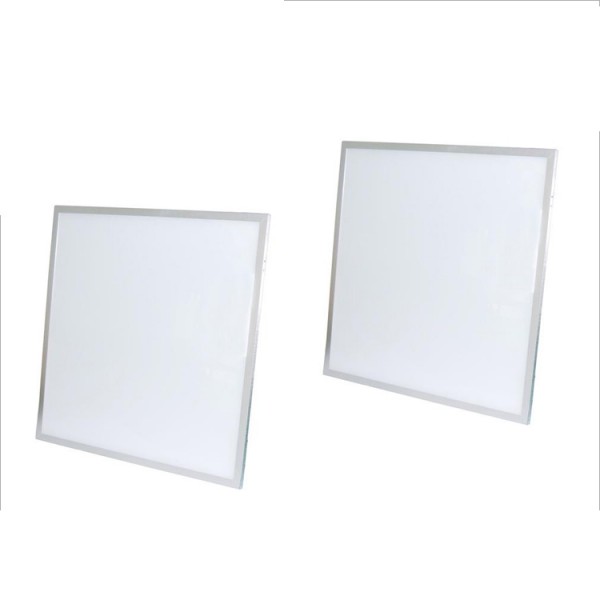

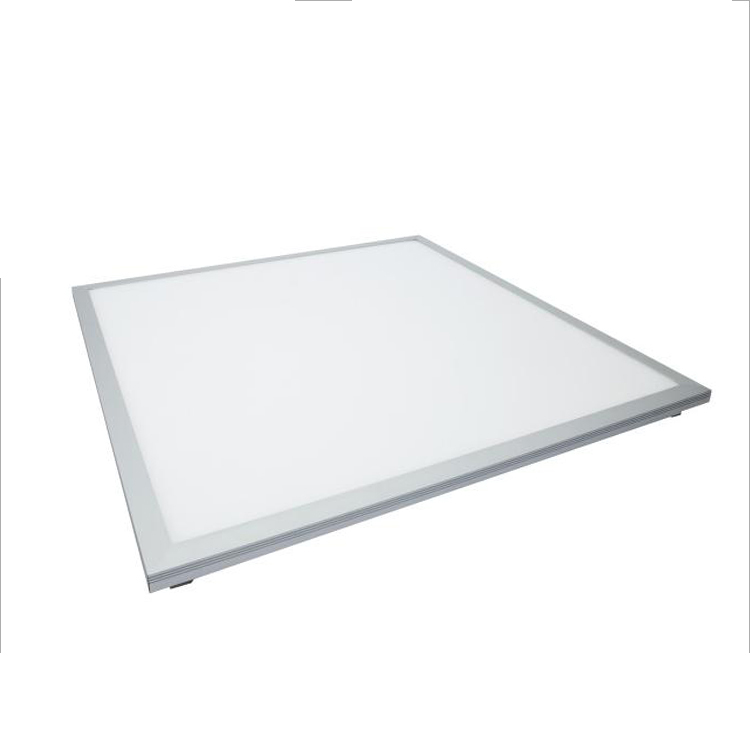

aluminum ceiling project led panel 600×600 48w CE ROHS SAA CB DLC UL

aluminum ceiling project led panel 600×600 48w CE ROHS SAA CB DLC UL

aluminum ceiling project use
50, 000 hours average LED life span
led panel 600×600 48w
CE ROHS SAA CB DLC UL

  • Description
  • Contact From

aluminum ceiling project led panel 600×600 48w CE ROHS SAA CB DLC UL



Features
Key Features
• 120LM/W – 80 certified patent led as light source
• UGR<19, Ficker-free
• 1-10V Dimmable function
• DALI Dimmable function
• TRIAC Dimmable function
• Emergency:3 hours integrated emergency

Construction Features
• Extra thin aluminum frame 10mm
• White or silver paint finish
• Housing material: Aluminum + PLG + diffuser
• With quickly terminal for easy wiring
• Recessed / surface frame / suspension installation



Technical Details

led panel light 600x600mm (Dimmable is available)


• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP54
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°
• Own designed isolating VDE/TUV /ETL approved driver
• Warm white: WW/3000K
• Neutral white: NW/4000K
• Pure white: PW/5000K
• Cool white: CW/6000K

Applications

• Replaces fluorescent grid
• Retail, offices, schools, hospitals
• Corridors and stairwells
• Suspended ceiling lighting for offices

led panel light applictions

Packaging & Shipping

Standard export packing, color box or neutral white box
