3W 6W 9W 12W 15W 18W 20W 24W ultra thin led square panel light
ultra thin led square panel light
5-years life time
Energy saved up to 50%
CE RHOS approved
- Description
- Contact From
Description
3W 6W 9W 12W 15W 18W 20W 24W ultra thin led square panel light
Features
1.Energy saved up to 50%.high brightness, even lighting output
2.5-years life time
3.Wide range of input voltage:AC85-265V
4.Instant start,no flickering,no humming for people.
5.New high efficiency constant current driver.
6.Special circuit design,each group of LEDs work separately,avoiding any problem of lighting output caused or influenced by single faulty LED.
7.No electrical wave,conforming to CE.
8.Green environmental protection,lead-free material,conforming to ROHS.
9.No RF
Specification
ultra thin led square panel light (Dimmable is available)
| Item Code | Wattage | Lumens | Size mm | Cut |
| MS-SPL-3W | 3W | 280-300LM | 85*85*12.8 | 75*75 |
| MS-SPL-6W | 6W | 550-600LM | 120*120*12.8 | 105*105 |
| MS-SPL-9W | 9W | 800-900LM | 146*146*12.8 | 135*135 |
| MS-SPL-12W | 12W | 1100-1200LM | 175*175*12.8 | 155*155 |
| MS-SPL-15W | 15W | 1400-1500LM | 200*200*12.8 | 185*185 |
| MS-SPL-18W | 18W | 1650-1800LM | 225*225*12.8 | 205*205 |
| MS-SPL-21W | 21W | 1950-2100LM | 237*237*12.8 | 220*220 |
| MS-SPL-24W | 24W | 2200-2400LM | 300*300*12.8 | 280*280 |
| Voltage: AC85-265V/DC12V/DC24V Luminous efficiency: 90-120LM/W CCT/Colors: Warm white, Pure white, Cool white or RGB LED source: 2835 SMD Epistar Beam angle: 120° PF: >0.9 Ra: >80 Installation: embedded installation Certificates: CE RHOS Warranty Period(years) : 3 years | ||||
Applications
1. Recessed lighting, shelf lighting, ceiling/wall coves
2. Cabinet and under counter lighting, office work station
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands, and panels

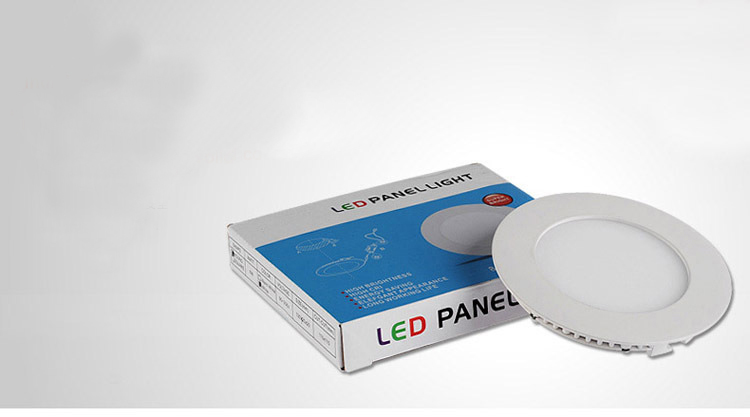

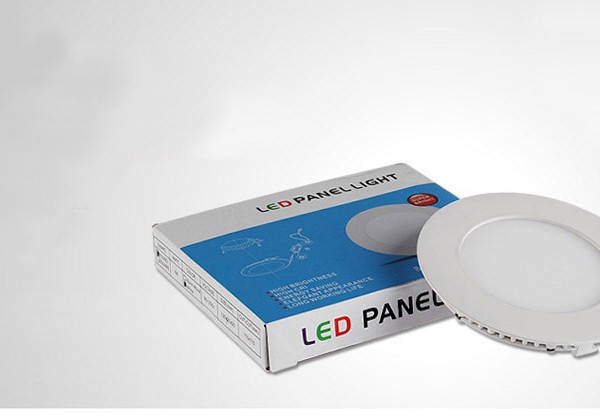

Packaging & Shipping
Standard export packing, color box or neutral white box
