Manufacturer 30cm 60cm 90cm 100cm 120cm 150cm T8 T5 t8 led tube 90cm for indoor
Manufacturer in China
30cm 60cm 90cm 100cm 120cm 150cm is available
T8 T5 t8 led tube 90cm
indoor use
- Description
- Contact From
Description
Manufacturer 30cm 60cm 90cm 100cm 120cm 150cm T8 T5 t8 led tube 90cm for indoor
Features

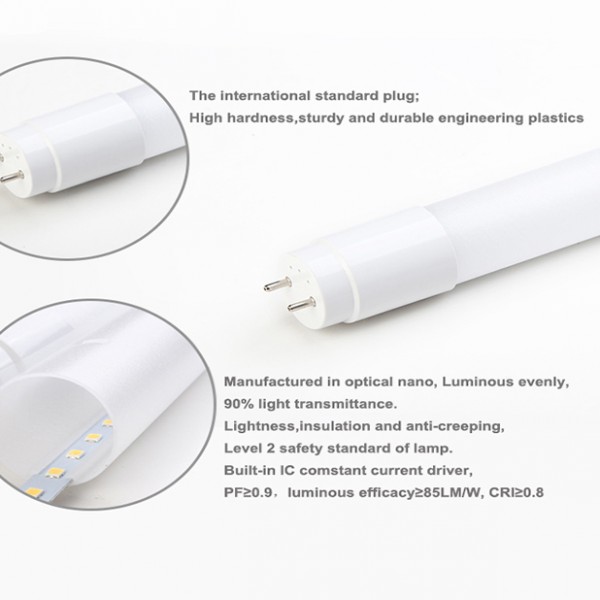

1. The design of the tube without Mercury and Plumbum which make the product safer and more reliable.

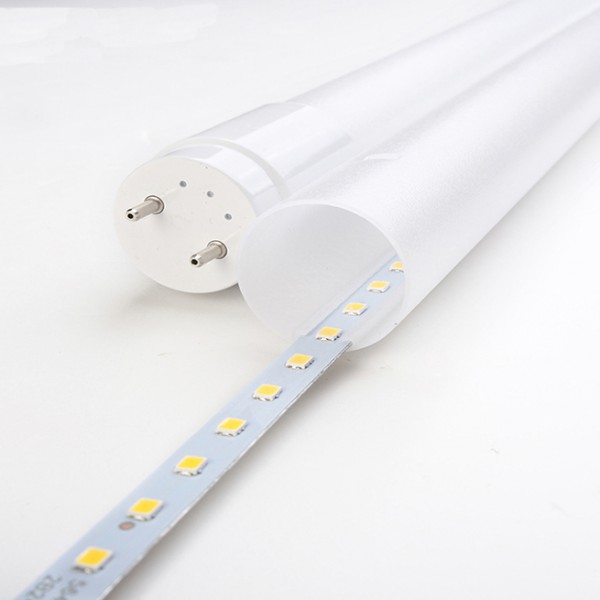

2. Using SMD2835 of Taiwan Epistar’s original LEDs,high brightness, low light loss, solid cold light source, epoxy sealing heat.
3.Using imported good quality alum material for better heat dissipation and maintaining long life span.
4. Nice PC cover with good light transmission, ensuring 90% light transmittance, transparent and frosted PC cover are available.
5.CRI(standard products)>70, it can be more than 80 if required.
Physical Specification
| LED Source | SMD2835 |
| LED Chip | Epistar |
| LED Quantity | 72pcs |
| Holder | G13 |
| Material | Aluminum+PC cover |
| Dimension | Φ26*900mm |
| Lifespan | >50,000 hours |
Electrical Specification
| Input Voltage | AC85-265V |
| Wattage | W |
| Power Factor | >0.9 |
| Power Efficiency | >90% |
| Running Frequency | 50-60Hz |
Optical Specification
| Luminous Flux | 1400lm |
| Light Efficiency | 95lm/w |
| Color Rendering Index(CRI) | 80Ra |
| Beam Angle | 120° |
| Working Temperature | -20°C~56°C |
| Color Temperature | 2700-3500k Warm White |
| 4000-4500k Neutral White | |
| 5000-7000k Pure White |
Packing Information
| Inner Packing | Strong paper box |
| Carton Size | 95*20*24cm |
| Quantity per Carton | 30pcs/ctn |
| Net Weight(N.W) | 400g |
| Gross Weight(G.W) | 550g |
Details
Technical Details
| Model | Power | LED Type | LED quantity | Voltage | Color Temperature | Lumens | CRI | Size |
| MS-T8-0.6M | 11W | SMD2835 | 48pcs | AC85-265V | 3000K/ | 1100LM | 80Ra | L600*Φ26 |
| 4500K/ | ||||||||
| 6500K | ||||||||
| MS-T8-0.9M | 14W | SMD2835 | 72pcs | AC85-265V | 3000K/ | 1400LM | 80Ra | L900*Φ26 |
| 4500K/ | ||||||||
| 6500K | ||||||||
| MS-T8-1.2M | 20W | SMD2835 | 96pcs | AC85-265V | 3000K/ | 2000LM | 80Ra | L1200*Φ26 |
| 4500K/ | ||||||||
| 6500K | ||||||||
| MS-T8-1.5M | 24W | SMD2835 | 120pcs | AC85-265V | 3000K/ | 2400LM | 80Ra | L1500*Φ26 |
| 4500K/ | ||||||||
| 6500K | ||||||||
| MS-T8-2.4M | 36W | SMD2835 | 192pcs | AC85-265V | 3000K/ | 3600LM | 80Ra | L2400*Φ26 |
| 4500K/ | ||||||||
| 6500K |
Applications
1. Instead of the indoors ceiling light.
2. School/Universities/Hospital.
3. Conference/Meeting room,Show Room.
4. Commercial Complexes.
5. Factories/Offices.
6. Super markets.
7. Residential/Institution buildings.
Packaging & Shipping
Standard export packing, color box or neutral white box
