e27 e40 aluminum smd led corn 100 watts led corn lamp AC85-305v
e27 e40 bases
aluminum Material smd chips
led corn 100 watts
led corn lamp AC85-305v
- Description
- Contact From
e27 e40 aluminum smd led corn 100 watts led corn lamp AC85-305v
MINSENS LED Corn lamp, is an excellent energy-efficient replacement to retrofit a wide variety of traditional light fixtures. With an efficacy of 110-130lM/w, the LED corn light can replace standard Incandescent, HPS, MH, MV and CFL bulbs in both new and retrofit fixtures for significant energy savings. It’s easy to bypass the ballast, screw in the new LED lamp. Available from 30watts to 150 watts. MINSENS LED Lighting,80w led corn bulb,3000K color,over 10000Lm output Mogul base
Features
1. We have CE RoHS FCC PSE certificate. There are no poisonous materials to human body or environment. Ensure your safety and health.
2. Suitable for applying at home, hotel, club, library, market, office, or other places.
3. The long life, long warranty, and various colors, comfortable and elegant, the best choice.
4. Dimmable available.
5. High brightness, low electricity consumption and color temperature.
6. Instant start, no flashing.
7. Low heat and power consumption, best energy saving, safe and efficient.
8. Environmental friendly, no UV and IR radiation and does not contain lead, mercury and other pollution elements.
9. Durable and energy-saving, long service life up to 50,000 hours.
10. High sensitivity, high bright and low consumption.
11. Designed to fit standard E27 fittings, easy to install.
12. Suitable for corridor, pathway, stair, garage, garden, yard, etc.
specifications
The Specification of led corn light | |||||||
Item No. | MS-CNL-30W | MS-CNL-40W | MS-CNL-60W | MS-CNL-80W | MS-CNL-100W | MS-CNL-120W | MS-CNL-150W |
Power Consumption | 30W | 40W | 60W | 80W | 100W | 120W | 150W |
Replace HID Lamp | 150-200W | 200-300W | 300-450W | 400-600W | 600-1000W | 800-1000W | 1000-1500W |
Dimension/Heat sink | 93*195MM | 93*195MM | 93*205MM | 93*229MM | 93*241MM | 93*265MM | 93*338MM |
Weight | 0.5kg | 0.5kg | 0.55kg | 0.55kg | 0.7KG | 0.74KG | 0.76KG |
Lumens | 3000-3200LM | 3500-4400lm | 6000-6600LM | 8000-8800LM | 10000-11000LM | 12500-13200LM | 15700-16000LM |
Base | e40 e27 e39 e26 or hook | ||||||
Lumous flux | 80~100lm/W | ||||||
Power Factor | ≥0.95 | ||||||
LED Power Supply | Mean Well driver or High quality driver | ||||||
AC Input | AC85 – 305V (AC 277V or 375V available on request) | ||||||
DC Input | DC80~400V (DC12V, DC24V and other input available on request) | ||||||
LED Light Source | Macro / Bridgelux / Epistar 5730 SMD | ||||||
Color Temperature | 2700~6500K | ||||||
Beam Angle | 360° | ||||||
Color Rendering Index | ≥80 | ||||||
Working Life | ≥50000Hrs | ||||||
Working Temperature | -20℃~60℃ | ||||||
Housing | Copper Free Aluminum | ||||||
Warranty | 3 Years | ||||||
Brand of Products | MS& Customized | ||||||
Certificate | CE, ROHS | ||||||
OEM | accept |

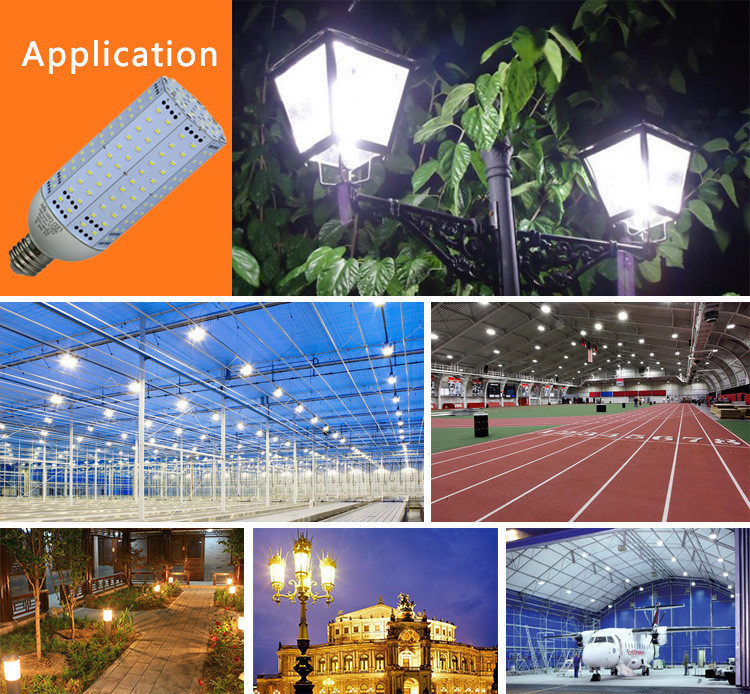

Applications
1. Read the user’s manual in details, make sure the environment conditions fit the requests
2. Cut the power off before installation
3. Do not run e40 led corn light over 300VAC unless it’s labeled.
4. Do not install this bulb in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor,Outdoor use in outdoor luminaires (minimum Ip65)
6. Don’t throw away casually

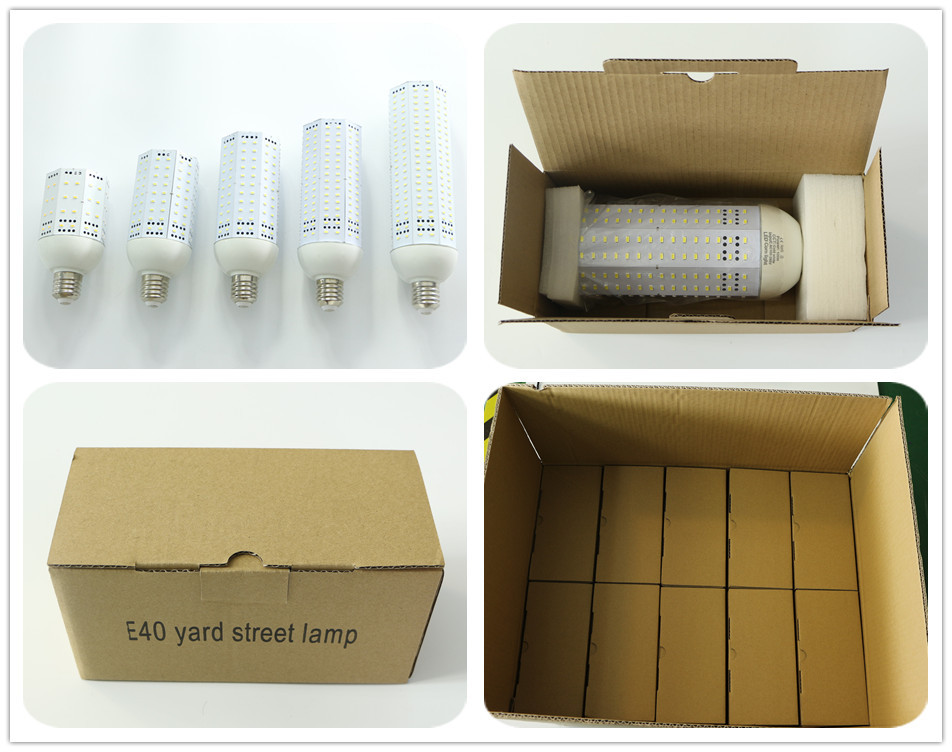

Packaging & Shipping
Standard export packaging
