LED Street Light ETL DLC ROHS IP66 Waterproof 100w 120w 150w 200w 300w High Power LED Street Light 150w

50W 100W 150W 200W 250W 300W

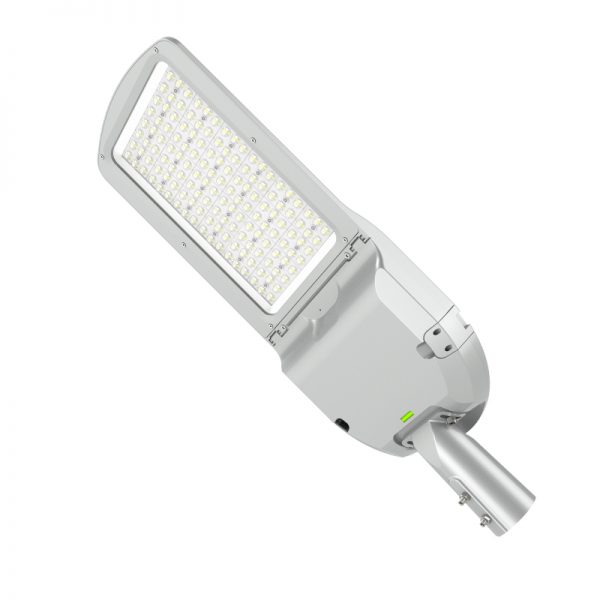

IP66 LED street light 150W
For road lighting
Outdoor led street light

Description

LED Street Light ETL DLC ROHS IP66 Waterproof 100w 120w 150w 200w 300w High Power LED Street Light 150w



Features

Die-casting Aluminum Radiator
Used in Die Casting Aluminum, through professional anodic oxidation,polishing,sandblasting processing,no rust do not fade,good corrison resistance and crack resistance

Imported LED Chips
Imported original LEDs,with high lumen efficacy,energy saving and better illumination effect. LM-80 report approved and Light decay is small, 3% per year. Ra>80. PF>0.95. 50000 Hours.

Street light mounting caliber

Two mounting calibers are available, one is straight-through and the other is rotary. The diameter of light caliber is 40-60mm.

-Driver:PF≥0.90, THD<20%, Non-Flicker
-LED Source: SMD2835, CRI>70, LM80 -Lumens: 130LM/W
-Beam Angle: Type II/III/IV/V -Shell Material: Black Aluminum Body
-Colour Temperature: 3000K/4000K/5000K/5700K +5%
-Warranty: 5 Years -Certification: UL certification,FCC certified, CE certified, RoHS certification
-Waterproof Grade: IP66
-Model No. Description:
DNN (No function)
DMM (Dimming function)
DSN (Sensing function) DSN (Sensing+Dimming function)



specifications



Model ST-SL-7LS
Wattage 50W/100W/150W/200W/300W
Luminous Flux 130LM/W / 150LM/W 170LM/W
Beam Angle 60°/90° 30°/60°/90°/120°/T2/T3/T4
LED Brand CREE 3030 PHILIPS LUMILEDS
Color Temperature 2700K-6500K
Input Voltage AC100-277V, 50-60Hz
Life Hours 50,000
CRI Ra>70
PF >0.9
Surge Voltage 4KV; 10KV/20KV optional
Hole Size Of Adapter φ40/50/60mm
IP Rating IP66



Details

Applications

Outdoor led street light used for Highway,Garden,Road,Street,Courtyard,Community,etc.



Packaging & Shipping

Standard export packaging
