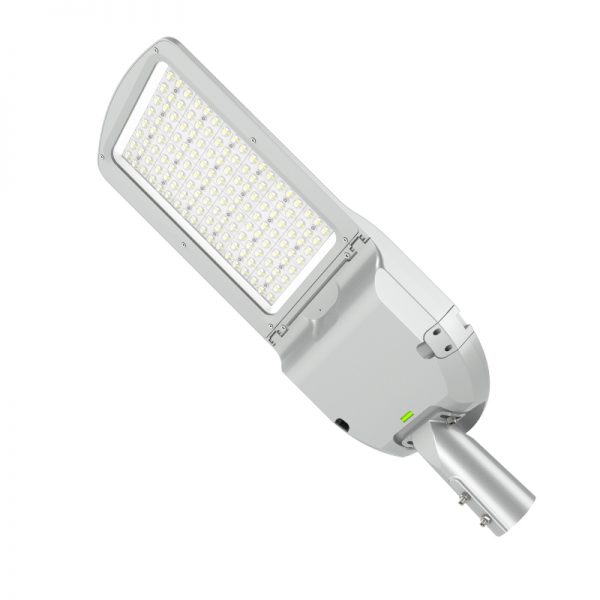

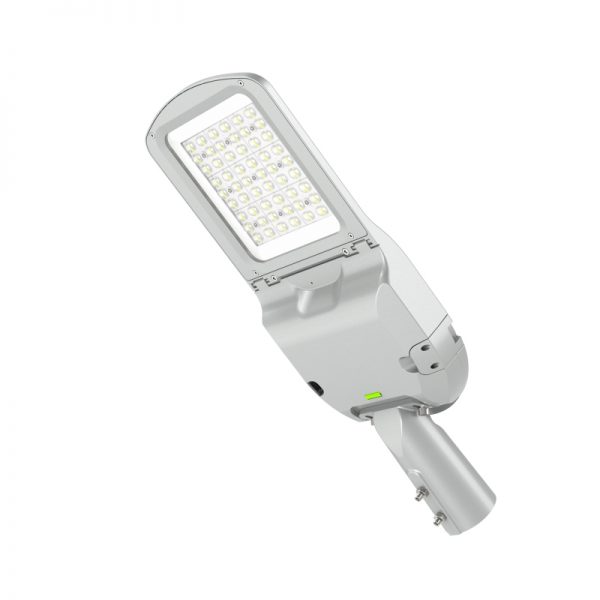

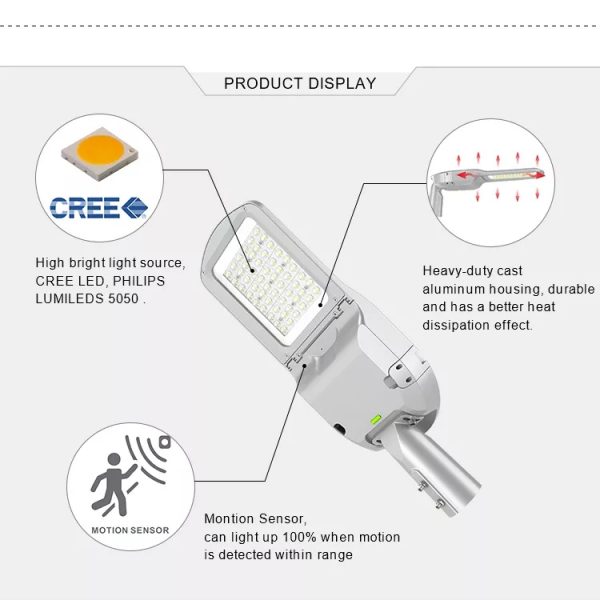

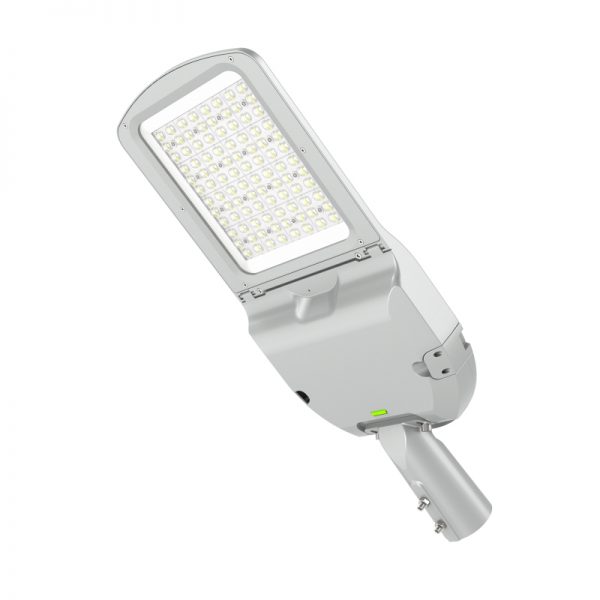

25W to 300W 150lm/w easy maintenance high efficiency IP66 outdoor led street light
25W to 300W
easy maintenance
For road lighting
IP66 outdoor led street light
- Description
- Contact From
Description
25W to 300W 150lm/w easy maintenance high efficiency IP66 outdoor led street light
Features
Patent private mould, integrated die-casting AL.
High efficiency, 130-170lm/w available.
Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M.
0-10V dimming/time control/light sensor/IOT control available.
Flat honeycomb design, good heat dissipation.
Gradienter design: easy for horizontal installation.
Snap-on type installation, tool-free disassembly
Tempered glass panel, no glue fixed
IP66
Mechanical specifications
LED Driver Meanwell/Moso/Sosen/Inventronics
Housing Processing Die-casting
Material ADC12
Environmental Temperature
Temperature Operating Range -40℃~50℃
Humidity Operating Range 20%~95%
Storage Temperature Range -40℃~75℃
Storage Humidity Range 10%~80%
specifications
| Model | ST-SL-7LS | |
| Wattage | 50W/100W/150W/200W/300W | |
| Luminous Flux | 130LM/W / 150LM/W | 170LM/W |
| Beam Angle | 60°/90° | 30°/60°/90°/120°/T2/T3/T4 |
| LED Brand | CREE 3030 | PHILIPS LUMILEDS |
| Color Temperature | 2700K-6500K | |
| Input Voltage | AC100-277V, 50-60Hz | |
| Life Hours | 50,000 | |
| CRI | Ra>70 | |
| PF | >0.9 | |
| Surge Voltage | 4KV; 10KV/20KV optional | |
| Hole Size Of Adapter | φ40/50/60mm | |
| IP Rating | IP66 | |
Details
Applications
Outdoor led street light used for Highway,Garden,Road,Street,Courtyard,Community,etc.
Packaging & Shipping
Standard export packaging
