5 years wararnty integrated design led street light 30W with CE ROHS FCC IP65 Listed

Description

5 years wararnty integrated design led street light 30W with CE ROHS FCC IP65 Listed



Features

1. Prospective design, Performance excellence;
2. High cost-performance, Solution for street light replacement;
3. With two specifications of the light pole’s back cover: Dia60mm and Dia40mm.
4. Multi Power Selection, Total 6 Models from 30W to 150W as option, Integrated design of driver box and arm, the whole aluminum lamp is able to heat dissipation

High strength aviation use aluminum heatsink, it can withstand level 17 hurricane force;
Super transparent tempered glass, light transmittance was 98%, no glare;
A full set of stainless steel fasteners, convenient installation, free maintenance;
Adopted quick plug type electrical connection in the design; maintenance more convenient and safe;

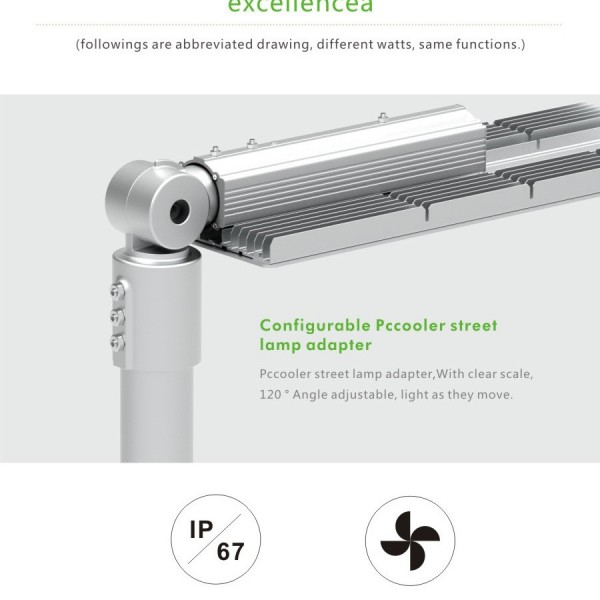

Adjustable lamp holder to meet with illumination area different requirement;



specifications

Item Number	Power	Product Size	Input Voltage	Beam Angle	Efficiency	Packing Size	GW
MS-SLD-30W	30w	365.8*135.0mm	85-265VAC	140×70°	100-140lm/w	42*19*15cm	2.2kg
MS-SLD-30W	40w	365.8*135.0mm	85-265VAC	140×70°	100-140lm/w	42*19*15cm	2.2kg
MS-SLD-30W	60w	431.3*160mm	85-265VAC	140×70°	100-140lm/w	48*22*15cm	2.7kg
MS-SLD-30W	90w	431.3*160mm	85-265VAC	140×70°	100-140lm/w	48*22*15cm	4.1kg
MS-SLD-30W	120w	637.1*215mm	85-265VAC	140×70°	100-140lm/w	69*27*15cm	4.2kg
MS-SLD-30W	150w	637.1*215mm	85-265VAC	140×70°	100-140lm/w	69*27*15cm	5.8kg



Details



Applications

Highway, square, urban roads, rural roads, airports, subways, tunnels, overpasses and other outside lighting required places



Packaging & Shipping

Standard export packaging
