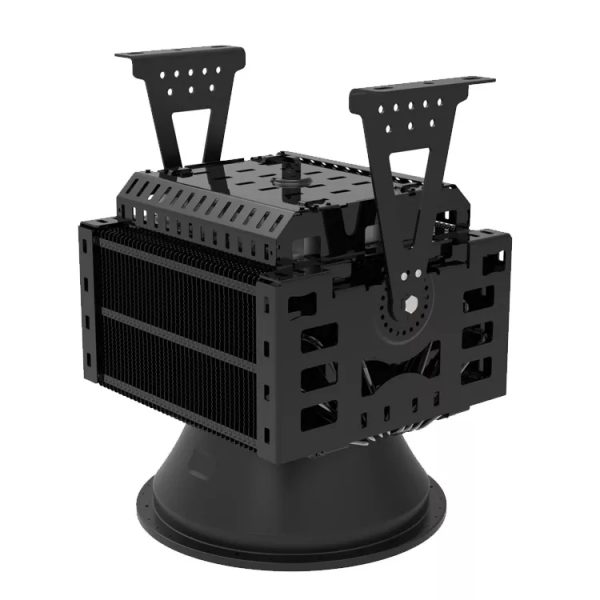

Led Spotlight 1000w For Tower Crane And Stadium Lighting 800W 1000W 1500W
800w 1000w 1500w
high power led spotlights
High pole lights, stadium lights
For docks, buildings, plazas, tower cranes
- Description
- Contact From
Led Spotlight 1000w For Tower Crane And Stadium Lighting 800W 1000W 1500W
Fins adopts special aluminum material for aviation, through the buckle piece of technical process.
Is mode of pure copper tube after fins pipe process, closely joint (ins heat pipe technology.
Glass croft, adopt high steel processing, light tronsmittonce Os high as 93%.
The overall adopt stainless steel rust screws.
Fixed brocket adopt aluminum alloy and widen the bold, has the wind resistance, resistant to Corrosion etc.
Specification
Model No. | MS-SDL-800W | MS-SDL-1000W | MS-SDL-1500W |
Power(W): | 800 | 1000 | 1500 |
Output Lumen(lm): | 112000 | 140000 | 210000 |
Voltage: | AC90-305V | ||
LED Brand: | CREE | ||
Diver Brand: | MEAN WELL Driver | ||
Heat Sink: | Die-casting aluminum FIN / Copper Heatpipe | ||
luminous efficiency: | ≥100lm/W | ||
CCT: | 2700-6500K | ||
Beam Angle: | 45°, 60° reflector | ||
PF: | >0.9 | ||
CRI: | >80 | ||
IP Rating: | IP65 | ||
Color of heat sink: | Black | ||
Working Temperature: | -40℃~60℃ | ||
Lifespan: | >50,000hrs | ||
Certification | CE RHOS | ||
Warranty: | 5 years |
Details
1.Three technical innovation
High power LED heat sink has perfectly replaced the traditional 800W to 1500W sodium lamp, this cutting edge innovation fills the gap in the led heat sink market.
Yahua Lighint LED’s four patented technologies: HDT, zipped-fin, compressed pipe making the high power LED heat sink lighter, easy to install, solid in structure, super heat dissipation.
Modular design, making power diverse, enriching product line.
2.Buckle FIN patented design
Heat pipe and massive aluminum fins cooling technology, efficiently reduce the temperature of LEDs and extend the lifetime of lamp.
Details
Applications
800w 1000w 1500w high power led spotlight Widely used In boat light, fishing light, sports venues, wharf, tower crane, golf courses, square
Packaging Details
1pcs/Carton Normal Packing (export packing) ,can be packed under the customers’ requirement.
