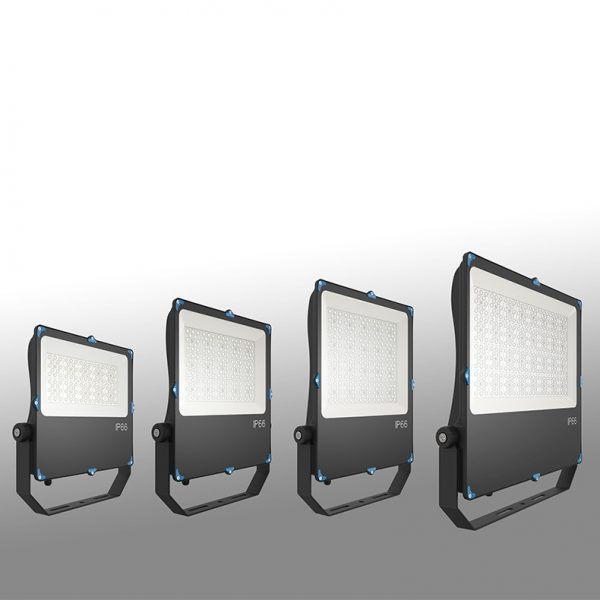

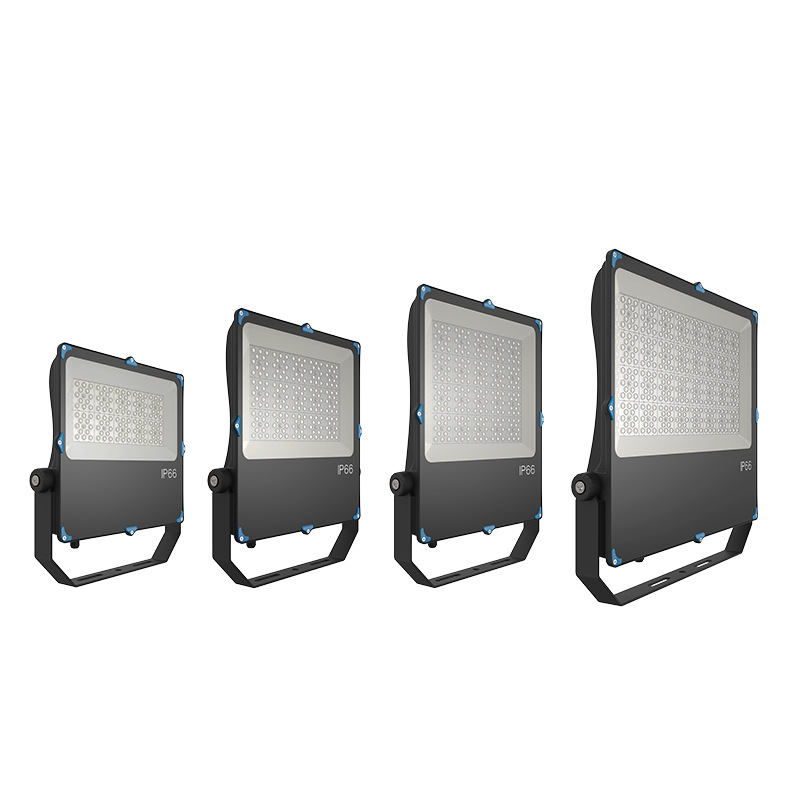

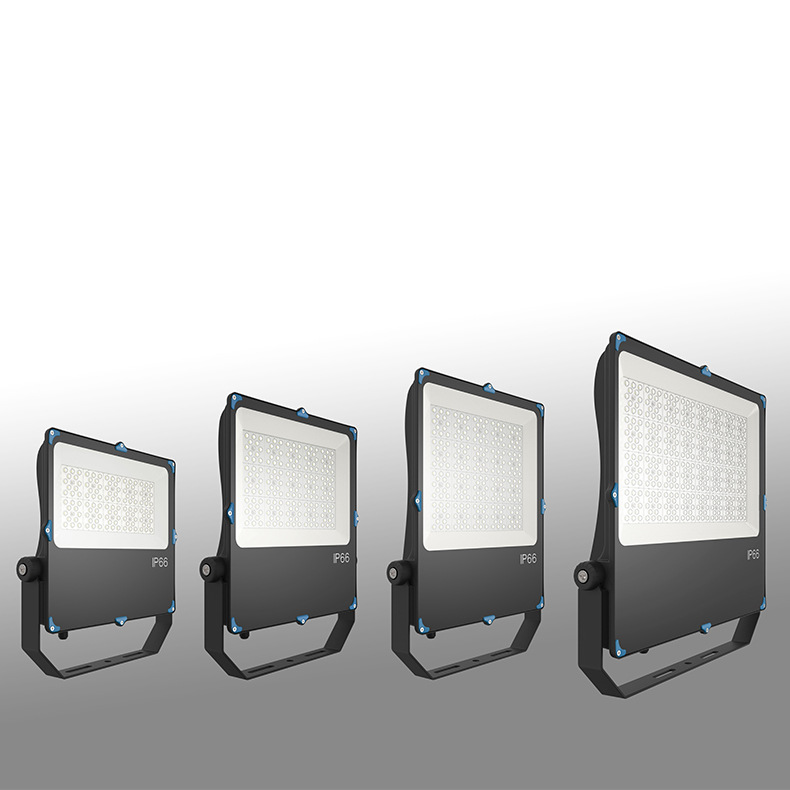

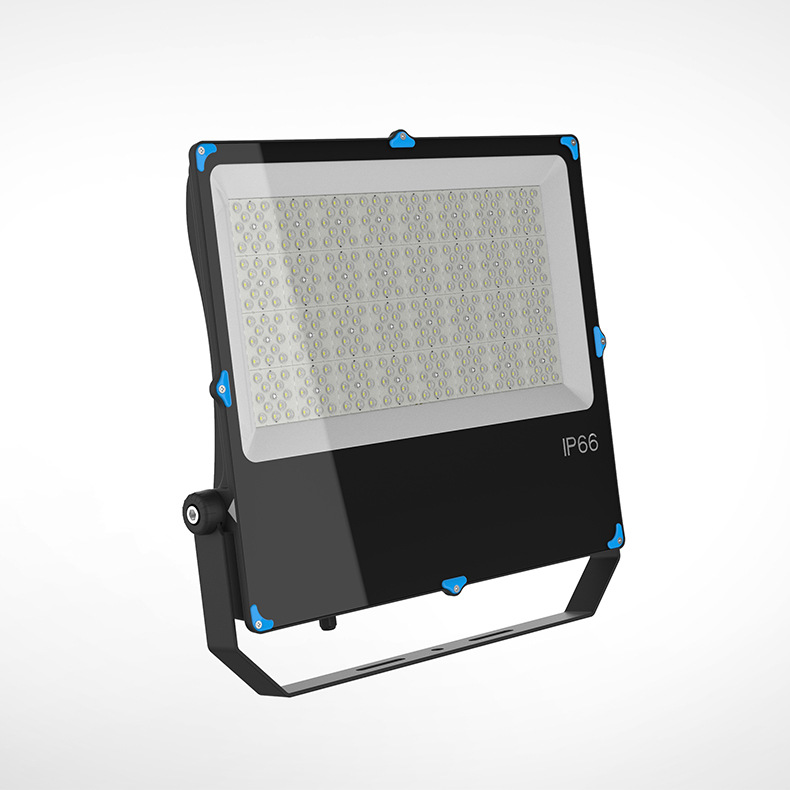

Aluminum Die-cast Powder Coating IP66 5 Years Warranty Landscape outdoor led flood light fixtures
Aluminum Die-cast
IP66
5 Years Warranty
Landscape outdoor led flood light fixtures
- Description
- Contact From
Aluminum Die-cast Powder Coating IP66 5 Years Warranty Landscape outdoor led flood light fixtures
Description

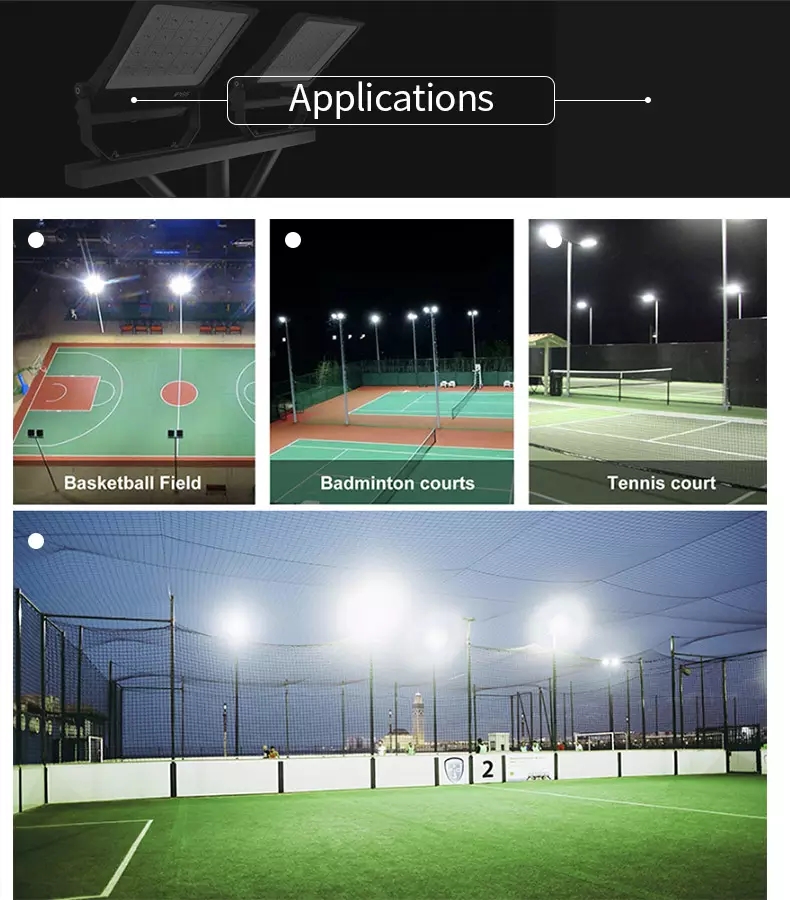

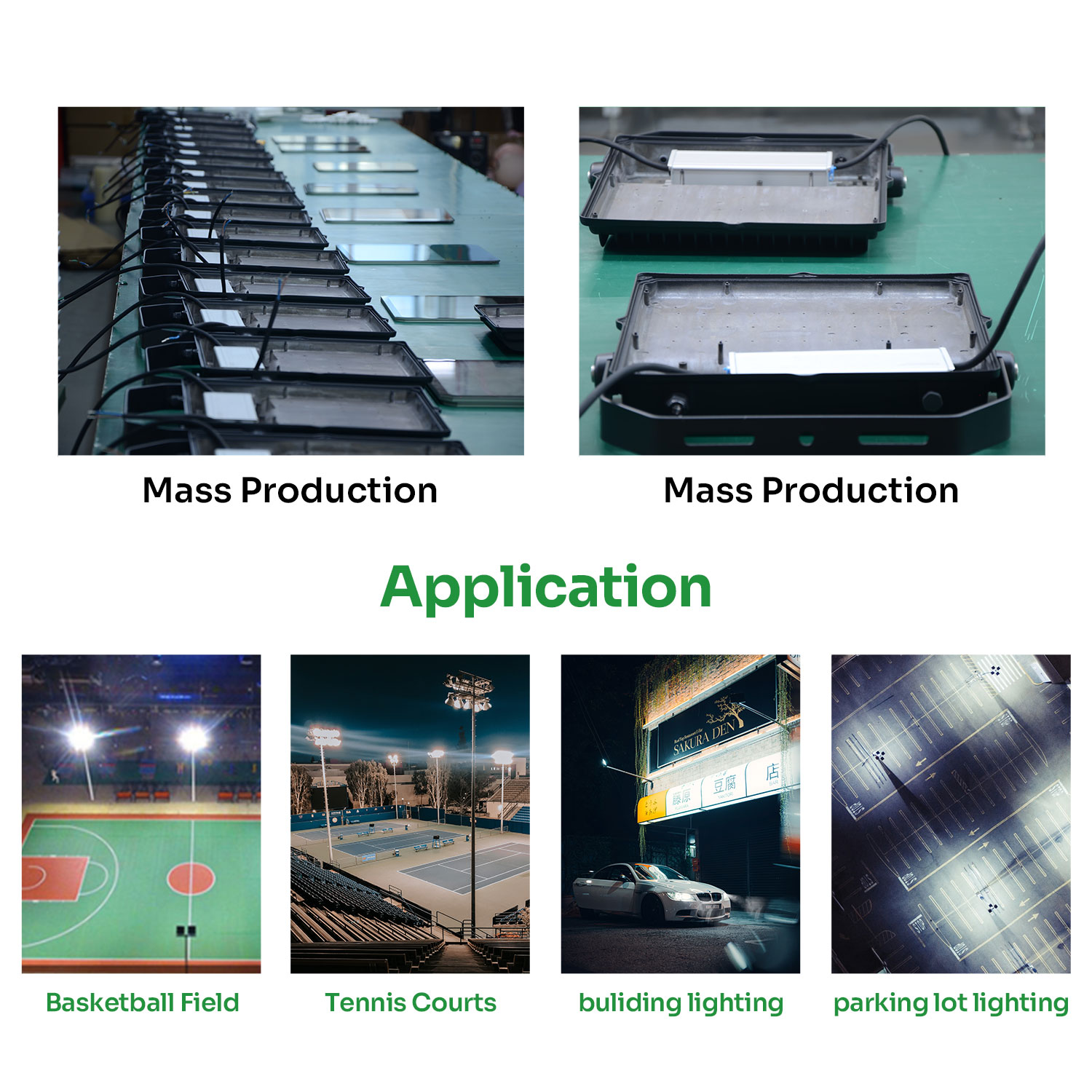

LED floodlights are mainly used in single buildings, exterior wall lighting of historical buildings, building interior and exterior lighting, green landscape lighting, billboard lighting, medical and cultural and other special facilities lighting, bars, stadiums, stadiums, squares , Railway stations, ships, construction sites, tower cranes, and other lighting.
* 9 Beam Angles design for sports lighting,7°/15°/ 30°/ 60°/ 90°/ 120° / 70*150° / 80*155 ° / 85*155°
* 120lm/w, 140lm/w or 160lm/w high efficiency solution
* Waterproof degree IP66

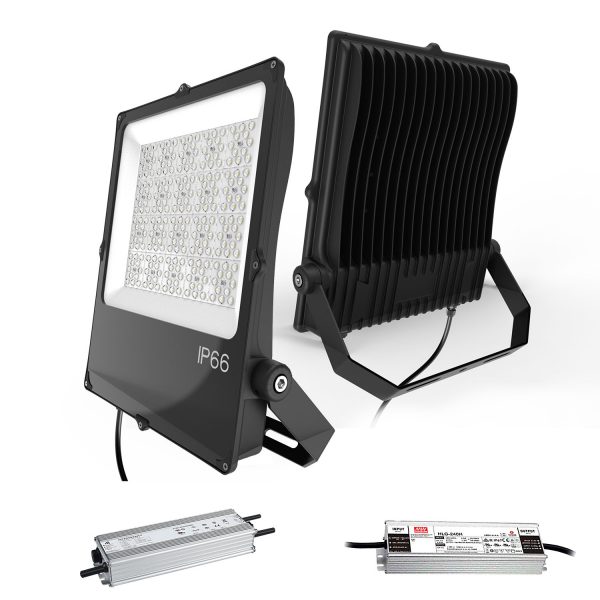

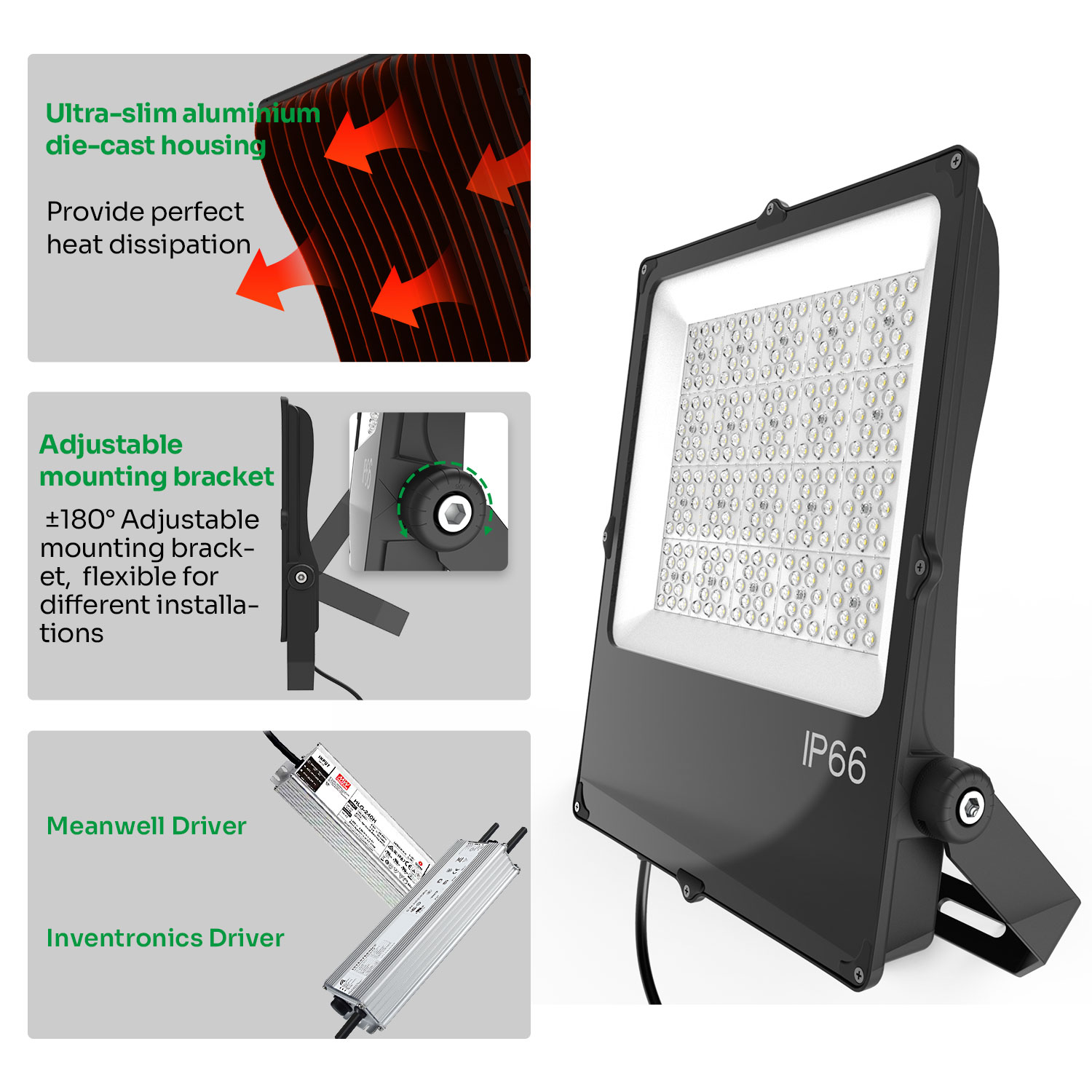

* Match with brand driver MW
* Can be used in parallel with multiple modules
Parameter
Model NO. | MFL-S10-1 | MFL-S20-1 | MFL-S30-1 |
NW/Size | 0.5kg/ 182*122*47mm | 1kg/ 242*169*51mm | 1.5kg/ 282*220*52mm |
Luminous Flux | >1300LM | >2600LM | >3900LM |
Packing | 395*270*290mm, 20pcs | 510*365*315mm, 20pcs | 465*305*315mm, 10pcs |
Model NO. | MFL-S50-1 | MFL-S80-1 | MFL-S100-1 |
NW/Size | 1.6kg/ 282*204*52mm | 2.3kg/ 337*269*52mm | 4.4kg/ 394*394*56mm |
Luminous Flux | >90000LM | >10400LM | >13000LM |
Packing | 465*305*315mm,10pcs | 588*360*315mm, 10pcs | 440*420*115mm |
Model NO. | MFL-S150-1 | MFL-S200-1 | MFL-S300-1 |
NW/Size | 5.4kg/ 445*392*56mm | 6.5kg/ 497*392*59mm | 10kg/ 503*545*64mm |
Luminous Flux | >19500LM | >26000LM | >39000LM |
Packing | 490*420*115mm | 540*420*115mm | 580*550*115mm |
Beam angle | 7°,15°, 30°, 60°, 90°, 120°, 70*150°, 80*155°, 85*155° degree optional | ||
IK | IK08 | IP Grade | IP66 |
CCT | 2700-6500k | PF Rate | >0.95 |
luminous efficiency | >130lm/W | CRI | >80 |
Life span | 50000h | Input voltage | AC85-305V |
Details

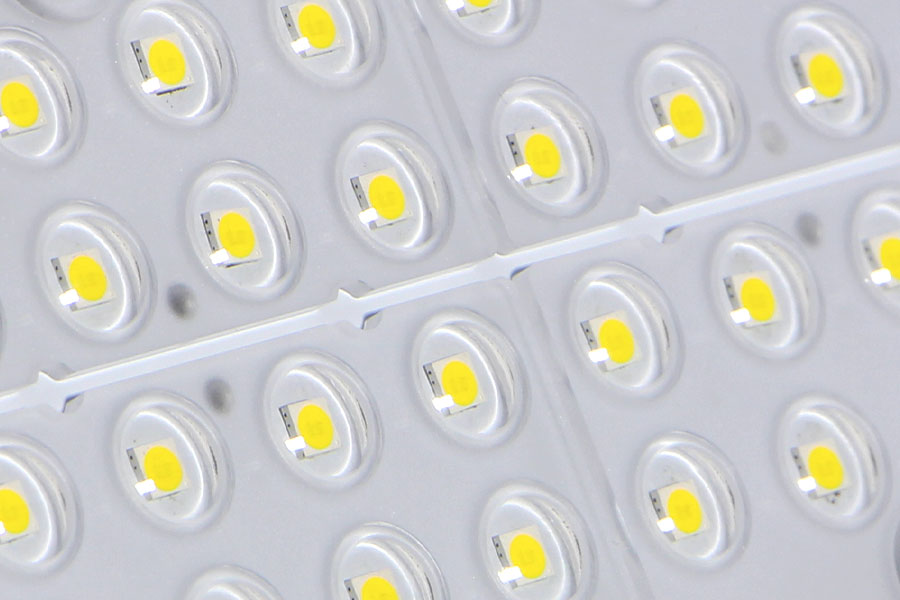

15°, 30°, 60°, 90°, 120°, 70*150°, 80*155°, 85*155° degree optional lens are available, meet professional light distribution
Low light decay to keep the better light performance
