solar led street light all in one street light integrated solar street light 12W

solar led street light
all in one street light
integrated solar street light 12W
3 years warranty


solar led street light all in one street light integrated solar street light 12W


Main Features

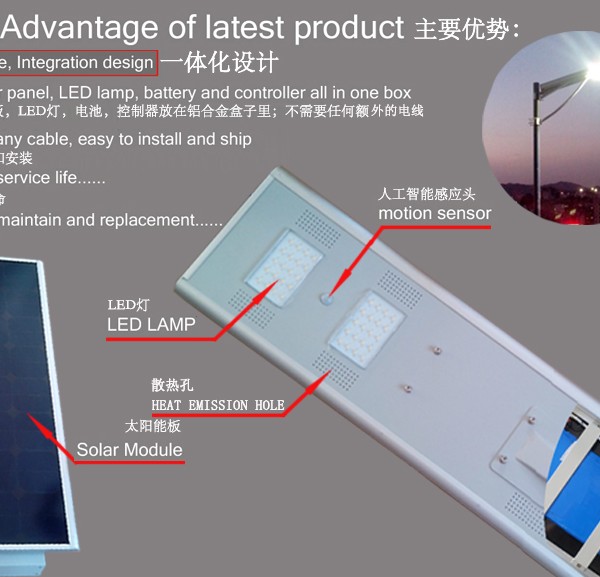

1. Integration design, easy to carry, put solar panel, LED lamp, battery and controller all in one, don’t need any cable,;
2. Installation is very convenient, use iron pole, wood pole, bamboo pole, plastic pole, wall, etc will be no problem, it will can reduce a lot of cost;
3. Using high capacity and long life of lithium iron phosphate battery,service life 5 years, can resist high temperature and low temperature, can ensure the long service life of the whole product;
4. Easy to maintain,the battery and light are the direct inserted & pluck type, can complete the main maintain by yourself in the future when the battery or light source need to be replaced, don’t need a professional personage to do maintenance.
5. Use alloy materials, waterproof, strong and durable.
6.with CE,ROHS and IP65 certificate.


LED solar light

Technological Parameter

Solar Panel Max Power 18v 20w(high efficiency monocrystalline silicon)
Life Time 25 years
Battery Type solar energy lithium battery
Life Time 5 years
LED Lamp(with sensor) Max Power 12V 12W
Led chip brand Bridgelux from USA with high brightness
Lumen (LM) 6000-6500lm
Life Time 50000hours
Viewing Angle 120°
Charge Time Strong Sunshine 6 hours
Discharge Time Full Power more than 16 hours(full power)
Saving Mode more than 45 hours (half power)
Working Temperature Range( ℃ ) -30℃~+70℃
Colour Temperature Range(k) 6000k
Mounting Height Range (m) 3-4m
Space Between Light Range (m) 8-10m
Lamp Material Aluminium Alloy
Certificate CE / ROHS / IP65
Warranty 5years
Packing & Weight Product Size 505*295*70mm
Product Weight 4.8KG
Packing Box neutral
Carton Size 570*350*135mm
Q’ty/ctn 1sets/ctn
GW.for Carton 5.8KG
Packs Containers 20′ GP230 pcs 800pcs
40′ GP 1600pcs


Packaging and Shipping
Packaging 1.Neutral box packaging, cartons and foam inside Corner, sponges and otherprotection, to ensure the safety of traffic.
2.We can pack the goods as per customers’ requirements. We can also customize the poly bag and carton with your own design and logo.
Shipping 1. Express: DHL, Fedex, UPS and TNT. It usually takes 3-7 days to your door
2. Airway: 7-10 days; suitable for big quantity and urgent lead time.
3. Seaway: 15-25 days; cheap but very slow



Parking Lot Lighting
Roadway Lighting
Street Lighting
Pathway Lighting
Ramp Lighting
Sidewalk Lighting
Private Road Lighting
Jogging and Bike Path Lighting
Perimeter Security Lighting
Farm & Ranch Lighting
Wildlife Area Lighting
Park Lighting
Campus Lighting
Boat Dock Lighting
Remote Area Lighting
Military Base Lighting

integrated solar street light 12W application

Trading Method

Trade Terms FOB, CIF, EXW
Payment terms T/T, Western Union, PayPal, Escrow, MoneyGram
Payment Condition 30% deposit in advance, 70% balance after delivery
Delivery Time 5-7 working days after deposit,3-4 working days for inventory
Packing Neutral Carton, Wooden case for large size
Shipping By sea, by air and by express delivery
