CE ROHS IP65 integrated solar street light with PIR sensor
CE ROHS IP65 approved
integrated solar street light
solar led street light
PIR sensor
- Description
- Contact From
Description
CE ROHS IP65 integrated solar street light with PIR sensor
Don’t need special pole
Pir and humen sensor
Sensor distance: 8-10 meter
Sensor time:immediately
When someone near this products.It will use full power ,when somebody left,it will use 1/3 power to work.And battery can supply 3-5 rainy days when it is full.
Main Features
1. Adopt imported Bridglux light source, high lighting efficiency high CRI, show true color
2. Adopt brand known constant current power supply, improve the reliability and security of the products
3. Adopt high light transmittance PC cover, without flare and luminous evenly
4.No need special pole to support it,Easy installment and transportation
5.Advanced heat dissipation design, protection class IP65
6.High energy conservation and environmental protection, long life span, more than 50000 hours
7.Foresighted design for the high bay light structure, with our own patent, free of dust and water, convenient for transport and installation and maintenance.
8.High Brightness with 95-100lm/w and available WW(2700-3200K)NW(4000-4500K)CW(6000-6500K) the surface electrostatic spray silver paint and the corrosion protection grade is WF2, with wide use.
9.Green and environmental protection, free of lead and mercury etc, no harm to the environment.
10.Dustproof,waterproof,anti-explosion

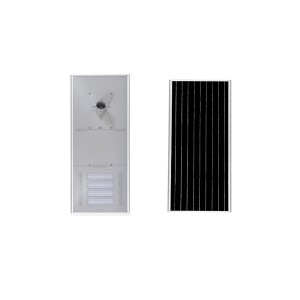

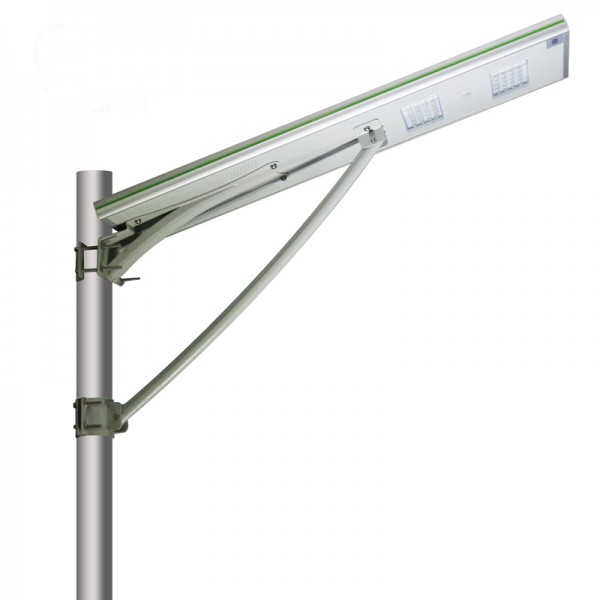

Pictures
Technological Parameter
Model | 8W | 12W | 15W | 18W | 20W | 25W | 30W | 40W | 50W | 60W | 80W |
Power of Solar Panel | 18V 15W | 18V 18W | 18V 25W | 18V 45W | 18V 50W | 18V 60W | 18V 60W | 18V 60W | 18V 80W | 18V 90W | 18V 110W |
Lifespan of Solar Panel | 25 years | ||||||||||
Material of Solar Panel | high efficiency monocrystalline silicon | ||||||||||
Brand of Solar Panel | Sunpower from USA | ||||||||||
Type of Battery | lithium battery | ||||||||||
Life time of Battery | 5 years | ||||||||||
Power of LED lamp | 12V 8W | 12V 12W | 12V 15W | 12V 18W | 12V 20W | 12V 25W | 12V 30W | 12V 40W | 12V 50W | 12V 60W | 12V 80W |
LED chip brand | Taiwan Epistar/Bridgelux USA | ||||||||||
Luminous flux (lm) | 800-880 | 1200-1320 | 1500-1650 | 1800-21600 | 2000-2200 | 2500-2750 | 3000-3300 | 4000-4400 | 5000-5500 | 6000-7000 | 8000-8800 |
Lifetime of LED lamp | 50000 hrs | ||||||||||
beam Angle-LED lamp | 120° | ||||||||||
Motion Sensor | yes | ||||||||||
without motion sensor -100% power output for first 3 hours and 50% power output for next 5 hours | |||||||||||
with motion sensor -100% power output (60s) if there is any motion and other time is 30% output | |||||||||||
Charge time by sun with enough shine | 5 hrs | 6 hrs | 6 hrs | 7 hrs | 7 hrs | 7 hrs | 6 hrs | 6 hrs | 6 hrs | 6 hrs | 6 hrs |
Discharge time | Between 2 and 3 consecutive rainy days in normal lighting | ||||||||||
Ambient temperature | -30 ~ +60 °C | ||||||||||
CCT (K) | 2800K-6000k | ||||||||||
mounting height (M) | 3-4m | 3-4m | 4-5m | 5-6m | 5-6m | 6-7m | 6-7m | 6-7m | 8-10m | 8-10m | 10-12m |
space between light pole(m) | 8-10m | 8-10m | 10-15m | 10-15m | 18-20m | 18-20m | 18-20m | 20-25m | 20-25m | 20-25m | 20-30m |
Material of Lamp | aluminium alloy | ||||||||||
Certificate | CE / ROHS / IP65 | ||||||||||
Warranty | 24 months |
Application
street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock lighting; sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.
Packaging | 1.Neutral box packaging, cartons and foam inside Corner, sponges and otherprotection, to ensure the safety of traffic. |
2.We can pack the goods as per customers’ requirements. We can also customize the poly bag and carton with your own design and logo. | |
Shipping | 1. Express: DHL, Fedex, UPS and TNT. It usually takes 3-7 days to your door |
2. Airway: 7-10 days; suitable for big quantity and urgent lead time. | |
3. Seaway: 15-25 days; cheap but very slow |
