factory warehouse 50w 100w 150w 200w led linear high bay lighting industrial led light fixtures high bay light

Aluminum housing
IP65 waterproof
Industrial warehouse lighting
30*70° / 60*90° / 60*120° / 70*140° Beam angle

Category: Tag:
  • Description
  • Contact From

factory warehouse 50w 100w 150w 200w led linear high bay lighting industrial led light fixtures high bay light



Features

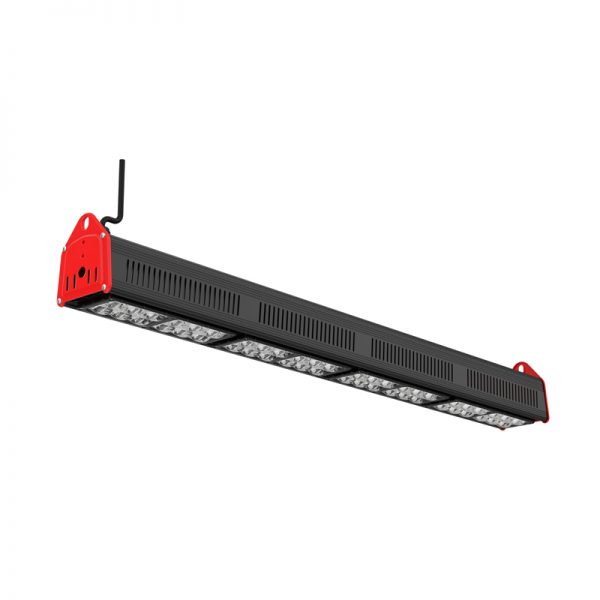

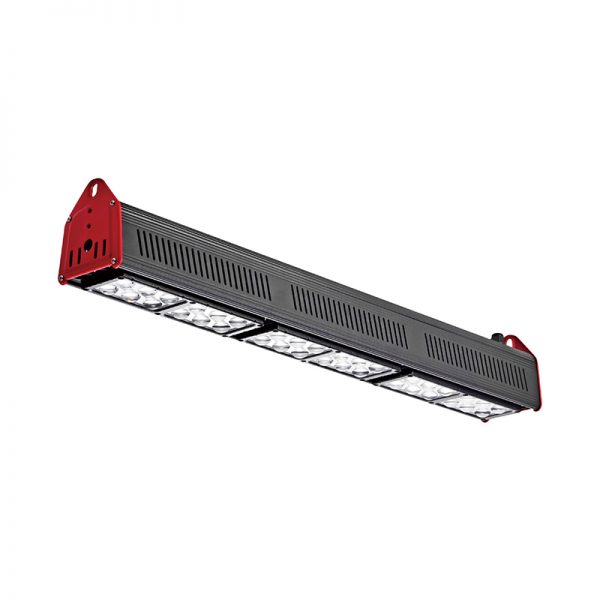

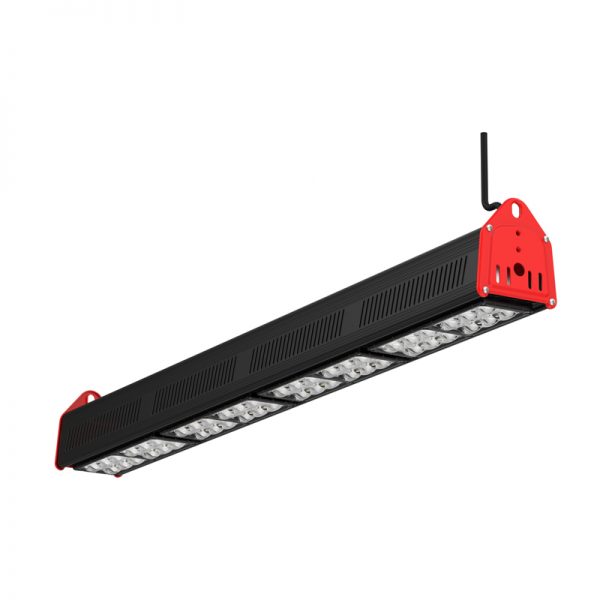

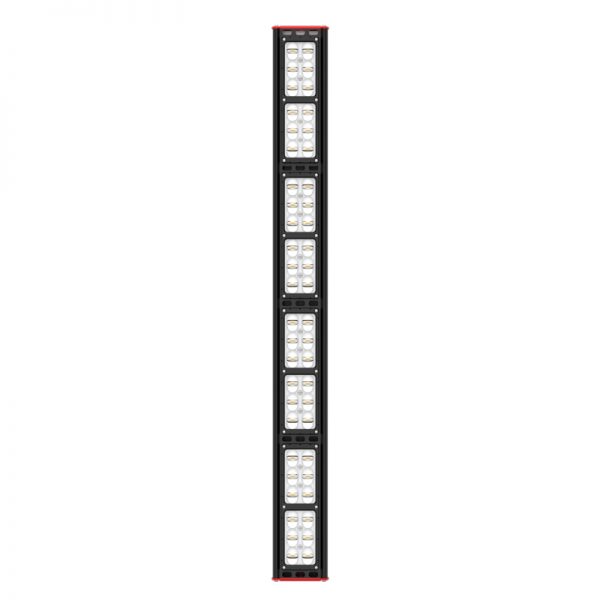

led linear high bay light



Using high brightness of original packed SMD 3030 chip which achieves 130lm/w
The lights are attractive black extruded aluminum fixtures with red end caps. IP65 rated for outdoor use.
Highly-efficient 150W replacement for 300W HID.
Symmetrical Angle: 30° / 60° / 90°
Polarization Angle : 30*70° / 60*90° / 60*120° / 70*140°

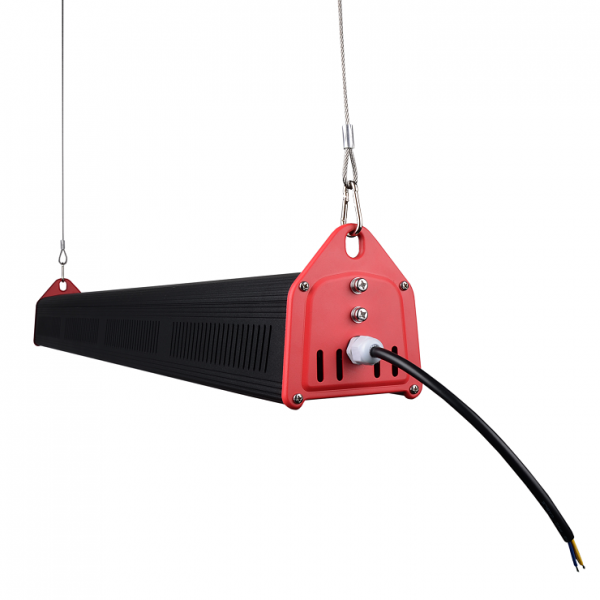

Chain hanging style and Ceiling/Wall Mount(rotatable).
No spot, no black area, long life span and less brightness decay.
Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 95%.
No magnetic disturbance influence and CE & RoHS standard compliant.
No UV and near-IR radiation in the light beam.
60 months warranty.





specification



Wattage 150W
Luminous Flux 19000 Lm
Light Source SMD 3030
LED QTY 168
Driver Power MEAN WELL ELG-150-48A MEAN WELL CLG-150-48A
Dimension 887*115*144mm   (34.92′ * 4.53′ * 5.67′)
Equivalent 300W metal halide / HID High Bay lamp Equivalent
CCT 3000K 4000K  5000K  5700K  6500K
Input Voltage 180-277VAC 100-277VAC
Power Factor >0.95
Cap Type Base Options:US,Europe,UK,Australia plug
optical lens Symmetrical Angle: 30° / 60° / 90°    Polarization Angle : 30*70° /  60*90° /  60*120° /  70*140°
Construction Retrofit fin aluminum+stainless steel
Installation Method Chain hanging style and Ceiling/Wall Mount(rotatable)
IP Rating IP65
CRI >80
Working Tempe / Humidity -45 to + 50 Deg C / @Ta=25 Deg C
Warranty 5 year Warranty
Rated Lifespan 50,000+ hours
Certified ETL cETL TUV CE RoHS SAA FCC PLC DLC Ctick certified



Details

linear high bay light

Applications



LED linear high bay light used for Workshop, Cold Storage, Facilities, Railway, Train Station etc.

Packaging & Shipping

Each led high bay is packed by Inner carton box+Outer carton box. General Packaging with Meansuns Logo. Neutral packaging or cusomterized package
