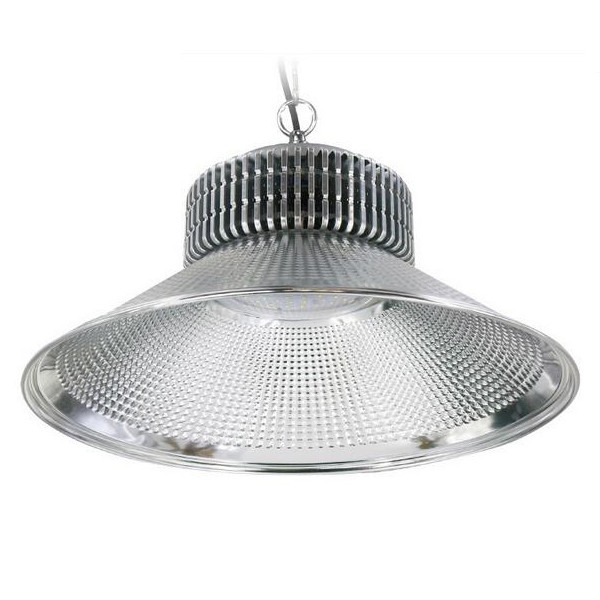

Pure aluminum 100w led high bay light With 3 years warranty

Pure aluminum
pure aluminum reflector
100w led high bay light
3 years warranty


Pure aluminum 100w led high bay light With 3 years warranty

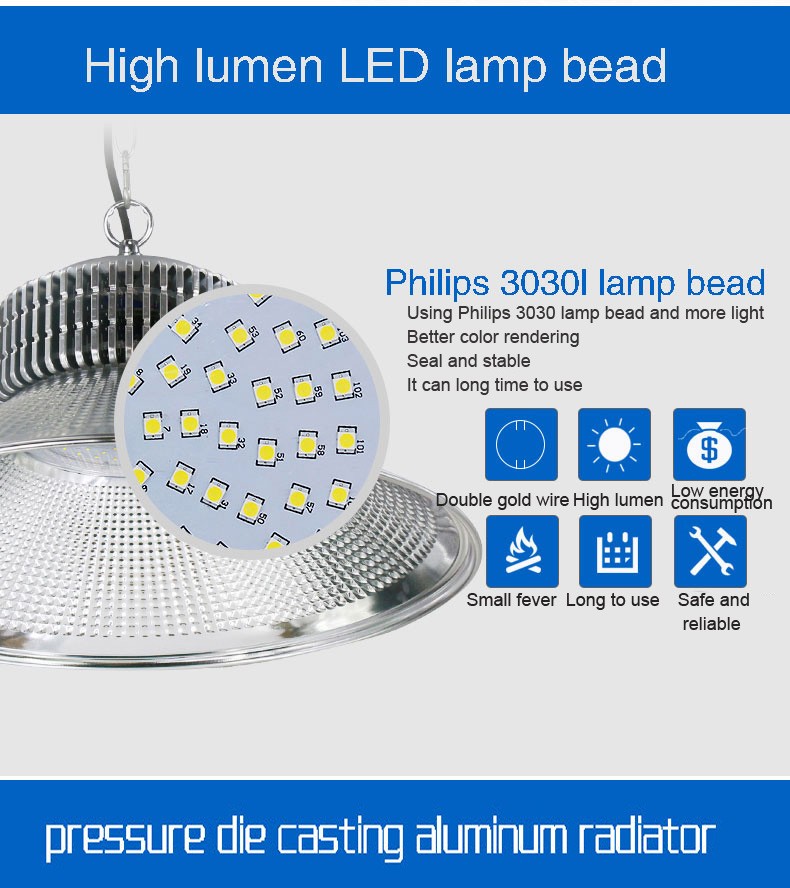

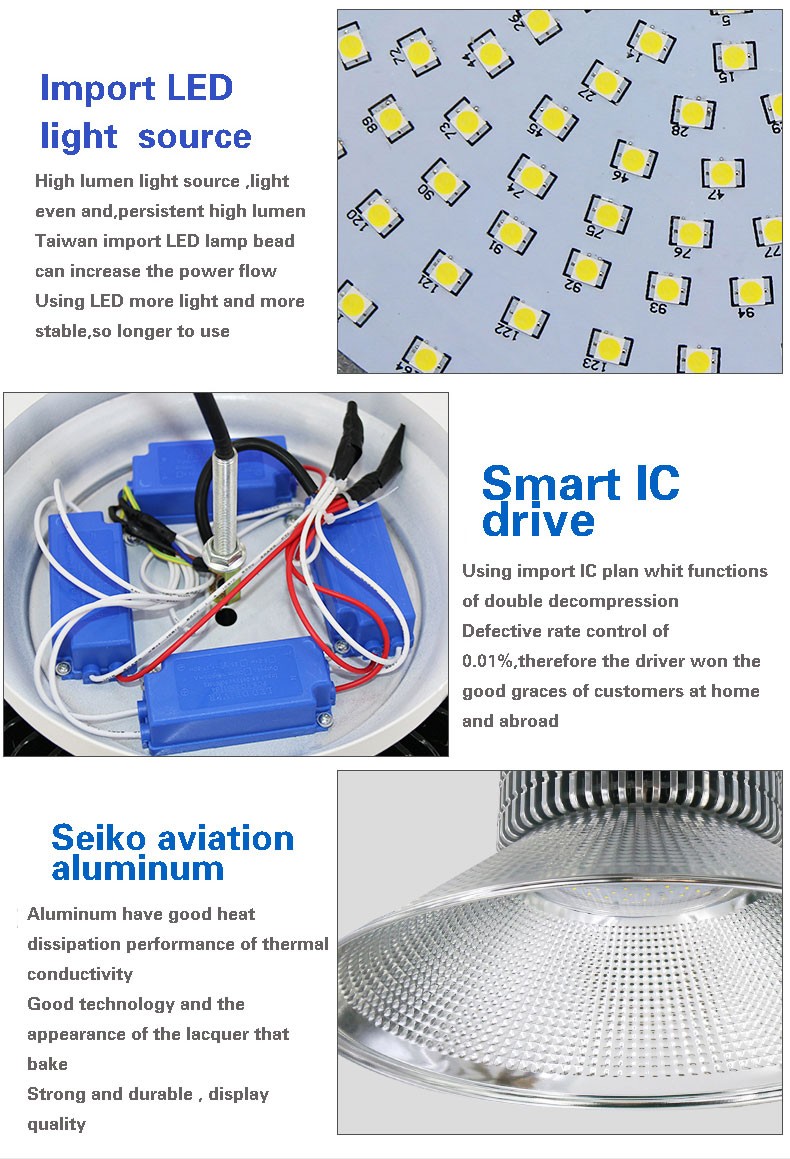

1.Led high bay high bay led lighting with Imported high lumens philips LED chip with constant-current power supply, energy efficient ,ensure the stable performance for a long time .

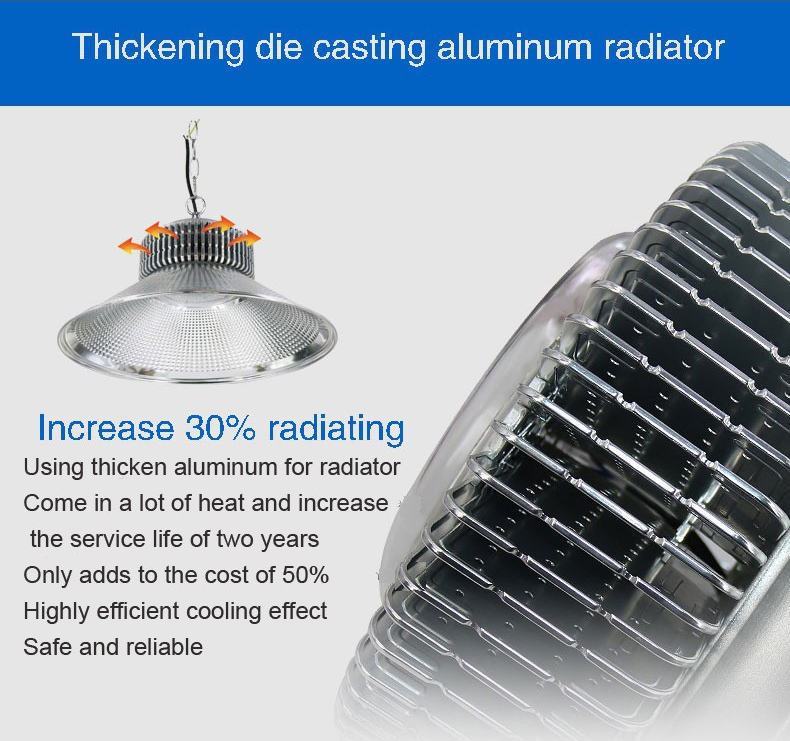

2. led high bay Lamp housing is high-quality aluminum ,fine workmanship, attractive appearance . heat dissipation performance is superior
3. Lamp surface treated with anodization, corrosion-resistant, artistic appearance
4. It has varies of colors to choose, which can meet the requirements in different environments.the warm white and pure white was recommended, working lifetime 50000-80000 hours
5. Easily and fastly installl or replace traditional lamp
6. Its working voltage (AC85V-265V) can overcome the electrical grid, noise pollution and unstable light caused by ballast
7. Corrosion, dust, water, and shake-resistant, no leakage or poison, green environmental protection
8. 3 caps for choice .


Technical parameters

The Specification of led high bay light
Item No. MS-HBC-70W MS-HBC-100W MS-HBC-150W MS-HBC-200W MS-HBC-300W
Powder Consumption 70W 100W 150W 200W 300W
Replace HID Lamp 150-200W 200-300W 300-450W 400-600W 600-1000W
Dimension/Heat sink Ø230x80mm Ø230x80mm Ø230x80mm Ø230x80mm Ø230x80mm
Package Size 515x515x280mm 515x515x280mm 515x515x280mm 325x325x325mm 325x325x325mm

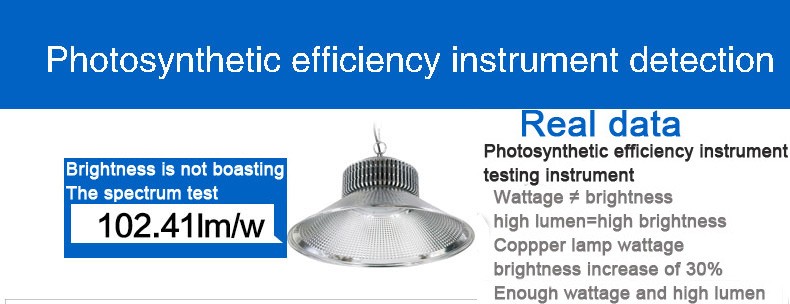

Lumous flux 80~100lm/W
Power Factor ≥0.95
LED Power Supply Mean Well driver or High quality driver
AC Input AC180~265V (AC375V available on request)
DC Input DC80~400V (DC12V, DC24V and other input available on request)
LED Light Source Macro / Bridgelux / Epistar
Color Temperature 2700~6500K
Beam Angle 60° / 60° / 120° available
Color Rendering Index ≥Ra80
Working Life ≥50000Hrs
Working Temperature -20℃~60℃
Housing Copper Free Aluminum
Warranty 3 Years
Brand of Products MS& Customized
Certificate CE, ROHS
Payment Terms By T/T , Western Union , Paypal etc
OEM accept



led high bay light(5) led high bay light(6) led high bay light(3) led high bay light(1) led high bay light(4)



1.led high bay light is always used for Stage, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Shopping Mall, Exhibition Hall, Dock, Highway Toll Station etc.
2. Factory,warehouse,stadium
3. Widely used for indoor .

led high bay light applications


Packaging & Delivery

Neutral packing, 1pcs/carton. Design as discussed with clients for led high bay

Embedded packaging, after 2 meters drop test
360-degree all-round protective packaging, 50KG the following impact without damage

led high bay light package
