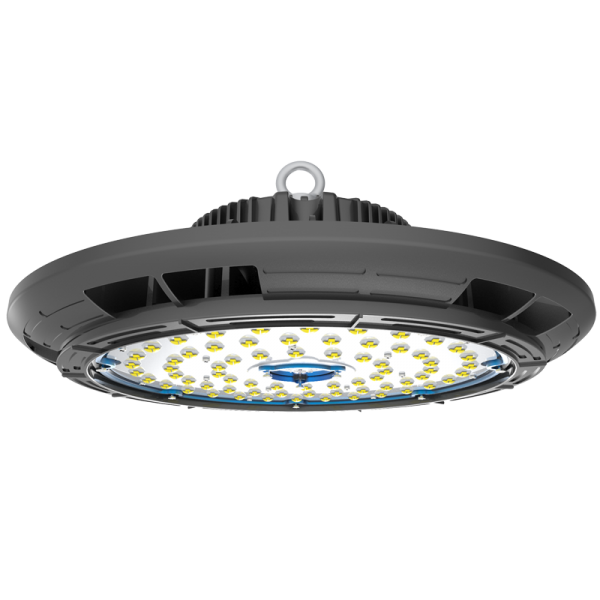

AC90V-305V outdoor indoor use round ufo led high bay light 240w

AC90V-305V input voltage
outdoor indoor use
round IP65 protection
ufo led high bay light 240w

Description

AC90V-305V outdoor indoor use round ufo led high bay light 240w

2017 the latest products
Luminous efficiency up to 165lm/w

Features

Economy is not equal to reduce the material
We invest the cost on technology instead of advertising, delete all the pointless decoration, excellent design of appearance.
* Install easily
* Disassemble easily
* Wide application

LOW GLARE NO DASSLING
We not only design the light, also design the illumination
Adopt SMD3030 LED chip
* High thermal conductivity
* Low lumen depreciation
* Even lighting output
Adopt the full circulation design heat sink
More blades for heat sink wider air interface.
Huitian brand thermal conductive silicone with high performance.
Energy saving, prolong its lifespan.
*High PFC
*Long lifespan > 50,000hrs
*Low carbon lead free

More stable of its performance longer lifespan
* Short-circuit protection
* Full seal
* High thermal conduction. silicone potting
* 100% full load aging test



specification

The Specification of ufo led high bay light
Item No. UFO-A5
Powder Consumption 240W
Replace HID Lamp 1000w-1500w
Dimension/Heat sink Ø380*58mm
Package Size 460x460x190mm
Lumous flux 165lm/W
Power Factor ≥0.95
LED Power Supply Mean Well driver or High quality driver
AC Input AC180~305V (AC375V available on request)
DC Input DC80~400V (DC12V, DC24V and other input available on request)
LED Light Source Philips 3030SMD
Color Temperature 2700~6500K
Beam Angle 60° / 90° available
Color Rendering Index ≥Ra80
Working Life ≥50000Hrs
Working Temperature -20℃~60℃
Housing Copper Free Aluminum
Warranty 5-8 Years
Brand of Products MS& Customized
Certificate ETL, TUV , SAA , CE, ROHS
OEM accept



UFO led high bay light explosion figure
ufo led high bay light (3)



Various installation methods
ufo led high bay light (2)



Applications

UFO LED High Bay Light can be widely use for
1 Factory
2 warehouse
3 workshop
4 storehouse
5 hangar
6 gym, stadium, exhibition hall
7 gas station, toll station
8 Parking garage
9 mall etc.

ufo led high bay light (4)



Packaging & Shipping

1. Packaging:
Radiator box(Each box 1)
2. Quantity:1pcs/outer carton
Outer carton:460x460x190mm,material:K=K
Net weight:3.1KG Gross weight:4.1KG
Size of radiator:Φ380x58mm

ufo led high bay light (1)
