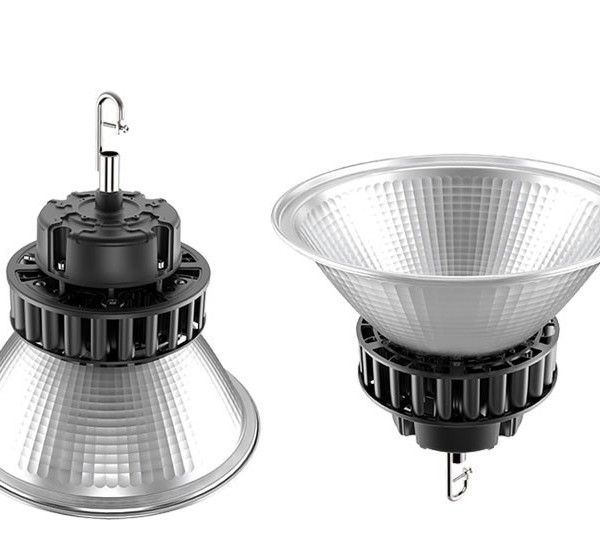

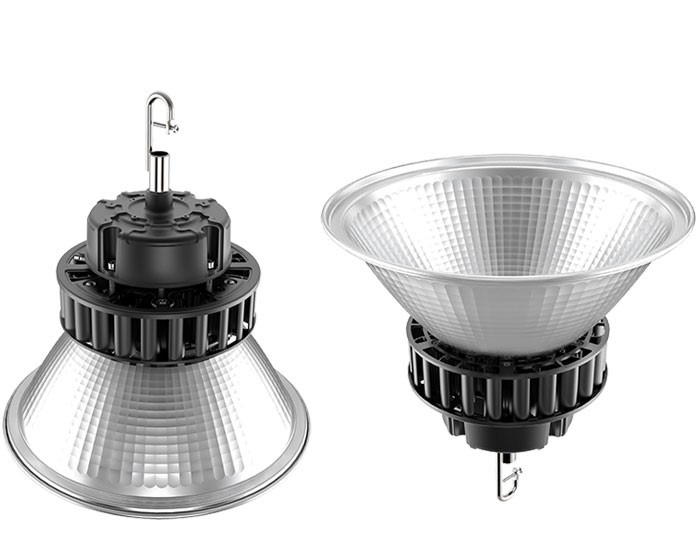

60w 80w 100w 150w 200w high bay led shop lights 5 years warranty
60w 80w 100w 150w 200w is available
AC180-305V input voltage
high bay led shop lights
5 years warranty
- Description
- Contact From
Description
60w 80w 100w 150w 200w high bay led shop lights 5 years warranty
Features
Different sizes refector option
25°60°90°100°110° totally six size of the scale-type reflector withch could effectively improves the lighting efficiency
The HDT technology

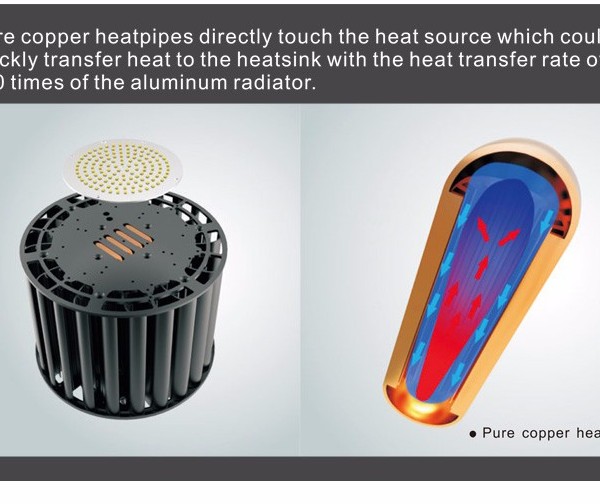

Pure copper heatpipes directly touch the heat source which could quickly transfer heat to the heatsink with the heat transfer rate over 200 times of the aluminum radiator
Thermal test
Ta: 31℃ Testing duration: 16hrs
Ave temp of PCB: 63 ℃
Ave temp of heatsink: 57.4 ℃
Ave junction temp of LED chips: 75.7 ℃
Ave temp of driver: 58.6 ℃
Technical parameters
| No. | Model | Power | Driver | Voltage | Chip optional | Beam angle optional | IP Rating | CRI | CCT | Material | Weight |
| 1 | MS-HBL-60W(115L) | 60W | Mean well | AC90-305V | Cree/Samsung/Philips | 25°/60°/90°/ | IP54 | ≥70 | 2700-6500k | Aluminum | 2.20 KG |
| /Nichia/Bridgelux | 100°/110° | ||||||||||
| 2 | MS-HBL-100W(115L) | 100W | Mean well | AC90-305V | Cree/Samsung/Philips | 25°/60°/90° | IP54 | ≥70 | 2700-6500k | Aluminum | 3.07 KG |
| /Nichia/Bridgelux | /100°/110° | ||||||||||
| 3 | MS-HBL-150W(115L) | 150W | Mean well | AC90-305V | Cree/Samsung/Philips | 25°/60°/90° | IP54 | ≥70 | 2700-6500k | Aluminum | 3.58 KG |
| /Nichia/Bridgelux | /100°/110° | ||||||||||
| 4 | MS-HBL-200W(115L) | 200W | Mean well | AC90-305V | Cree/Samsung/Philips | 25°/60°/90°/ | IP54 | ≥70 | 2700-6500k | Aluminum | 4.58 KG |
| /Nichia/Bridgelux | 100°/110° |

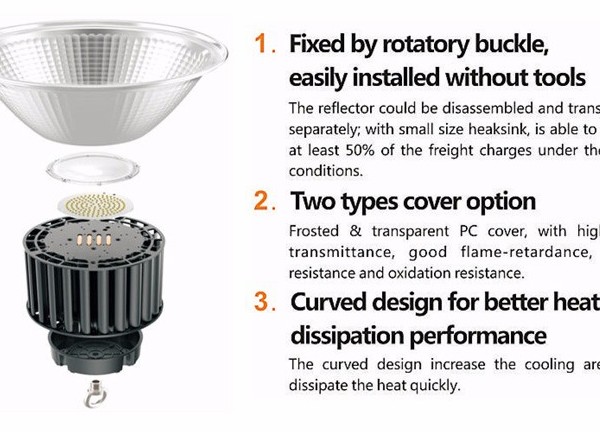

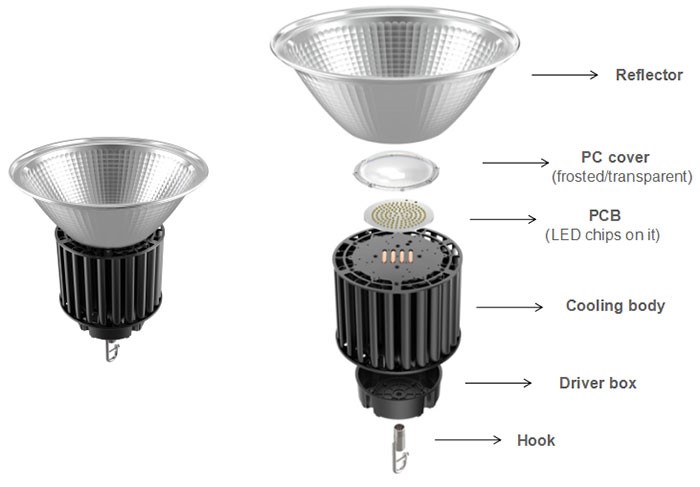

Details

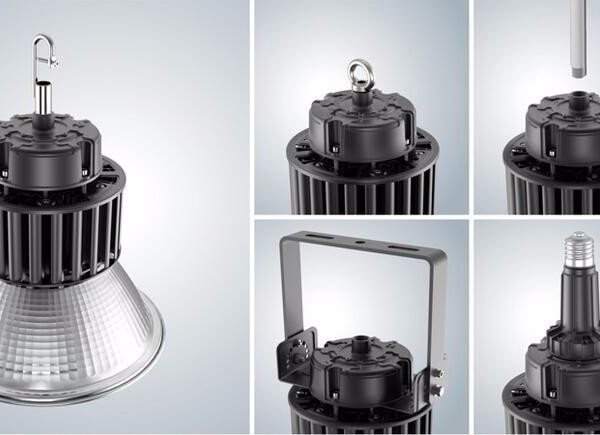

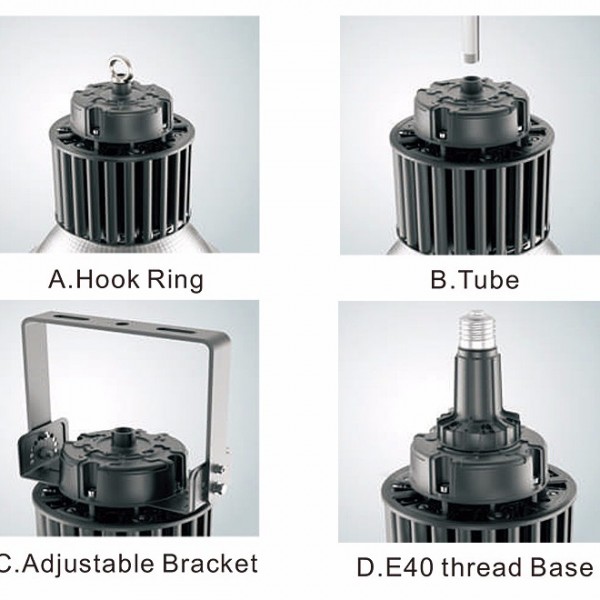

Five easy installation methods for led high bay light to adapt to the upgrading and replacement the traditional MH, HID lights.

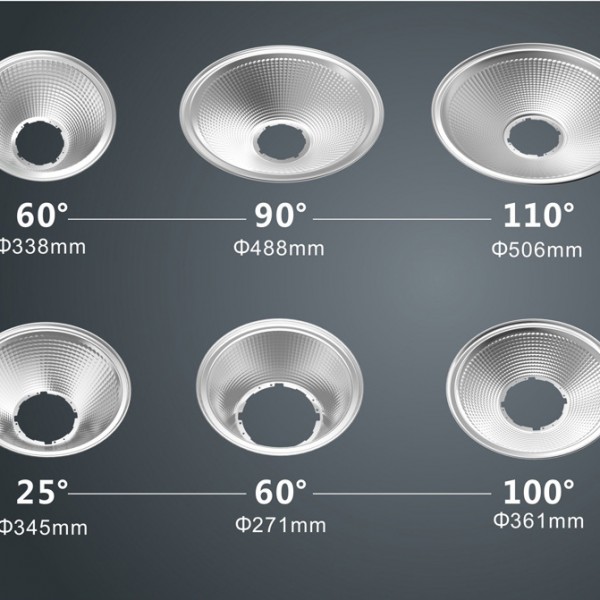

25°60°90°100°110°totally six size of the scale-type reflector which could effectively improve the lighting effiiciency

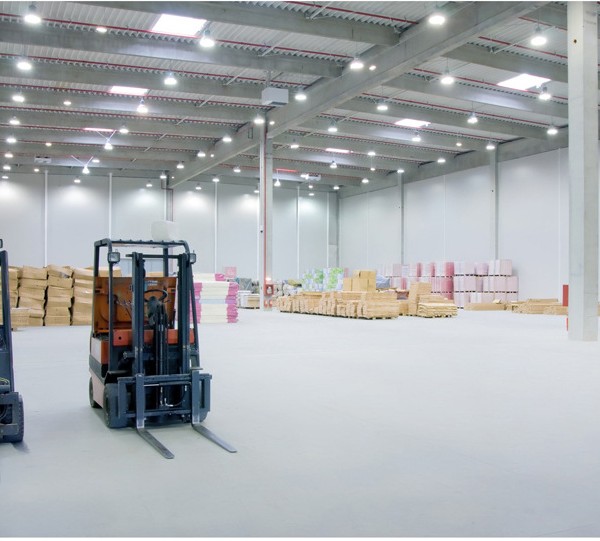

Applications
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room , Show Room
4. commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway
Packaging & Delivery
Neutral packing, 1pcs/carton. Design as discussed with clients for led high bay
Embedded packaging, after 2 meters drop test
360-degree all-round protective packaging, 50KG the following impact without damage
