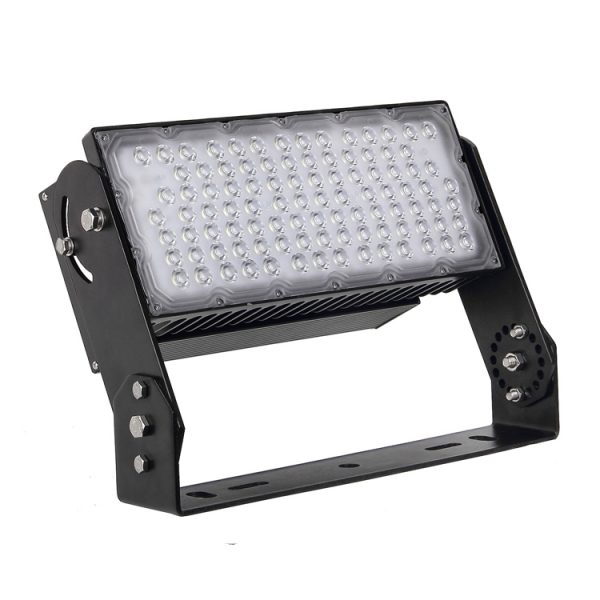

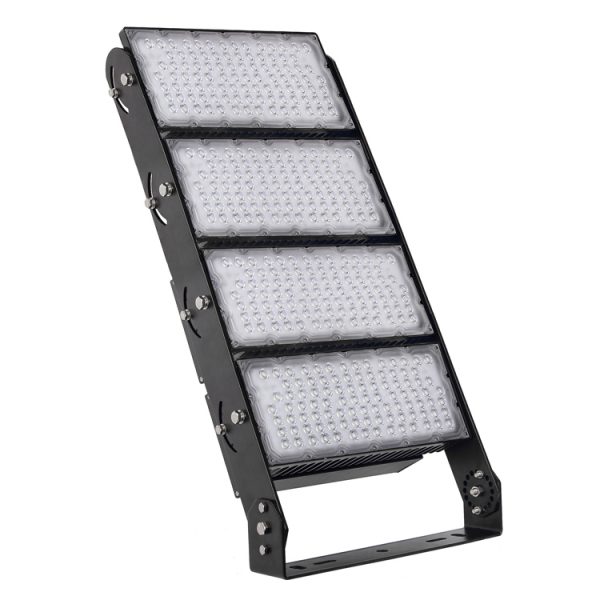

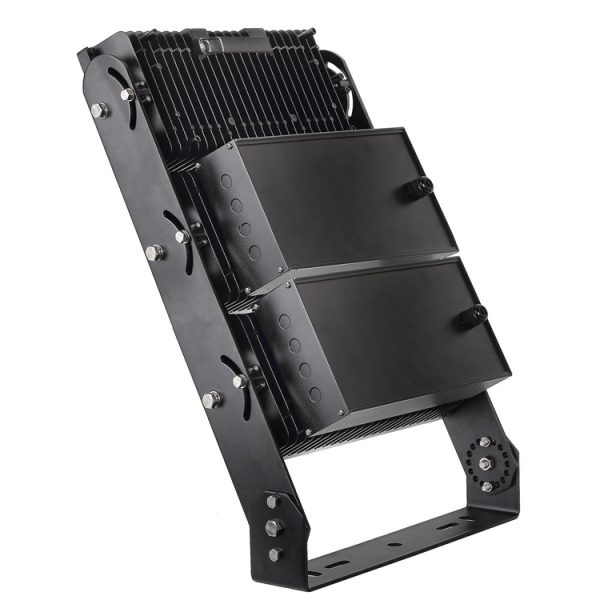

1000w Modular Led Stadium Light For Tennis Court Football Field Projector Lamp Led High Mast Waterproof Lights

Description

1000w Modular Led Stadium Light For Tennis Court Football Field Projector Lamp Led High Mast Waterproof Lights



Features



Meanwell LED Drivers, AC100V~277V, PF>0.98, THD<15%.
Lens 10, 25, 45, 60 degrees beam angles and excellent uniformity.
Ultra-low luminous decay <10% in 5 years. L70>50,000hrs.
Junction temperature<70°C, good heat dissipation provide longer lifetime.
Light transmittance of PC more than 93%.
Intelligent dimming system. 0-10V, DMX and DALI dimming models are available.
IP67 rating is applicable to outdoor environment.
Working environment in -35℃ to 65℃.
ETL / cETL / DLC / CE / RoHS / LM79 / LM80 / IES file is available.
50000 hours lifespan with 5 year warranty.



specifications

led stadium lights outdoor



Product model	We can do color	5050Lamp bead	Lens Angle	Net weight (KG)	Carton size (MM)
250W	Black/silver	98pcs	Lens 10, 25, 45, 60 degrees	10.9 kg	440*495*230
500W	Black/silver	196pcs	Lens 10, 25, 45, 60 degrees	15.9 kg	620*495*230
750W	Black/silver	294pcs	Lens 10, 25, 45, 60 degrees	20.9	800*495*230
1000W	Black/silver	392pcs	Lens 10, 25, 45, 60 degrees	25 .9kg	980*495*230
1500W	Black/silver	588pcs	Lens 10, 25, 45, 60 degrees	40 kg	940*900*230
2000W	Black/silver	784pcs	Lens 10, 25, 45, 60 degrees	55 KG	940*900*230



Details

led stadium lights for football stadium

1. PHILIPS 5050 LEDs, flip chip technology, single unit’s damage won’t affect others’ normal work

2. Honeycomb briquette effect heat dissipation principle, best thermal management system, the whole structure cooling technology

3. Designed to last at least 50,000 hours at L70

4. Different power versions: 500W, 750W, 1000W, 1200W, 1500W

5. Higher waterproof level, hot-pluggable, easy for installation and replacement

6. Easy tool onsite maintenance and repair

7. Free modular serialization and full power range solution

8. Intelligent constant current driving technology to guarantee the safety of LED use

1.Unique design

2.Modular design, free combination of full power, more convenient maintenance and management

3.Perfect light control, brightness uniformity can reach 0.8, creating a safe and comfortable lighting environment

4. There are four lamp beads in one lens, which has better lighting effect.

5. High light transmittance, small light attenuation, prolong life, more than ten years life

LED Stadium Sports lights



From New Private mold , Fashionable outlooking , Reliable IP65 waterproof structure design !

Narrow beam angle (10, 25, 45, 60 degrees) optional , can illuminate long distance !

High Lumen efficiency : 140-170 LM/W

5 years warranty , Meanwell driver + world famous brand chips

Super Competitive ratio of quality/price

Perfect corrosion-proof : Pure aluminum for main housing , Galvanized plate + painting for bracket and driver cover, all 304 stainless steel screws

Up to 1000Watt high power ! Customer can assemble 2 or 3 or 4 modules flexibly by themselves



Factory



Applications

LED Stadium Sports lights can be used in Highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas ,gardens and other places.



Packaging & Shipping

Standard export packaging
