Description

5 years warranty led outdoor stadium light 1500W LED Sport Field Lighting



Features



This is a latest design with simple and novel appearance for commercial or industrial lighting. The shell is pure aluminum 12# with anti-pressure, high-strength, and anti-corrosion, and PC cover, waterproof IP65. It adopts constant current isolated MeanWell driver.



1. PHILIPS 5050 LEDs, flip chip technology, single unit’s damage won’t affect others’ normal work

2. Honeycomb briquette effect heat dissipation principle, best thermal management system, the whole structure cooling technology

3. Designed to last at least 50,000 hours at L70

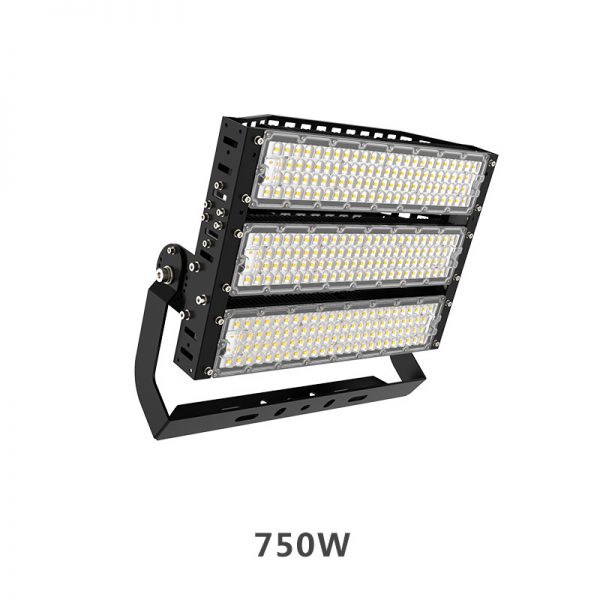

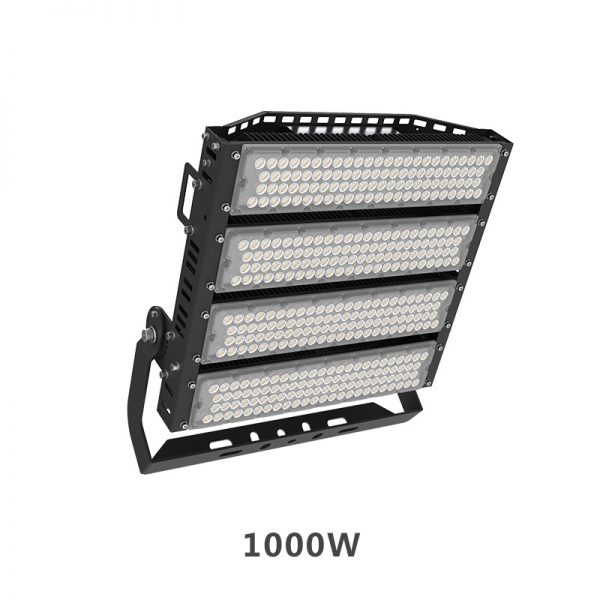

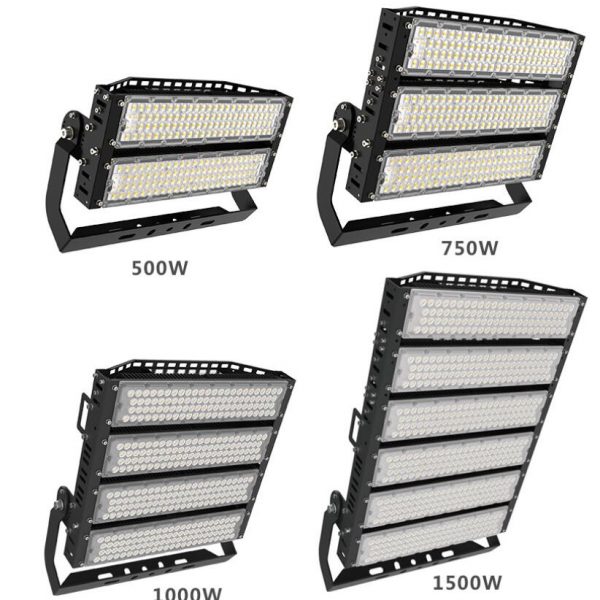

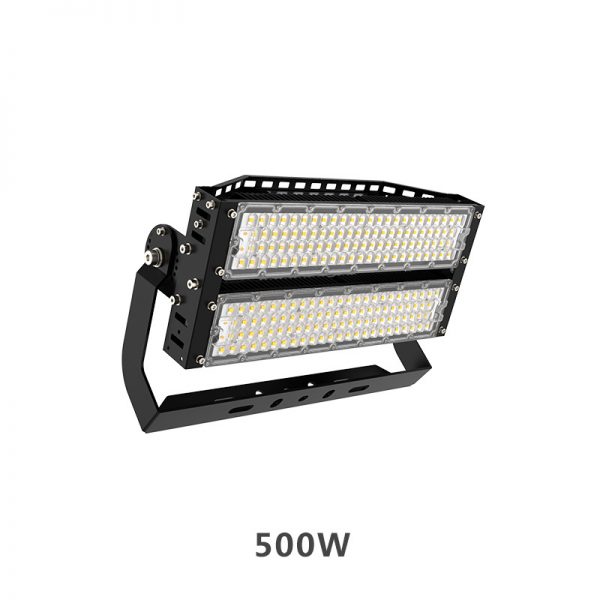

4. Different power versions: 500W, 750W, 1000W, 1200W, 1500W

5. Higher waterproof level, hot-pluggable, easy for installation and replacement

6. Easy tool onsite maintenance and repair

7. Free modular serialization and full power range solution

8. Intelligent constant current driving technology to guarantee the safety of LED use

specifications

LED Sport Field Lighting

Technical data:
Item name 1500W LED Stadium Sports lights
Power 1500W
Light Source SMD5050 PHILIPS
Input Voltage AC 85~277V
Color Temperature 2700-6500K
Light effect 140LM/W
Lumen 210000LM
PF ≥0.95
CRI Ra.≥80
IP 65
Viewing angle 8° / 20° / 40° / 60°
Materials 1016 Aluminum
Operating Temp. -25ºC to +60ºC
Applications Sports Stadiums, Football Field, soccer field, golf field, stadium, etc
Qty / CTN 1PC
N.W. 21KG
G.W. 25KG
Lamp dimensions 618*815*177mm
Carton size 8*48*21CM
Lifetime 50,000 hours
Quality warranty 5 years
Certificates CE,ROHS, EMC, LVD, ISO9001



Details

LED Sport Field Lighting

1. It is of IP Rate 65, which means its excellent performance in waterproof.
2. Energy Friendly. LED flood lights eliminate the need for frequent bulb replacements, and you can save as much as 80% on electricity costs.
3. Long life. In an average, these bulbs last for up to 10 times longer than incandescent, halogen or fluorescent lights.
4. Free of Mercury, Lead and Carbon Emissions.
5. Low Maintenance and Replacement Costs.
6. Unaffected by Weather and Temperature Changes. LED flood lights are impervious to temperature fluctuations and environmental conditions.
7. Low maintenance costs thanks to long lifetime.



1.Unique design

2.Modular design, free combination of full power, more convenient maintenance and management

3.Perfect light control, brightness uniformity can reach 0.8, creating a safe and comfortable lighting environment

4. There are four lamp beads in one lens, which has better lighting effect.

5. High light transmittance, small light attenuation, prolong life, more than ten years life



Factory

Applications

LED Stadium Sports lights can be used in Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, swimming pool, car parks, production lines, exhibition halls and etc.



Packaging & Shipping

Standard export packaging
