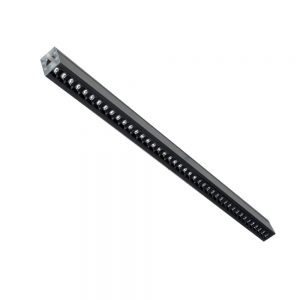

20w 40w 60w 80w Seamless Connected Dali Dimming Led Linear Pendant Light

Description

20w 40w 60w 80w Seamless Connected Dali Dimming Led Linear Pendant Light



Features

linear led light fixture
linear led light fixture is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Beam Angle: 120 °.
Available in 600mm 1200mm 1800mm 2400mm
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 V dimming.
IP Grade:IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.

Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.

Light Source
Using the energy-saving highlighting 2835 SMD LED light source.

Distributed LED array in a variety of lumen output packages.

LED color is available in 2700-6500K. Module is replaceable.

Mounting
Luminaires may be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.

Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.





Technical parameters



LED linear lighting for office

Power	20W	40W	60W	80W
Length	600MM	1200MM	1800MM	2400MM
Size	5065/3570/7575
Luminous Efficiency	110LM/W	110LM/W	110LM/W	110LM/W
Luminous Flux	2200LM	4400LM	6600LM	8800LM
CCT	3000-3500K/4000-4500K/5000-5500K/6000-6500K Optional
LED Chip Brand	NICHIA/CREE/EPISTAR/NATIONSTAR/SAMSUNG Optional
Other Function	Dimming/Sensor/Zigbee Optional



Details

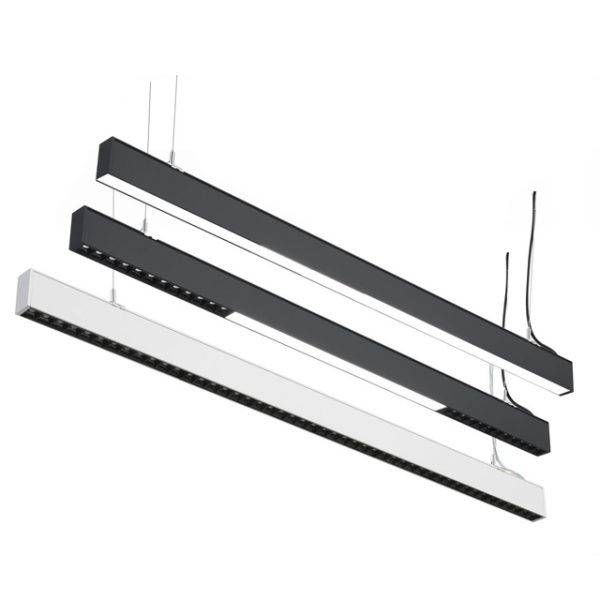

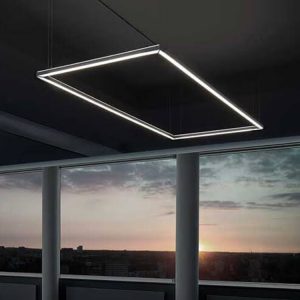

suspended linear led lighting

linear led light fixture

1.Connect with seamless, form with line shape.
2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can’t run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.
6.Product passed TUV SAA CE FCC ROSH certifications.

LED linear light for Office Supermarket, Can be customized in a wide range of sizes

A. Shopping mall, supermarket, hotel lighting, office lighting etc.;
B. Family house, kithchen, warehouse, bathroom, corridor, garage;
C. Commercial show windows and bars, subway, airport, exhibition hall, gymnasium etc.



Installation

Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed



Applications

LED linear lighting Use in shopping mall, office, school, leisure site, garage, factory, school, supermarket, hospital, store, etc.



Packaging & Delivery

Neutral packing, Or customize packaging according to customer requirements.
