led down light for hotel supermarket led recessed downlight
led downlight
led recessed downlight
110v 220v input voltage
for hotel supermarket
- Description
- Contact From
Description

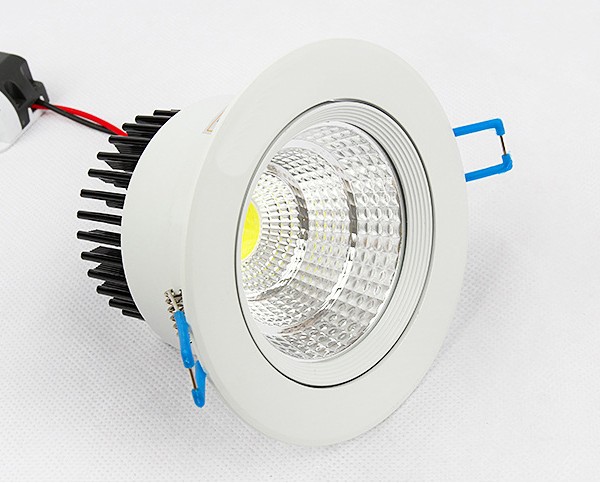

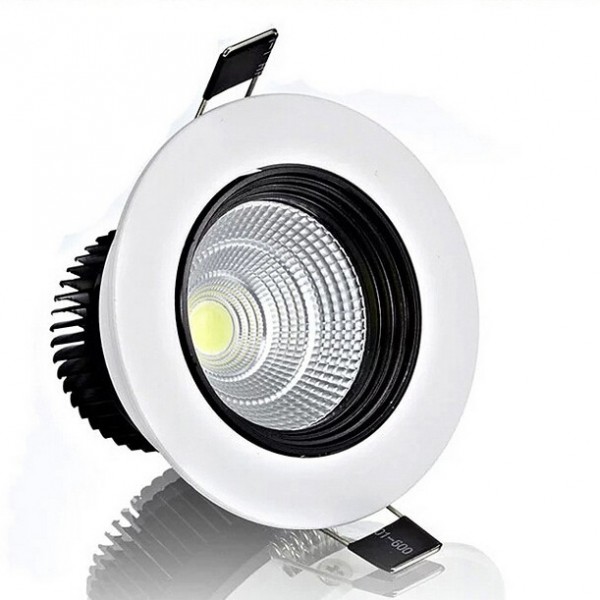

led down light for hotel supermarket led recessed downlight
Main Features
1.Material: Aluminum housing+Plastic cover
2.LED chip: SMD 2835 led chip
3.Luminous Efficiency: 80lm/W
4.Color Temperature: 3000-4000K/5000-6500K
5.Voltage: AC85-265V
6.Working Temperature: -25°C~+45°C
7.Lifespan: 30,000hrs
Technological Parameter
| Specification | ||||||
| Power | 9w | 11w | 13w | 15w | 18w | 20w |
| Hole Size | 4inch | 4inch | 5-6inch | 5-6inch | 5-6inch | 5-6inch |
| Input Voltage | 90-135V 50/60Hz dimmable | |||||
| Lumen | 720-810lm | 880-990lm | 1040-1170lm | 1200-1350lm | 1440-1620lm | 1600-1800lm |
| C.C.T. | 2700K/3000K/4000K/5000K | |||||
| Light Source | SEOUL3030 | |||||
| CRI | 80/90 | |||||
| PF | >0.9 | |||||
| Life span | 50000hours | |||||
| Beam angle | 100 degree | |||||
| Lamp Base | E26 GU10 GU24 | |||||
| IP class | IP65 | |||||
| Color | white | |||||
| Net Weight(g) | 257.5g | 257.5g | 356g | 356g | 375g | 375g |
| Size of product(mm) | 128×86.5mm | 128×86.5mm | 190×93.5mm | 190×93.5mm | 190×99.5mm | 190×99.5mm |
| Size of packing box(mm) | 135x135x97mm | 135x135x97mm | 195x195x107mm | 195x195x107mm | 195x195x107mm | 195x195x107mm |
| Size of carton(cm) | 30x30x33cm | 30x30x33cm | 42x42x36cm | 42x42x36cm | 42x42x36cm | 42x42x36cm |
| Gross Weight(kg) | 4.7kg (12pcs) | 4.7kg (12pcs) | 7.3kg (12pcs) | 7.3kg (12pcs) | 7.6kg (12pcs) | 7.6kg (12pcs) |
| Warranty | 3-5years | |||||
| Certificate | UL, ENERGY STAR | |||||
Details
Double ring design can be adjusted angle, the surface anodized
Application
Hotels ,entertaining place
Conference/Meeting rooms
Factories&Offices
Bedrooms,living rooms
Residential/Institution Building
Schools,Colleges&Universities
Packaging & Shipping
Single packaging,using brown individual box with the blister inside packaging
