Integrated Led Street Lights Solar Powered With Motion Sensor Outdoor Wall Lamp

Integrated design
Led Street Lights Solar Powered
With Motion Sensor
IP65 outdoor use

Description

Integrated Led Street Lights Solar Powered With Motion Sensor Outdoor Wall Lamp



Main Features

2019 new arrival All in one integrated solar street Light is an integration of solar panel,LED light,Lithium battery,Controller,Constant current drives and lighting housing.Combined the tecnologies of potoelectric effect.constant current control,micro controller,infrared motion sensor,remote controller,and mutiple pratical con-trol technologies.Able to illuminate the environment with radiant light.



Technological Parameter

solar based led street lights
Integrated Solar Street /Garden Light (80W)
PD-80W
Solar Panel
Max power
18V 80W(Imported High Efficiency Monocrystalline Silicon)
Life time
25 years
Battery
Type
Powerful LifePO4 Battery(12.8V 40AH)
Life time
6 years

LED Lamp(With Motion Sensor)

Type
12V 80W

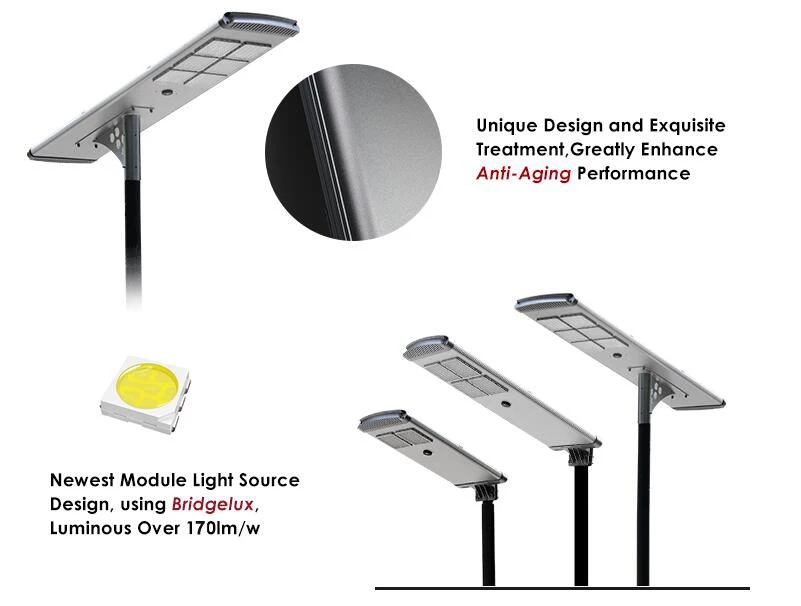

Led chip brand
Bridgelux from USA with high Brightness
Lumen
8000LM
Life time
100000hours
Viewing angle
120°
Charge time
by sun
6-10hours (with enough strong shine)
Discharge time
full power
more 15hours
saving mode
more 30hours
Working tempreture
range(℃)
-25℃~+65℃
Color tempreture
range(K)
6000K-7000K
Mounting height
range(m)
6~8m
Space between light
range(m)
18m-24m
Lamps material of main
aluminium alloy
Certificate
CE/ROHS/IP65
Warranty period
5 years

Packing and Weight

Product szie
1933*420.5*234.5mm
Product weight
14KG
Packing box
2000*150*310MM
Carton size
2000*150*310MM
Q’ty/ctn
1set/ctn
GW for carton
15KG
Packs Containers
20’GP
233sets
40’GP
475sets




Details



The design of integrated solar street light/garden light absorbs the inspiration and energy from the the universe, and combines today’s best green energy portflolio(solar energy, semiconductor LED light source,dedicated battery for street lights). It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc.,
combines with the simple integrated structure design, perfect implementation of low power consumption but high brightness (average 10w power consumption is 80w incandescent lamp’s illumination), long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation. All the advantage above make it the best contributed and creative patent product of our company.



Packaging & Shipping



individual package



Application

The Solar Light Can Widely Application At:
Indoor / Outdoor / Barn / Road / Garden / Park / Square / Street / Pathway etc
