High light transmittance, shock resistant, optimize lighting property and reduce glare at the same time,
15°, 30°, 60°, 90°, 120°, 70*150°, 80*155°, 85*155° degree optional lens are available, meet professional light distribution
5 Year Warranty IP65 Outdoor Waterproof 50W 100W 150W 200W 250W 300W Led High Mast Tennis Badminton Court Light Led Flood Light
5 Year Warranty
IP65 Outdoor Waterproof
50W 100W 150W 200W 250W 300W 400W
Led High Mast Tennis Badminton Court Light
Led Flood Light
- Description
- Contact From
Description

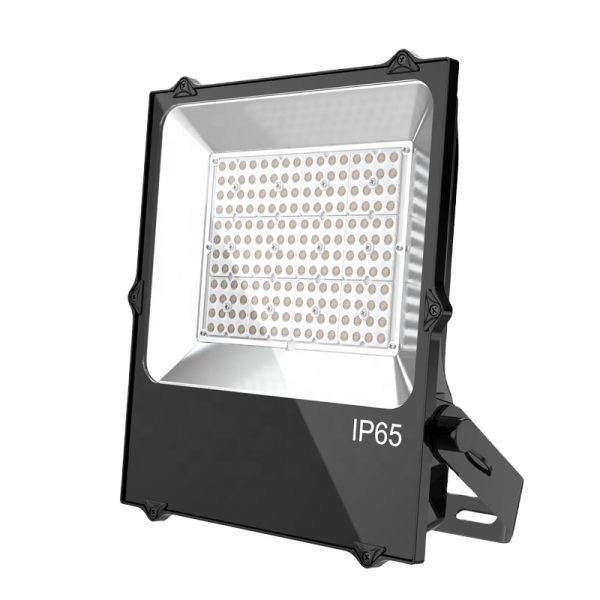

5 Year Warranty IP65 Outdoor Waterproof 50W 100W 150W 200W 250W 300W Led High Mast Tennis Badminton Court Light Led Flood Light
Description
LED floodlights are mainly used in single buildings, exterior wall lighting of historical buildings, building interior and exterior lighting, green landscape lighting, billboard lighting, medical and cultural and other special facilities lighting, bars, stadiums, stadiums, squares , Railway stations, ships, construction sites, tower cranes, and other lighting.
ETL/cETL/DLC approved

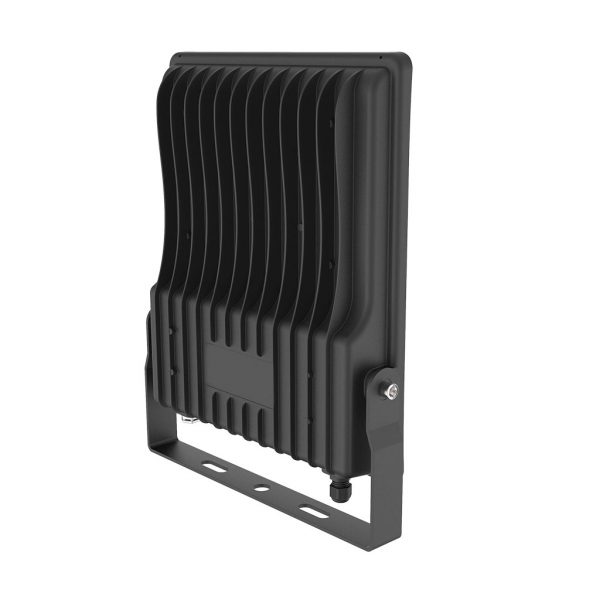

Aluminum fin heat sink light in weight
Tempered glass safety to install
Adjustable bracket change concentrate lighting area
100-277V, 185-528V input voltage
120 degree Beam Angle
6K High voltage Surge test approved
SMD3030 140lm/w LED chips
IP65 Waterproof and Dust free
ExternalNp magnetic disturbance driver design
50,000hrs lifespan
5 years warranty
High Power Factor > 90%
Parameter

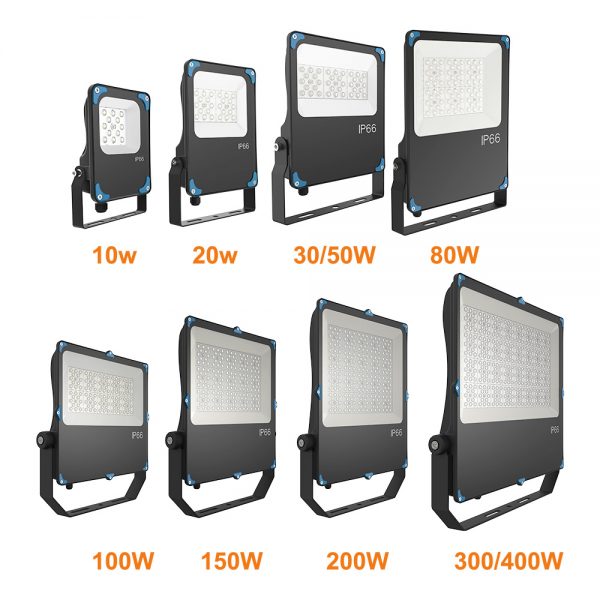

| Model NO. | MFL-S10-1 | MFL-S20-1 | MFL-S30-1 |
| NW/Size | 0.5kg/ 182*122*47mm | 1kg/ 242*169*51mm | 1.5kg/ 282*220*52mm |
| Luminous Flux | >1300LM | >2600LM | >3900LM |
| Packing | 395*270*290mm, 20pcs | 510*365*315mm, 20pcs | 465*305*315mm, 10pcs |
| Model NO. | MFL-S50-1 | MFL-S80-1 | MFL-S100-1 |
| NW/Size | 1.6kg/ 282*204*52mm | 2.3kg/ 337*269*52mm | 4.4kg/ 394*394*56mm |
| Luminous Flux | >90000LM | >10400LM | >13000LM |
| Packing | 465*305*315mm,10pcs | 588*360*315mm, 10pcs | 440*420*115mm |
| Model NO. | MFL-S150-1 | MFL-S200-1 | MFL-S300-1 |
| NW/Size | 5.4kg/ 445*392*56mm | 6.5kg/ 497*392*59mm | 10kg/ 503*545*64mm |
| Luminous Flux | >19500LM | >26000LM | >39000LM |
| Packing | 490*420*115mm | 540*420*115mm | 580*550*115mm |
| Beam angle | 7°,15°, 30°, 60°, 90°, 120°, 70*150°, 80*155°, 85*155° degree optional | ||
| IK | IK08 | IP Grade | IP66 |
| CCT | 2700-6500k | PF Rate | >0.95 |
| luminous efficiency | >130lm/W | CRI | >80 |
| Life span | 50000h | Input voltage | AC85-305V |
Details
* 9 Beam Angles design for sports lighting,7°/15°/ 30°/ 60°/ 90°/ 120° / 70*150° / 80*155 ° / 85*155°
* 120lm/w, 140lm/w or 160lm/w high efficiency solution
* Waterproof degree IP66
* Match with brand driver MW
* Match with brand driver MW
* Can be used in parallel with multiple modules
PC Optical Lens
High Brightness LED Chips
120lm/w, 150lm/w, 160lm/w SMD3030
Low light decay to keep the better light performance
Low light decay to keep the better light performance
Blue & Black optional
Blue & Black optional, Waterproof rating of IP66
Anti-skip
100-400W floodlight is with gear structure, whch can ensure the lamp fixed tight at any angle
Respirator
The main function of an internal pressure balance respirator is to only inhale air, not water. In order to achieve the IP65/IP66 protection level, the inside of the lamp can be fully balanced with the external pressure, and the service life of the rubber ring can also be extended.
CCT
left:3000k, right:6500k
Test
Passed multiple standard certifications, such as CE, ROHS, TUV, SAA, ETL, etc.
Applications
IP65 Outdoor Waterproof 50W 100W 150W 200W 250W 300W led flood light Can be used in building walls/cultural plaza/Sports Stadiums/Soccer field
