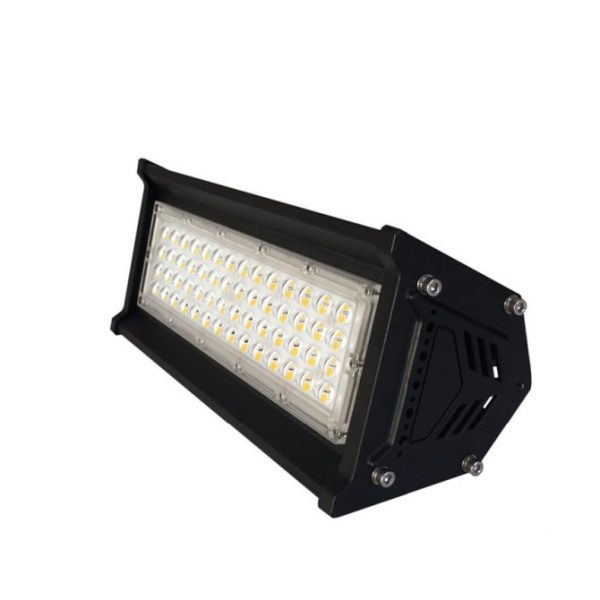

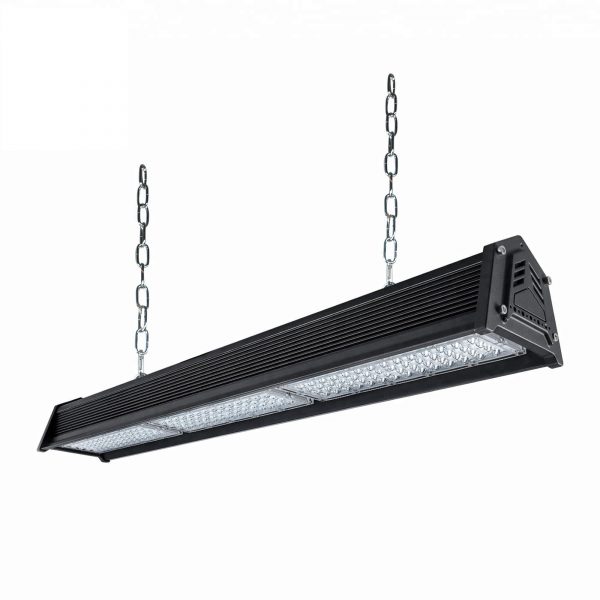

130Lm / W High Lumens 150W Industrial LED Linear Highbay For Warehouse And Workshop

130Lm / W High Lumens
Industrial LED Linear Highbay
For Warehouse And Workshop


130Lm / W High Lumens 150W Industrial LED Linear Highbay For Warehouse And Workshop



led linear high bay light

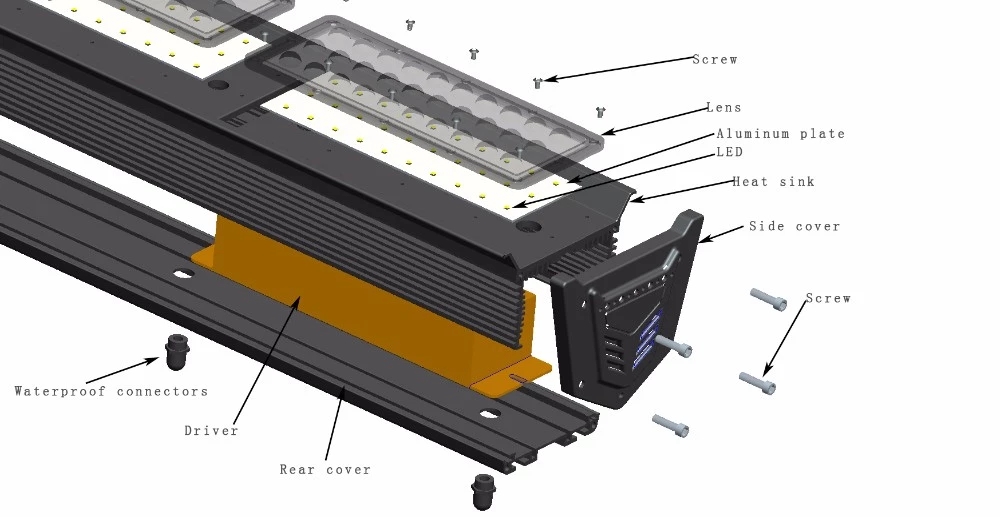

1.Module design, easy to disassemble, small size

2.Optional angles with variety of light distribution

3.LUMILEDS chip for option, Ra>80, LM80 standard, long lifespan.

4.Using the lightweight alloy material and high-tech spraying technology, the housing never rust and no corrosion.

5.SOSEN, MeanWell ELG series 5-7 years warranty driver.

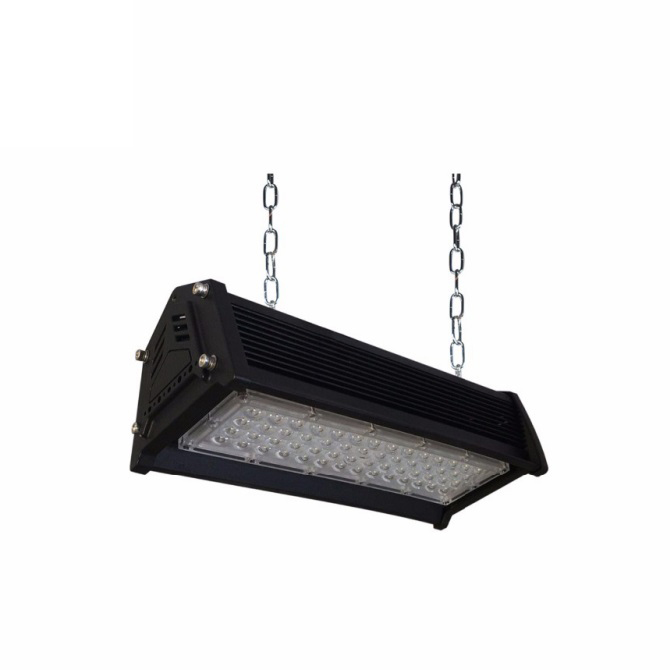

6.Suspension installation / bracket mounting meets most of the requirements.

7.Working temperature:-30°C~+60°C

8.IP65 protection class

9.CE,ROHS certificates,LM79 test report.





Item Industrial LED Linear Highbay
Input Voltage 100-305VAC
Power 50W 100W 150W 200W 250W 300W 400W 500W
Lumens 5500-6000lm 11000-12000lm 16500-18000lm 22000-24000lm 27500-30000lm 33000-36000lm 44000-48000lm 55000-60000lm
CRI Ra>80
Power Factor >0.95
Input Voltage 100-305VAC
Light efficiency 120-130lm/W
LED driver brand MINSENS Quality driver ( MEANWELL / INVENTRONICS / SOSEN Driver Option)
I Prate IP65
Housing material Excellent Aluminum +PC lens
Work temperature -30°C ~ +50°C
Life span 50000 hours
warranty 5 -7years

linear led high bay


1. 30° /90°/120°/30*70°/135*70°/150*70° beam angle, meet different using enviornment.

2. Self-assembly possible, easy inventory and cost effective maintenance.

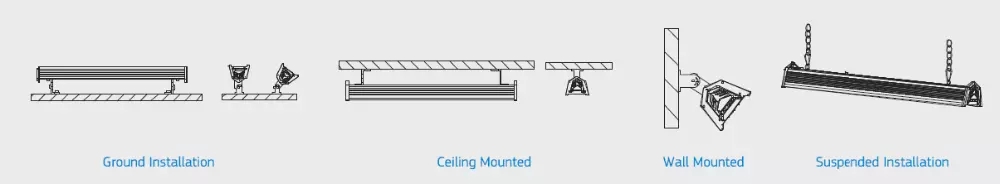

3. Different installation solution, such as Chain installation / wall mounted.
4. MEANWELL brand power supply, 5 to 7 Years warranty.
5. Dirver inside design, IP65 protection, suitable for any installation environment.
6. Module design, different length and wideth, from 50W to 500W is okay.
7. Using BrandLED with LM80, LED efficacy above 130Lm/w.


Module structure, variable power
Perfect heat dissapation, die-casting aluminum body
Private mould, special and unique structure
High transmittance PC lens
Motion sensor is optional

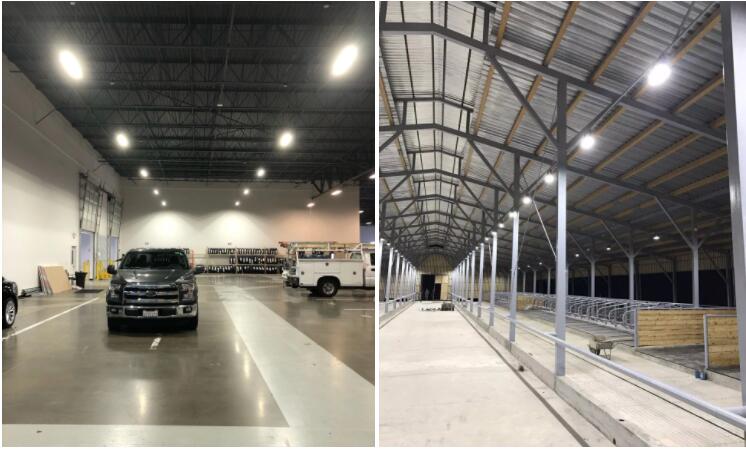

Industrial LED Linear Highbay is available for factory,storage room,public places,lobby,highway toll station,exhibition building, domestic block,gymnasium,gas station,show room,shop,super market,cool storage,meeting room and other lighting places.

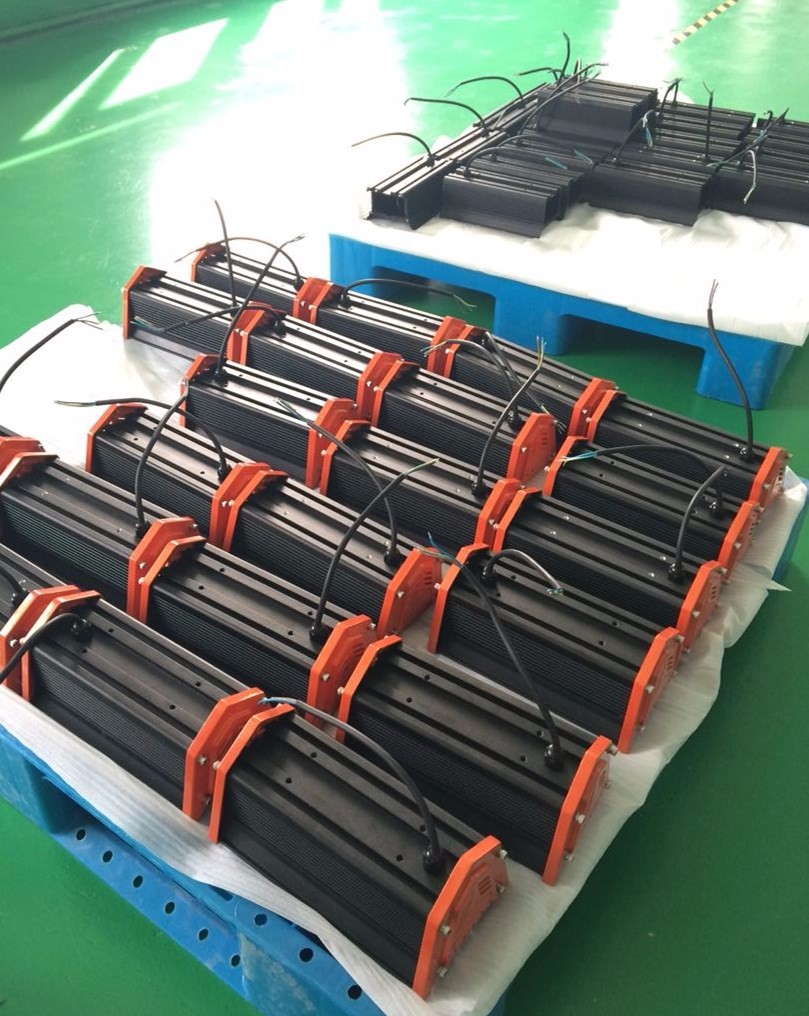

Packaging & Shipping

Each led high bay is packed by Inner carton box+Outer carton box. General Packaging with Meansuns Logo. Neutral packaging or cusomterized package
