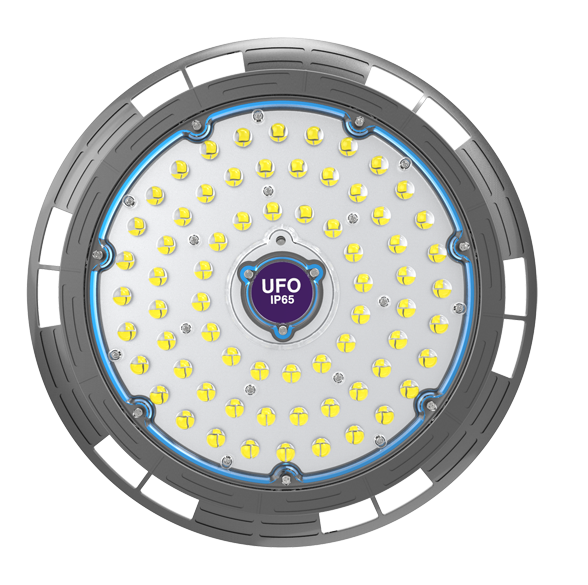

AC90V-305V uso esterno per interni ufo rotondo led luce ad alta baia 240w
AC90V-305V input voltage
outdoor indoor use
round IP65 protection
ufo led high bay light 240w
- Descrizione
- Contatta da
Descrizione
AC90V-305V uso esterno per interni ufo rotondo led luce ad alta baia 240w
2017 the latest products
Luminous efficiency up to 165lm/w
Caratteristiche
Economy is not equal to reduce the material
We invest the cost on technology instead of advertising, delete all the pointless decoration, excellent design of appearance.

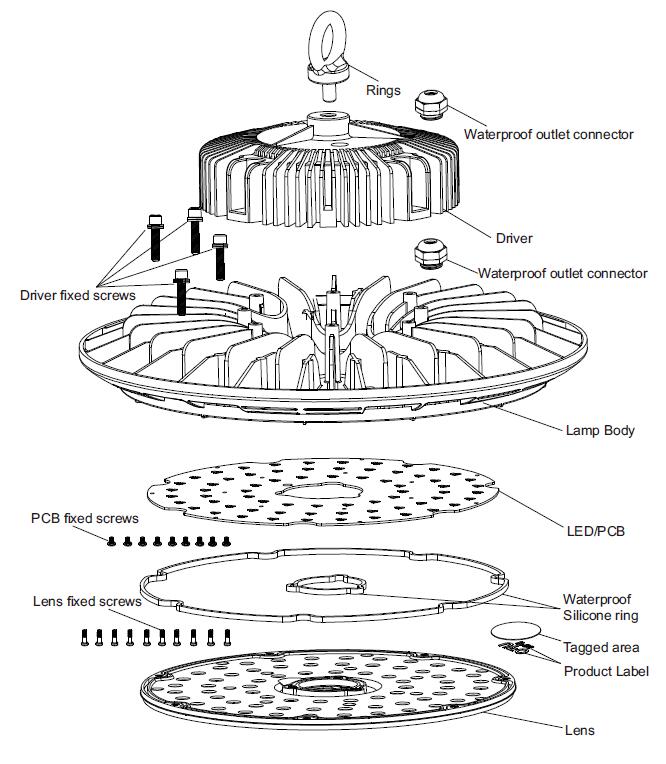

* Install easily
* Disassemble easily
* Wide application
LOW GLARE NO DASSLING
We not only design the light, also design the illumination
Adopt SMD3030 LED chip
* High thermal conductivity
* Low lumen depreciation
* Even lighting output
Adopt the full circulation design heat sink
More blades for heat sink wider air interface.
Huitian brand thermal conductive silicone with high performance.
Risparmio energetico, prolong its lifespan.
*High PFC
*Lunga durata > 50,000ore
*Low carbon lead free
More stable of its performance longer lifespan
* Short-circuit protection
* Full seal
* High thermal conduction. silicone potting
* 100% full load aging test
specifica
La specifica di ufo ha portato la luce ad alta baia | |
oggetto numero. | UFO-A5 |
Consumo di polvere | 240W |
Sostituire la lampada HID | 1000w-1500w |
Dimensione/dissipatore di calore | Ø380*58mm |
Dimensione del pacchetto | 460x460x190mm |
Flusso luminoso | 165lm/W |
Fattore di potenza | ≥0,95 |
Alimentazione LED | Driver Mean Well o driver di alta qualità |
Ingresso CA | CA 180 ~ 305 V (AC375V disponibile su richiesta) |
Ingresso CC | CC80~400V (DC12V, DC24V e altri ingressi disponibili su richiesta) |
Sorgente luminosa a LED | Philips 3030SMD |
Temperatura di colore | 2700~6500K |
Angolo del fascio luminoso | 60° / 90° disponibile |
Indice di resa cromatica | ≥Ra80 |
Vita lavorativa | ≥50000 ore |
Temperatura di lavoro | -20℃~60℃ |
Abitazione | Alluminio senza rame |
Garanzia | 5-8 Anni |
Marchio dei prodotti | SM& Personalizzato |
Certificato | ETL, TÜV , TEMPO ATMOSFERICO , CE, ROHS |
OEM | accettare |
UFO LED High Bay Light può essere ampiamente utilizzato per
1 Fabbrica
2 magazzino
3 officina
4 magazzino
5 hangar
6 palestra, stadio, sala espositiva
7 stazione di servizio, stazione di pedaggio
8 Garage per il parcheggio
9 centro commerciale ecc.
Confezione & Spedizione
1. Confezione:
Scatola radiatore (ogni scatola 1)
2. Quantità:1pz/scatola esterna
Cartone esterno:460x460x190mm,Materiale:K=K
Peso netto:3.1KG Peso lordo:4.1KG
Dimensioni del radiatore:Φ380x58mm
