Iluminación colgante lineal LED de aluminio de conexión perfecta disponible en montaje suspendido y en superficie
Conexión perfecta
Aluminio
Iluminación colgante lineal LED
Disponible en montaje suspendido y en superficie
- Descripción
- Contactar desde
Descripción
Iluminación colgante lineal LED de aluminio de conexión perfecta disponible en montaje suspendido y en superficie
Características
luminaria led lineal
1.Freedom Design
The design of LED Linear Light breaks through the limitations of traditional lighting design,the length of extrusion profiles can be cuttable according your request,even infinite connection for each other. Let everyone enjoy the freedom of design.
2.Easier Installation
Based on the modular design,the installation of LED linear light is diversified such as wall mounted,ceiling mounted, recessed or wire suspended according your application,the installation can be completed more quickly by this design.
3.More Various Application
Unlike the application of LED strip or LED tube light,a variety of application environments with good adaptability through the perfect combination of aluminum and LED light source.While providing a variety of joint accessories,the spatial structure has demonstrated a perfect compatibility in different areas.
4.More fashion modeling
Different from the complex,luxurious European lighting style,using LED linear lighting system to cut the space for a variety of simple geometric shapes,opened a fresh,elegant stylish lighting new field,will become the new trend in recent years.
Parámetros técnicos
suspended linear led lighting
| led linear pendant 3570 | |
| Nombre del producto | Luz lineal LED – 3570 |
| N.º de modelo del producto | LS3567-PZ |
| Material de la carcasa | 6063-T5 |
| Tratamiento de superficies | Aluminio con recubrimiento en polvo o cepillado |
| CCT | 3000k,4000k,6000k |
| LED | 2835SMD (microprocesador de SANAN) |
| Vida útil de los LED | 50000H |
| Voltaje de entrada | 100-277V/200-240V 50/60HZ |
| Proveedor de energía | Sin destellos |
| Eficacia luminosa(lm/w) | 100lm/W |
| Reproducción de color (IRC) | AR≥80 o AR≥90 |
| fábrica de energía(FP) | ≥0.9 |
| Características opcionales : | 0-10oscurecimiento V, DALI dimming,CCT dimming |
| Clasificación IP | IP20 |
| Ángulo de haz | 120° (ordenador personal) |
| 34°(Reflector) | |
| temperatura de trabajo(℃) | Temperatura ambiente circundante -25°~40°Grado Celsius |
| Cuerpo material | aluminio,ordenador personal,abdominales |
| Opción de color(caparazón) | Plata,Blanco,Negro |
| Certificación | CE, RoHS |
| Garantía limitada | 3 Años |
| Standard specifications | ||||
| Modelo | Tamaño | vatios | Voltaje | IRC |
| 3570LS20W06-PZ | L605*W35*H70 | 20W | AC200-240V/100-277v | Real academia de bellas artes>80/90 |
| 3570LS40W12-PZ | L1200*W35*H70 | 40W | AC200-240V/100-277v | Real academia de bellas artes>80/90 |
| 3570LS60W18-PZ | L1795*W35*H70 | 60W | AC200-240V/100-277v | Real academia de bellas artes>80/90 |
| 3570LS80W24-PZ | L2390*W35*H70 | 80W | AC200-240V/100-277v | Real academia de bellas artes>80/90 |
Detalles
suspended linear led lighting
luminaria led lineal

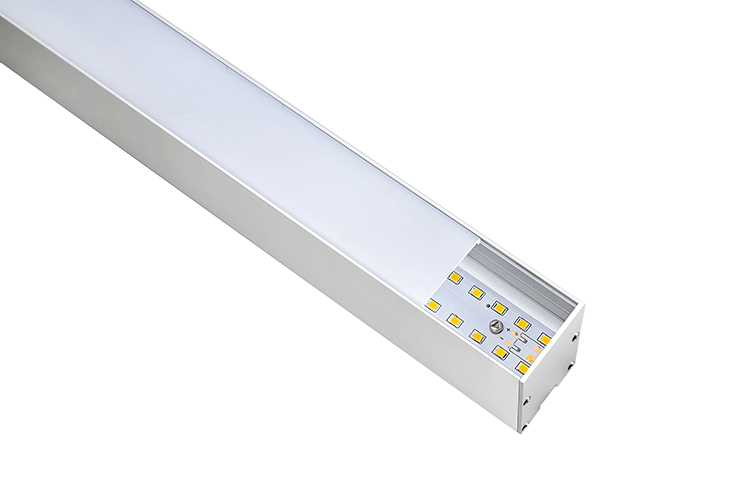

1.Connect with seamless, form with line shape.

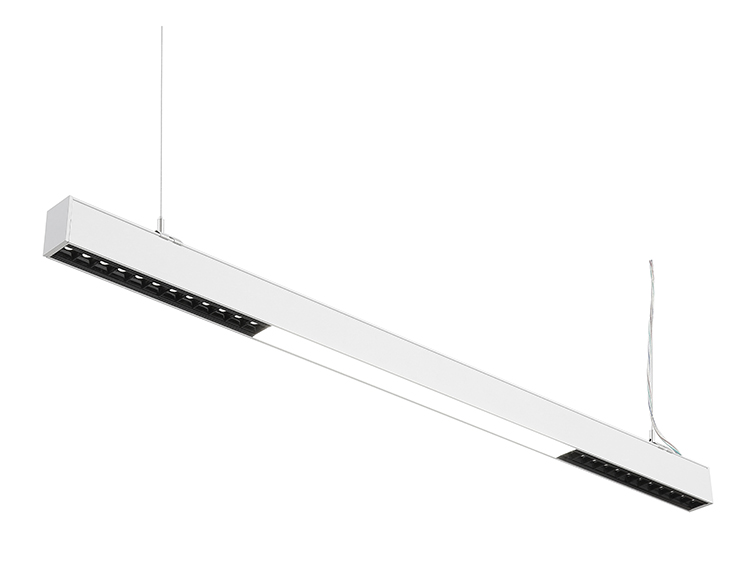

2.Product can be used hanging ,montadas en superficie, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can’t run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.
6.Product passed TUV SAA CE FCC ROSH certifications.

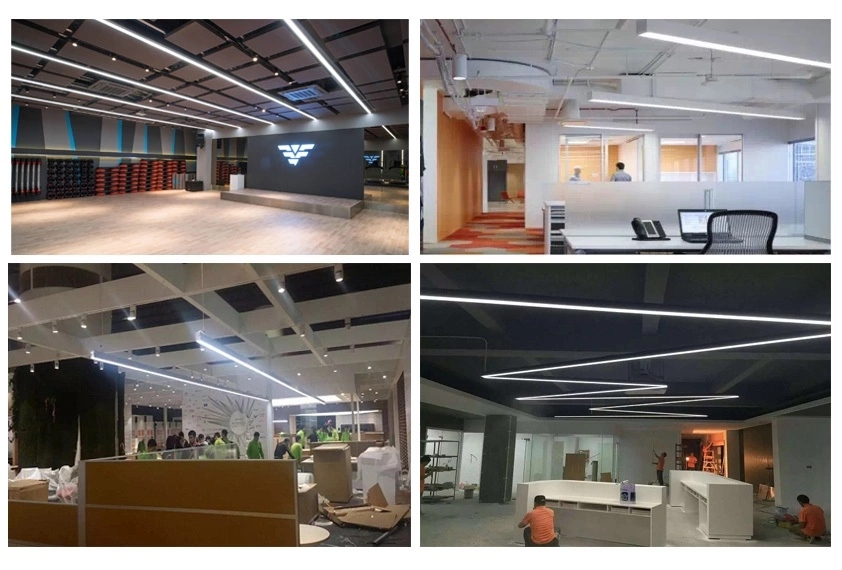

Luz lineal LED para Office Supermarket, Se puede personalizar en una amplia gama de tamaños
A. Centro comercial, supermercado, iluminacion hotelera, iluminación de oficinas, etc.;
B. Casa unifamiliar, Kithchen, depósito, baño, corredor, cochera;
C. Escaparates y rejas comerciales, subterraneo, aeropuerto, sala de exhibición, gimnasio, etc..
Aplicaciones
LED linear lighting Use in shopping mall, oficina, escuela, Sitio de ocio, cochera, fábrica, escuela, supermercado, hospital, almacenar, etc..
embalaje & Entrega
Embalaje neutral, O personalizar el embalaje según los requisitos del cliente.
