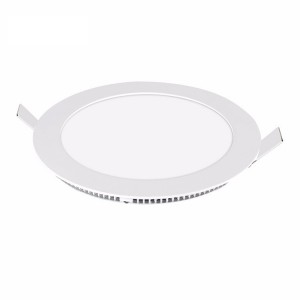

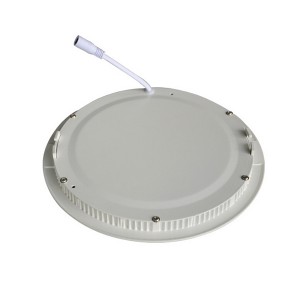

Ultra thin led panel light 6w SMD2835 flat led panel lighting 3 years warranty
Ultra thin design

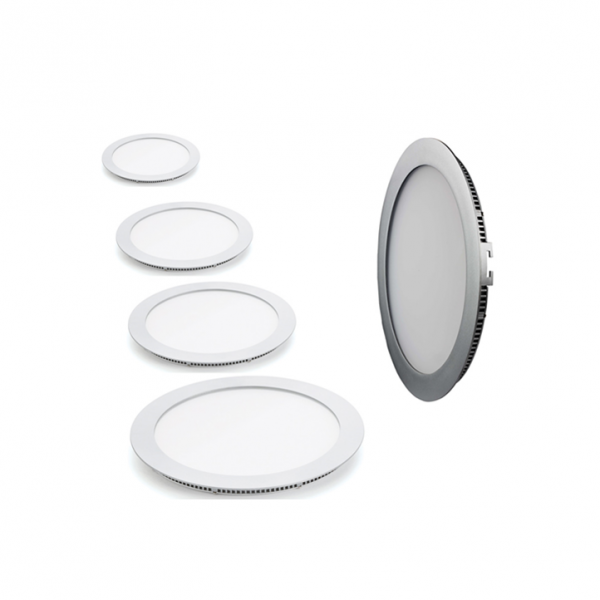

round led panel light
SMD2835 flat led panel lighting
3 years warranty
- Description
- Contact From
Description
Ultra thin led panel light 6w SMD2835 flat led panel lighting 3 years warranty
Features
1.70-90% energy saving than traditional lamps.
2. Long life span that more than 35,000 hours.
3.Efficiency light guide plate ensure the uniform plane lighting.
4.Input 85-265V AC, isolated constant current driver.
5.High quality die-cast aluminum frame, good heat dissipation, strong hardness.
Technical Details
| Power | 3w | 6w | 9w | 12w | 15w | 18w | 24w |
| Dimeter | 85mm | 120mm | 146mm | 170mm | 190mm | 225mm | 300mm |
| Cut-out size | 70mm | 105mm | 130mm | 150mm | 170mm | 200mm | 280mm |
| LED QTY | 15pcs SMD2835 | 30pcs SMD2835 | 45pcs SMD2835 | 60pcs SMD2835 | 75pcs SMD2835 | 90pcs SMD2835 | 120pcs |
| SMD2835 | |||||||
| Lumen +- | 360LM | 720LM | 1080LM | 1440LM | 1800LM | 2160LM | 2880LM |
| PF | PF>0.7/PF0.9/PF>0.95 | ||||||
| CRI | Ra>70/Ra>80 | ||||||
| Voltage | AC85-245v/ AC90-277v | ||||||
| Angle | 120 degree | ||||||
| CCT | 2700-3200k warm white /6000-6500k white | ||||||
| Life time | 2 years/50,000hours | ||||||
| Material | Aluminum+ PMMA | ||||||
| Working temperature | -10degree—+40degree | ||||||
| Installation | ressessed installation | ||||||
Applications
Living room,bedroom,kitchen,washroom.
Classroom,library,hospital.
Conference,meeting room,showroom
Factory,plant,warehouse,office.
Supermarket,department store.
Installation
Packaging & Shipping
Standard export packing, color box or neutral white box
