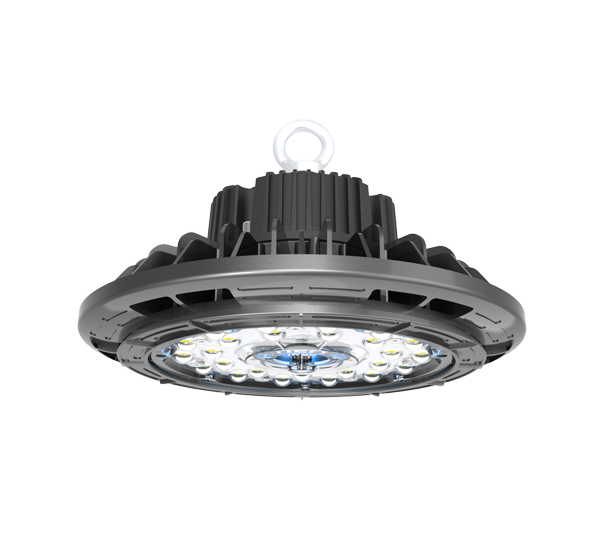

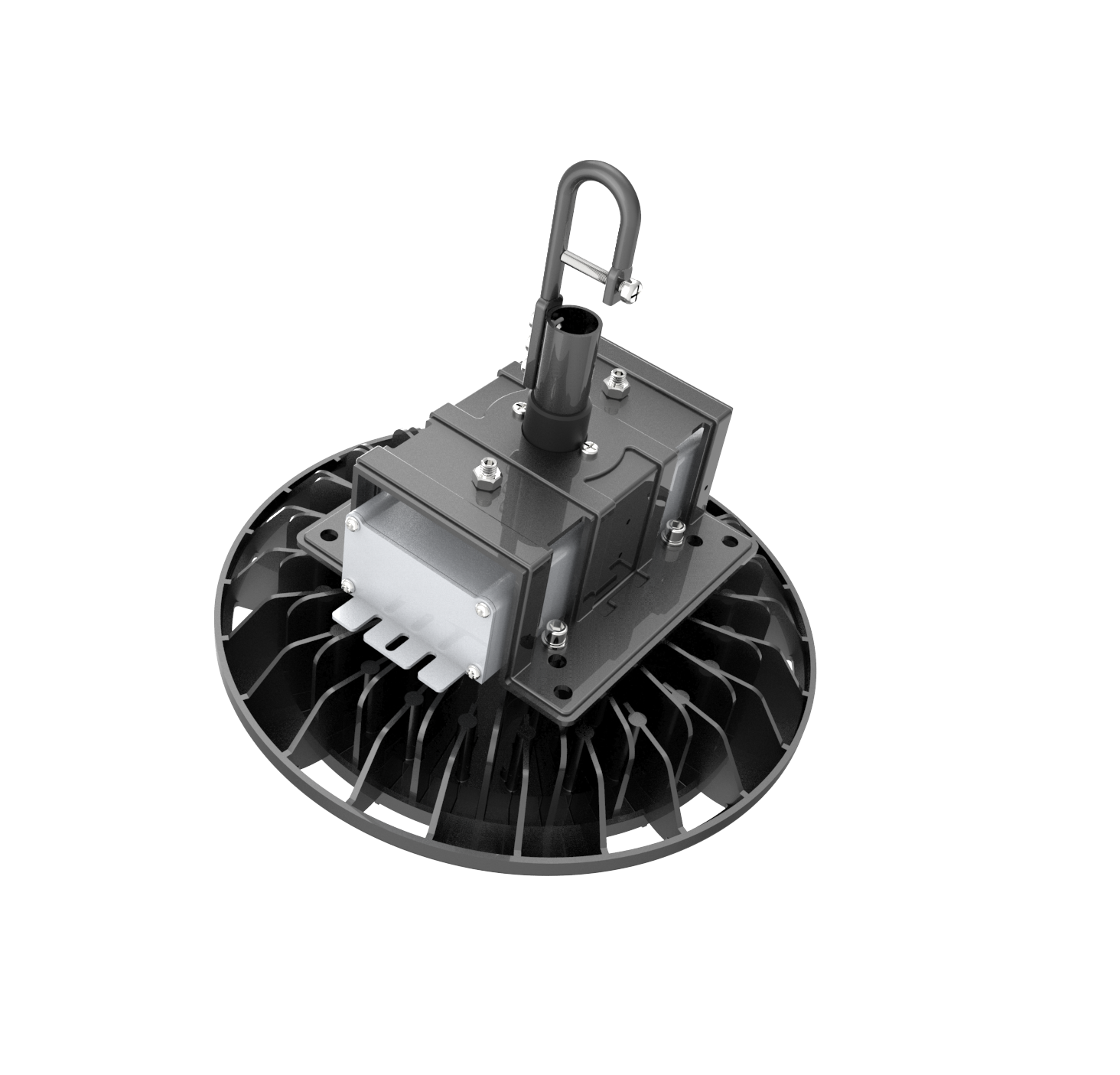

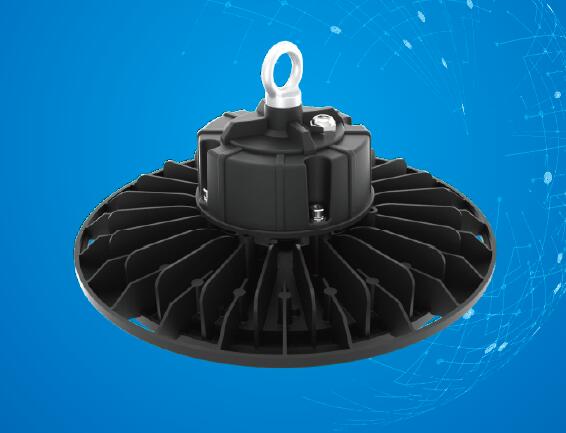

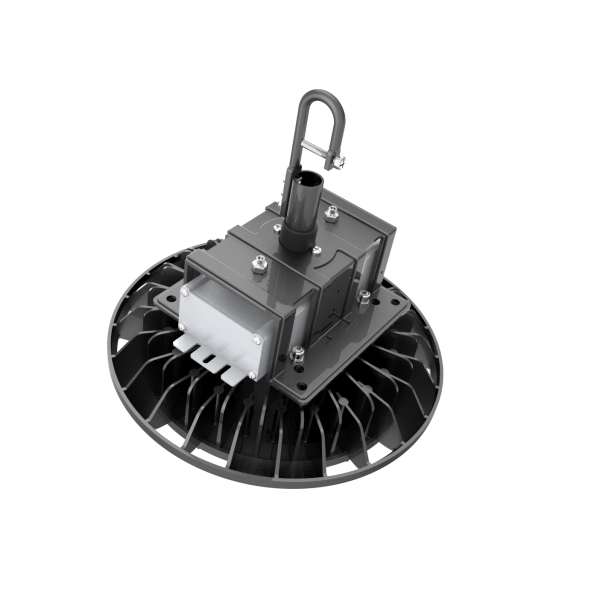

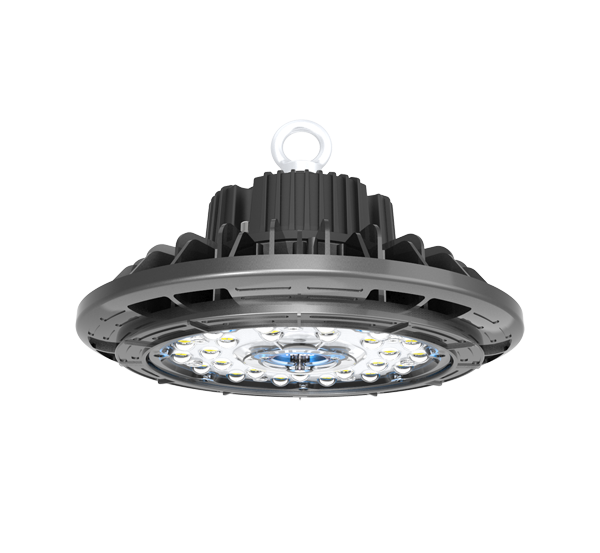

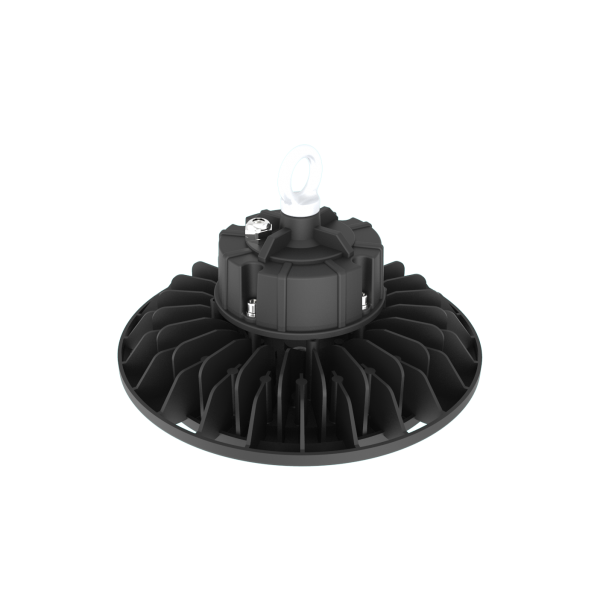

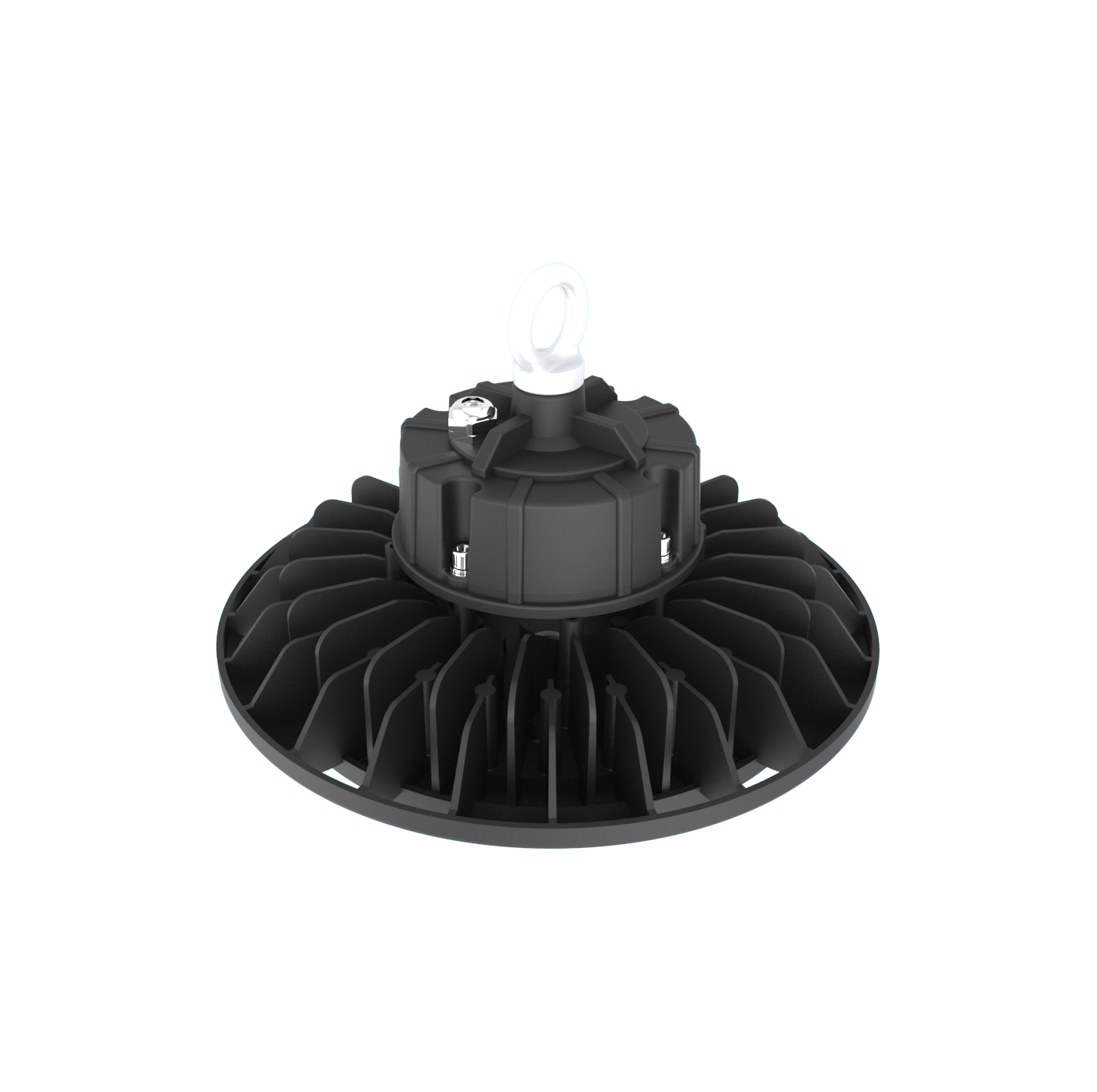

ufo high bay 100w 4000k tuv 3030 philips chips die cast all aluminum design

ufo high bay 100w 4000k tuv 3030 philips chips die cast all aluminum design

ufo high bay 100w 4000k tuv
3030 philips chips
60w 100w 150w 200w 240w
die cast all aluminum design

  • Description
  • Contact From

ufo high bay 100w 4000k tuv 3030 philips chips die cast all aluminum design



Features

1. Full waterproof design;
2. Meanwell driver, World Top class LED driver, PF>0.95;
3. High brightness SMD 3030 chips,Light efficiency:130lm/w,CRI>80;
4. New safe design, 100% safe, no danger;
5. Over Current, Over Voltage, Over Heat, Thunder Protection;
6. Complying with CE,ROHS,SAA,TUV; No strobing during working, Instant start;
7. UFO led high bay light lifespan is over 50000 hours;



specification

The Specification of ufo led high bay light
Item No. UFO-A1 UFO-A2 UFO-A3 UFO-A4 UFO-A5
Powder Consumption 60W 100W 150W 200W 240W
Dimension/Heat sink Ø250*36mm Ø250*59mm Ø310*48mm Ø350*55mm Ø380*58mm
Lumous flux 165lm/W
Power Factor ≥0.95
LED Power Supply Mean Well driver or High quality driver
AC Input AC180~305V  (AC375V available on request)
DC Input DC80~400V  (DC12V, DC24V and other input available on request)
LED Light Source Philips 3030SMD
Color Temperature 2700~6500K
Beam Angle 60° / 90° available
Color Rendering Index ≥Ra80
Working Life ≥50000Hrs
Working Temperature -20℃~60℃
Housing Copper Free Aluminum
Warranty 5-8 Years
Brand of Products MS& Customized
Certificate ETL, TUV , SAA , CE, ROHS
OEM accept



 Special optical design: 4 in one, 3 in one



ufo high bay 100w 4000k tuv (1)
ufo led high bay light 150w 90 degree (1)
240W 6M illumination simulation



ufo high bay 100w 4000k tuv (3)



Applications


Gymnasium, Sports Stadium Lighting, Park Lot, Square, Garden, Street Lighting, Gas Station, Canopy,Underground, Building, Billboard Lighting, Garage Lighting, Workshop, Factory Lighting, Warehouse, Storage Lighting, Yard, Station,Dock Lighting,Supermarket,Court,etc

ufo led high bay light (4)



Packaging & Shipping

Each led high bay is packed by Inner carton box+Outer carton box. General Packaging with Meansuns Logo. Neutral packaging or cusomterized package

ufo led high bay light (1)
