office ceiling flat Lamp led panel light 60×60 100lm/w nano light guide plate



Features

IP54 Ceiling Lighting Lamp 200-240V AC Input Factory Price 3 Years’ Warranty 90LM/W LED Panel Light 60*60 36W
1. Epistar SMD2835 as light source, cute light-emitting surface , downy light and visually comfortable ,high output 80m/w,CRI>80,anti- Glare<18
2. Taiwan PMMA LGP,with 92% light transmittance, no light spot.
3. AL6063-T5 aluminum frame, specially wrinkle design in flank for better heat dissipation ,and Sleek, lightweight .
4. No-Fliker Driver, CE&ROHS, TUV, UL-listed available for different market standard.
5. Business solution Flexible offered for OEM, Reseller, and Commercial customers. .with R&D engineer team work engaged in led panels for 10 years.
6. They feature outstanding proven reliability, low light degradation, lasting more than 50,000 hours;
7. PF>0.95 , power efficient>0.85
8. High efficiency:up to 85~120lm/w
9. 5 years warranty
10. Energy-saving&super bright .saving 75% energy compared with traditional panel lights
11. Total Harmonic Distortion:<15%
12. Frequency Range:50Hz~60Hz
13. Special circuit design,each group of LEDs work separately,avoiding anyproblem of lighting output caused or influenced by single faulty LED.
14. Green environmental protection,lead-free material,conforming to ROHS.
15. UGR<19 no glare It’s can protect eyes

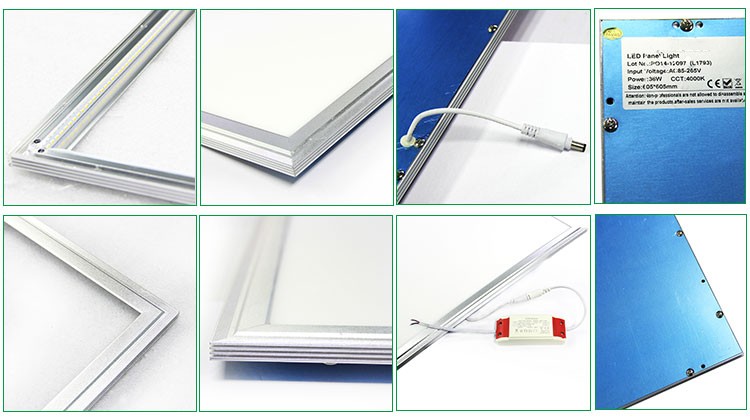

Details

led panel light(1)

Three installation methods

led panel light(2)

led panel light(3)



Technical Details

Model No MS-P606036 MS-P606040 MS-P606048 MS-P606054
Power Consumption 36 W 40 W 48 W 54 W
Luminous Flux (Lm)        3240-3600 Lm  3600-4000 Lm    4320-4800 Lm  4860-5400 Lm
LED Qty(pcs) 192 pcs 204 pcs 252 pcs 300 pcs
LED Type SMD 2835
Color Temperature (K) 2800 – 7000K
Color Warm/Natural/Cool White
Dimension 595x595x10mm
Beam Angle (degree) >120°
     Light Efficiency (lm/w)  >90lm/w
CRI  >80
Power Factor  >0.95
Input Voltage AC 85V – 265V
Frequency Range (Hz) 50 – 60Hz
Working Environment  Indoor
Material of Body Aluminum alloy+Acrylic+PC/PS Diffuser
IP Rating IP54
Operating Temperature -20°~65°
Dimmable Optional
Life span 50,000hours
Warranty 3 Years


Applications

1.Conference/meeting rooms;2.Factory & office;3.Commercial purposes;
4.Residential & institution buildings;5.Schools, colleges& universities;6.Supermarket lighting

led panel light(1)



Packaging & Shipping

Standard export packing, color box or neutral white box

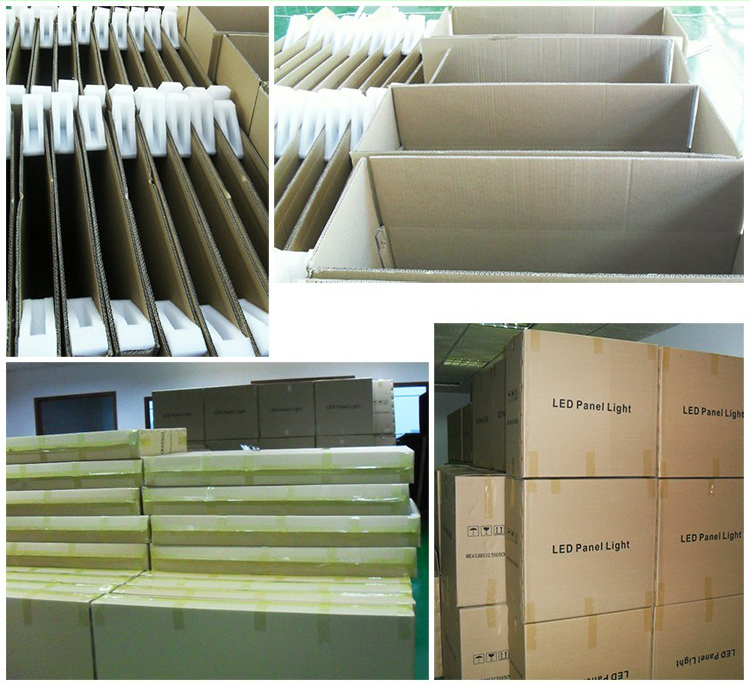

led panel light package
