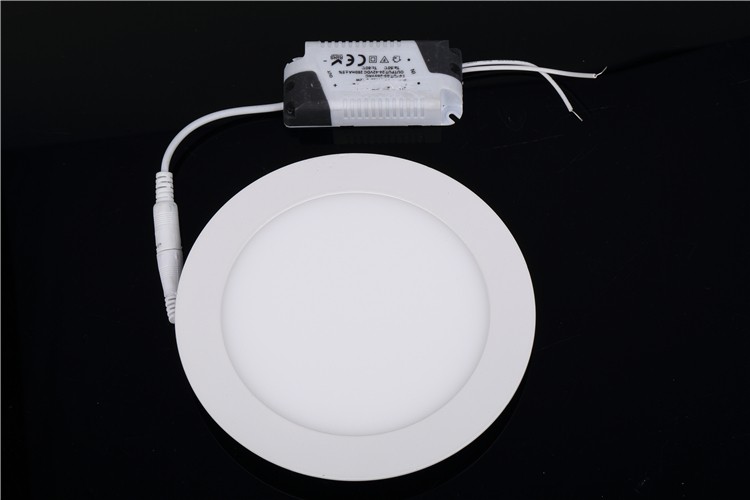

IP54 embedded ultra slim round aluminum ceiling smd 18 watt led panel light

IP54 embedded ultra slim round aluminum ceiling smd 18 watt led panel light

IP54 embedded
ultra slim round aluminum ceiling smd
18 watt led panel light
3 years warranty

  • Description
  • Contact From

[prisna-wp-translate-show-hide behavior=”show” except=”en”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”es”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”fr”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”de”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”it”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”pt”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”pl”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”tr”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”nl”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”el”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”la”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”ru”][/prisna-wp-translate-show-hide][prisna-wp-translate-show-hide behavior=”show” except=”ar”][/prisna-wp-translate-show-hide]IP54 embedded ultra slim round aluminum ceiling smd 18 watt led panel light

Features

LED Panel has been design to work with conventional Grid Panel Light with fluorescent tube fixtures. To replace the short lived fluorescent lamps that are typically used in interior lighting.The LED Panel can be used to retrofit existing fluorescent tube grid light installations in all types of applications.

1.material is aluminum
2.Flexible Voltage: Use led ceiling lamp in AC85-265V voltage
3.Good heat dissipation by unique heat-sink design
4.Green and health protection,no pollution,more comfortable for our vision



Technical Details

Item Type: Slim Round led panel light
Diameter(mm): 225mm (hole 200mm) Thickness 25mm
LED Type: 0.2W SMD2835
LED Qty: 90pcs
Input voltage(V): AC85-265V(12V/24V can be optional)
Power consumption: 18W
Luminous : 1800lm
Light Luminous Efficiecncy: 100LM/W
Working Temperature: -20-+40 degree
Storage Temperature: -40-+85 degree
IP Rating: IP44
CRI: >80 Ra
CCT: 3000K 4000K 5000K 6000K
Beam Angle : >110 °
Light Body Matrial Aluminum
Working Lifespan: 50,000 Hours
Certificate: CE ,Rohs ,TUV EMC
Warranty: 3 Years


Applications

Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room

round led panel light(2)



Installation

Attention on Installation

1. Panel lights should be installed by trained electronic technician.
2. Please check all the accessories when open the cartons.
3. The distance between the light and any flammable materials must be more than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than 2 cm. Don not install into ceilings or walls that contain heat source. The main cable must not connect with the low voltage cable or the surface-mounted lights.
4. Guide the lights’ connecting cables through the drilled hole, and fix the surface-mounted lights with the pre-fitted clips. Make sure that these are securely connected to the base material.
5. When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces. Do not kink cables. Output cables should be laid separately and at a distance from other cables.
6. After installation, connect the transformer to the mains supply
7. Proceed by connecting the wiring cables to the lights. Usually, the brown (or black) wire is the Live wire, connect it with the terminal marked “L”. The blue wire is Naughty wire; connect it with the terminal marked “N”.
8. Use the dedicated LED drivers only, do not connect to other loads
9. Do not remove the label of the lights and drivers.

round led panel light(4)

Packaging & Shipping

Standard export packing, color box or neutral white box
