CE ROHS SAA ETL Approved 130lmw IP65 LED Linear Highbay 200watts For Warehouse
CE ROHS SAA ETL Approved
130lmw
IP65
LED Linear Highbay 200watts
For Warehouse
- Description
- Contact From
Description

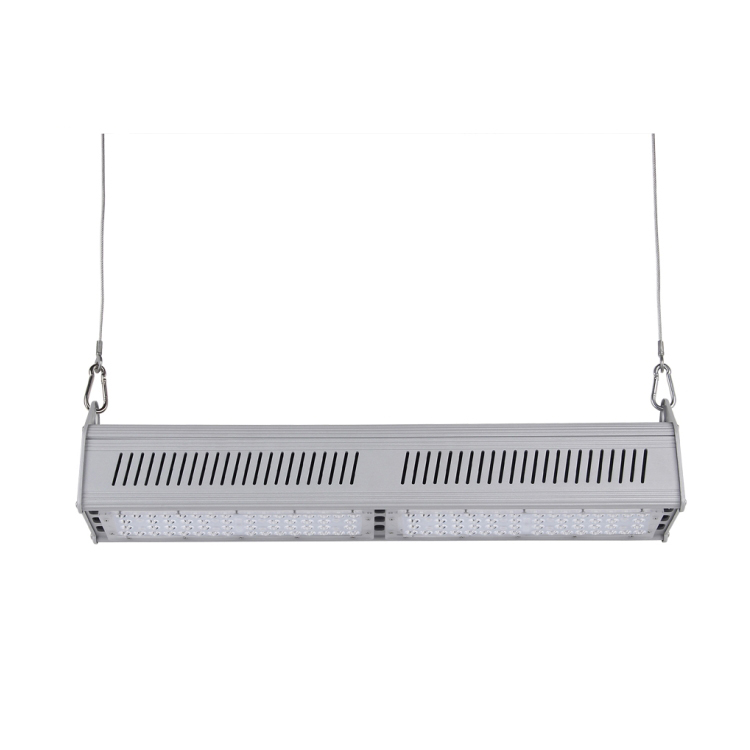

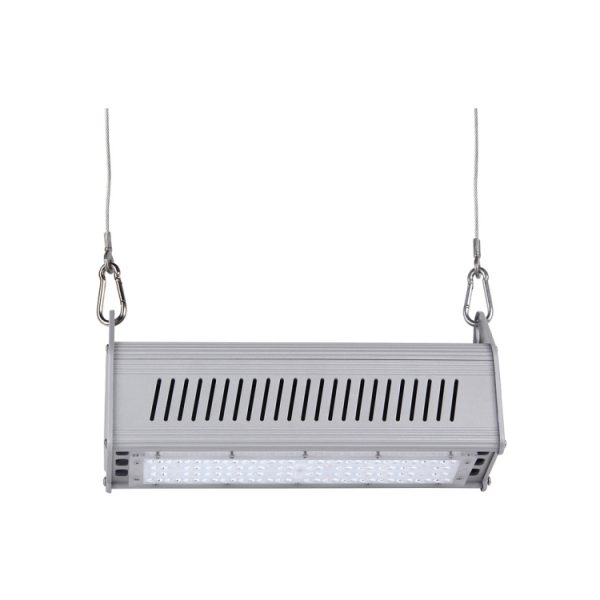

CE ROHS SAA ETL Approved 130lmw IP65 LED Linear Highbay 200watts For Warehouse
Most cost-effective LED Linear High Bay lights, with CE, ROHS, NOM, EMC, LVD, TUV, DLC, SAA certificates, are widely used in warehouses, tunnels, parking lots, planting growth. We support sample order and offer 3 to 5 years warranty.
Features

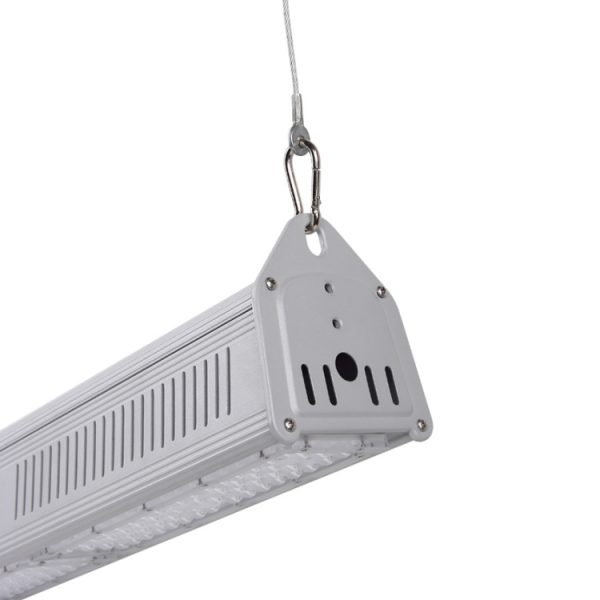

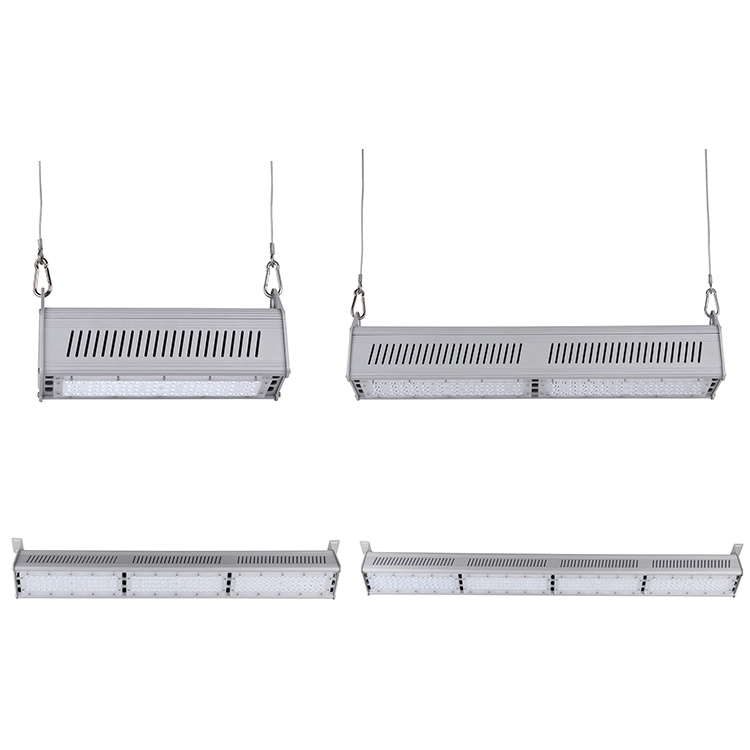

led linear high bay light
1.Four-sided holes,Ventilation pipe-shape design,Perfect heat dissipation solution
2.30° / 60° / 90° / 80*155° full Beam angle for option LED linear high bay light
3.Big chip, high efficiency 3030 LEDs, high lumen, high CRI, less light decay

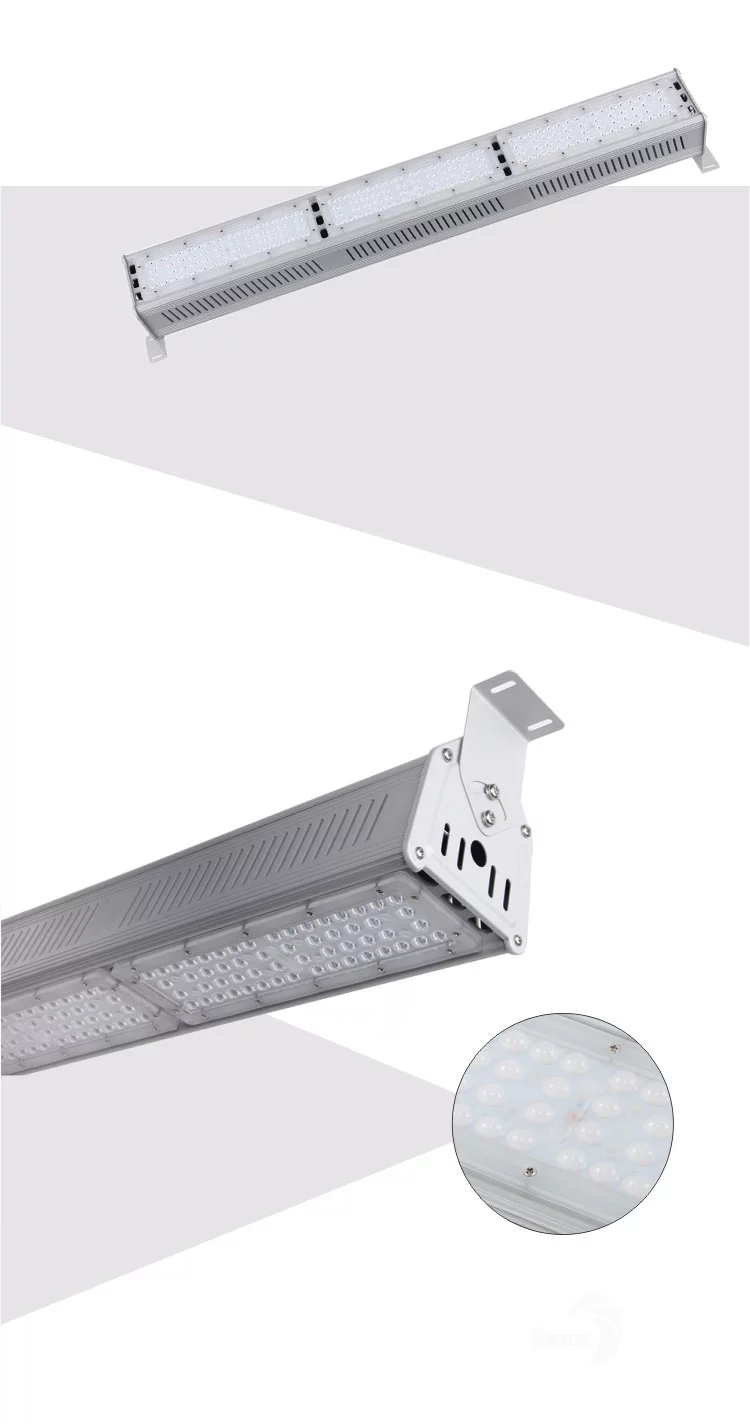

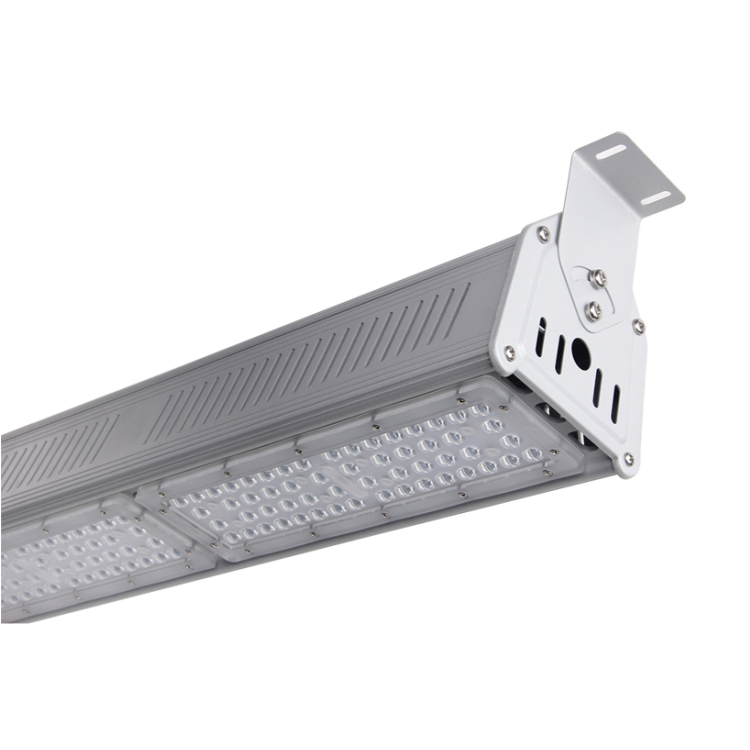

4.Aluminum bracket, Support 100°angle adjustment,More firm & More flexible
5.Isolated water-proof driver,Surge prevention, More stable performance
6.Strengthen Stainless Screws , No rusty, More firm LED linear high bay light
specification
| led linear high bay fixtures | |||||
| Power | 100W | 150W | 200W | 300W | 400W |
| Voltage | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V |
| LED Type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 LEDs |
| QTY of Driver | 2 PCS | 3 PCS | 4 PCS | 6 PCS | 8 PCS |
| Efficiency | 90-130lm/w | 90-130lm/w | 90-130lm/w | 90-130lm/w | 90-130lm/w |
| Lumens | 10000lm+ | 15000lm+ | 20000lm+ | 30000lm+ | 40000lm+ |
| C.R.I | >80Ra | >80Ra | >80Ra | >80Ra | >80Ra |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Color Temp | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Working Temp | -20℃ – 50℃ | -20℃ – 50℃ | -20℃ – 50℃ | -20℃ – 50℃ | -20℃ – 50℃ |
| Beam Angle | 30/60/90/30*70 | 30/60/90/30*70 | 30/60/90/30*70 | 30/60/90/30*70 | 30/60/90/30*70 |
| 60*90/60*120° | 60*90/60*120° | 60*90/60*120° | 60*90/60*120° | 60*90/60*120° | |
| Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
| Net Weight | 2.9kg/pc | 4.1kg/pc | 5.3kg/pc | 8.6kg/pc | 11.2kg/pc |
| LampSize(mm) | 620*115*114 | 887*115*114 | 1154*115*114 | 947*230*173 | 1214*230*173 |
| Pack Size(cm) | 65*16.5*19.5 | 92*16.5*19.5 | 118.5*16.5*19.5 | 97*28*22 | 124*28*22 |
| PCS/CTN | 1 PC | 1 PC | 1 PC | 1 PC | 1 PC |
| Lifespan | >50000hrs | >50000hrs | >50000hrs | >50000hrs | >50000hrs |
| Warranty | 2-5years | 2-5years | 2-5years | 2-5years | 2-5years |

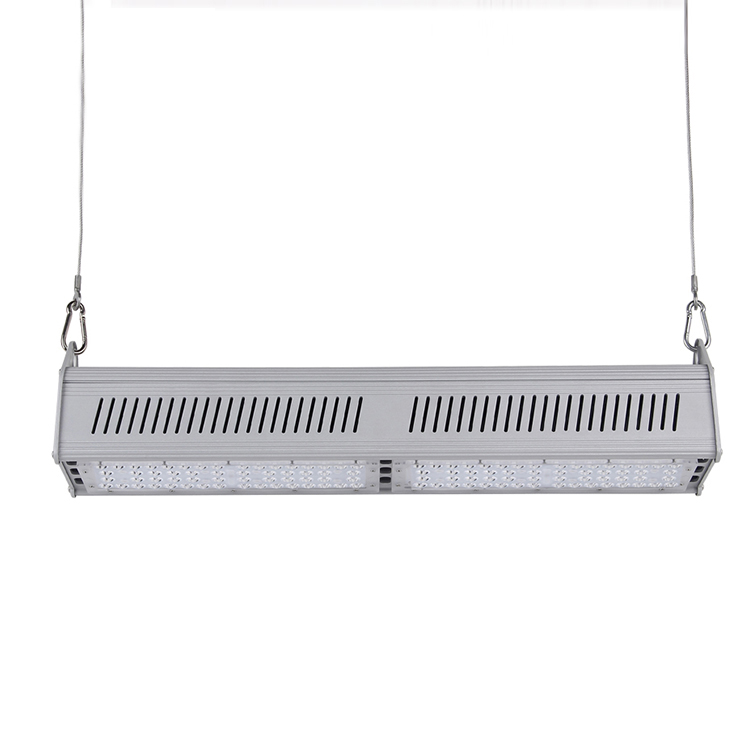

linear high bay light

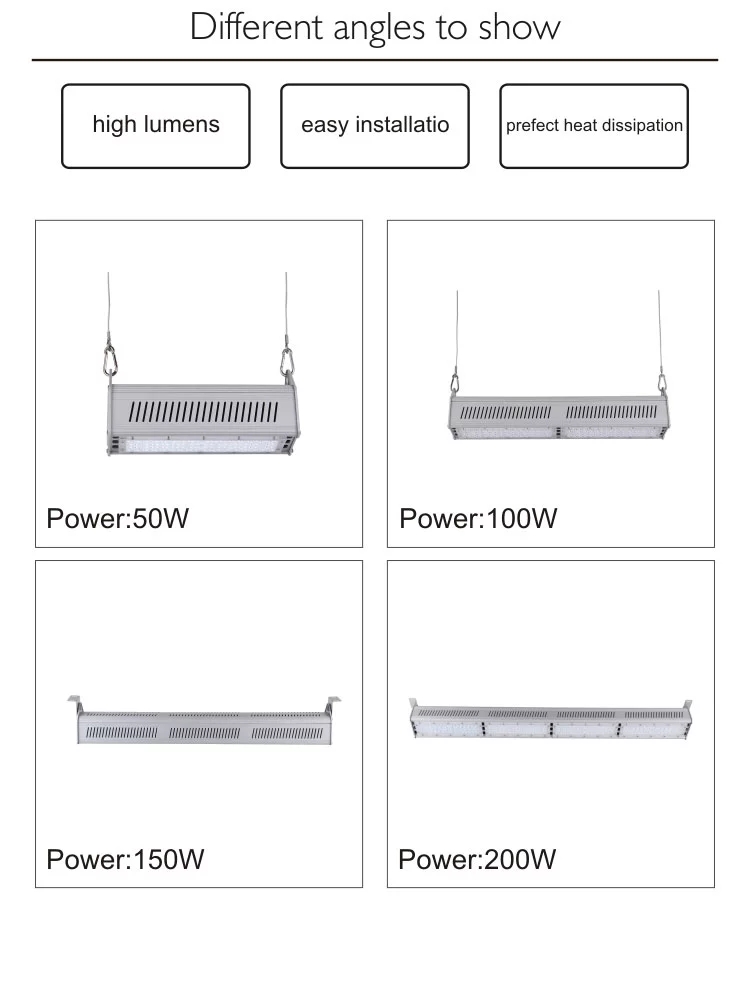

1 Wide power range: 50W~500W
2 Special circuit design, single LED’s damage won’t affect others’ normal work
3 Modular design for easy installation, replacement and maintenance.
4 High Lumen output up to 165lm/w with high quality LED chips
5 Variety applications with different mounting Accessories
6 Multiple lighting control options are available, e.g. DALI, 1-10V, Motion sensor
7 Designed to last at least 100,000 hours at L70
8 Multiple lighting distributions available
9 DLC/ SAA/ CB/ CE/ RoHS/ IK10 /IP66 /LM79
10 5- 7 years limited warranty available.

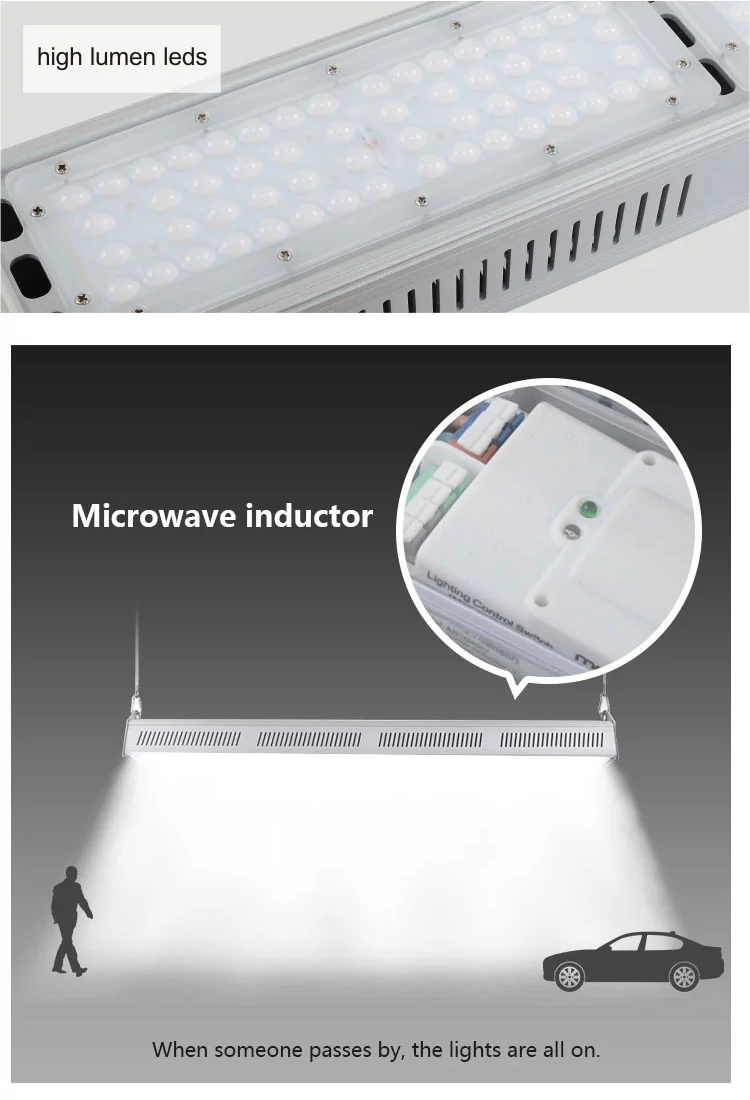

LED Chip & Lens
LED: SMD3030 led, LM-80 standard,
High lumen 110-140lm/w
Lens: PC material
30° / 60° / 90° / 80*155° degree beam angle
Driver
Original Taiwan Meanwell HLG series driver,
7 years warranty
IP65 waterproof

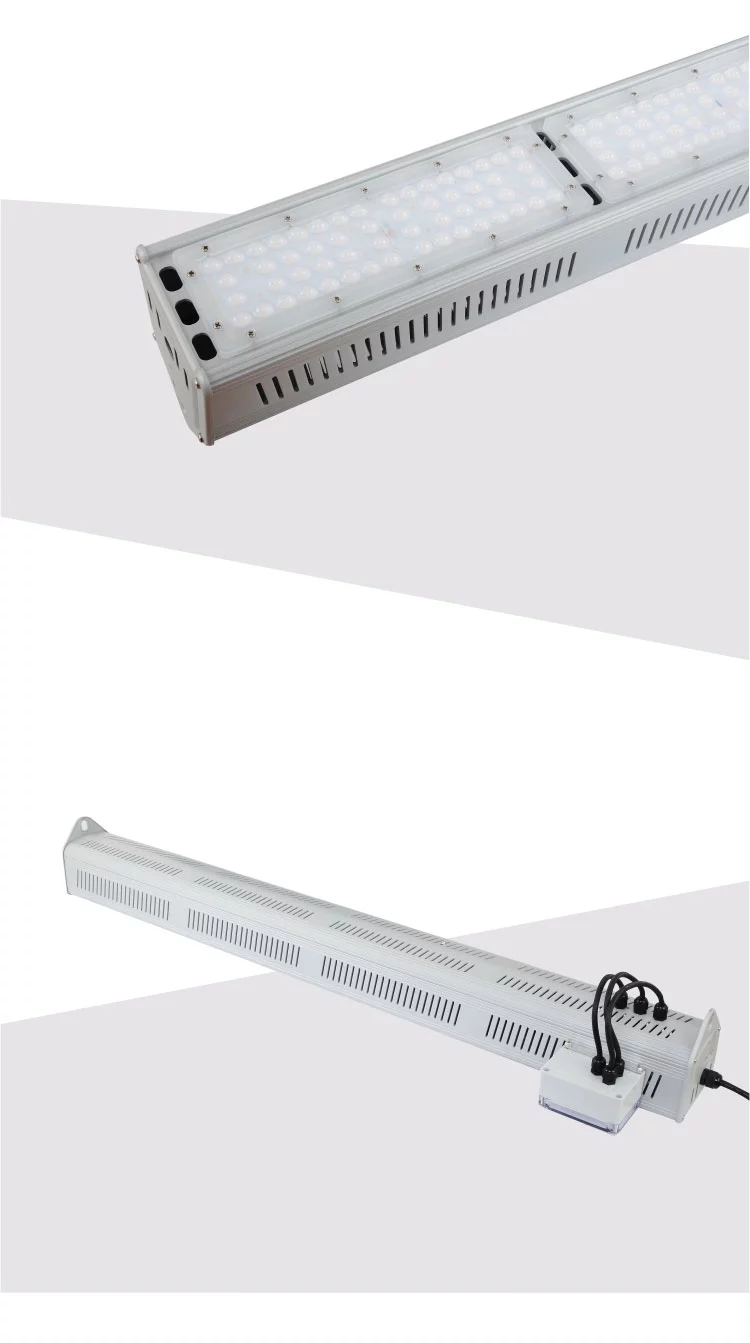

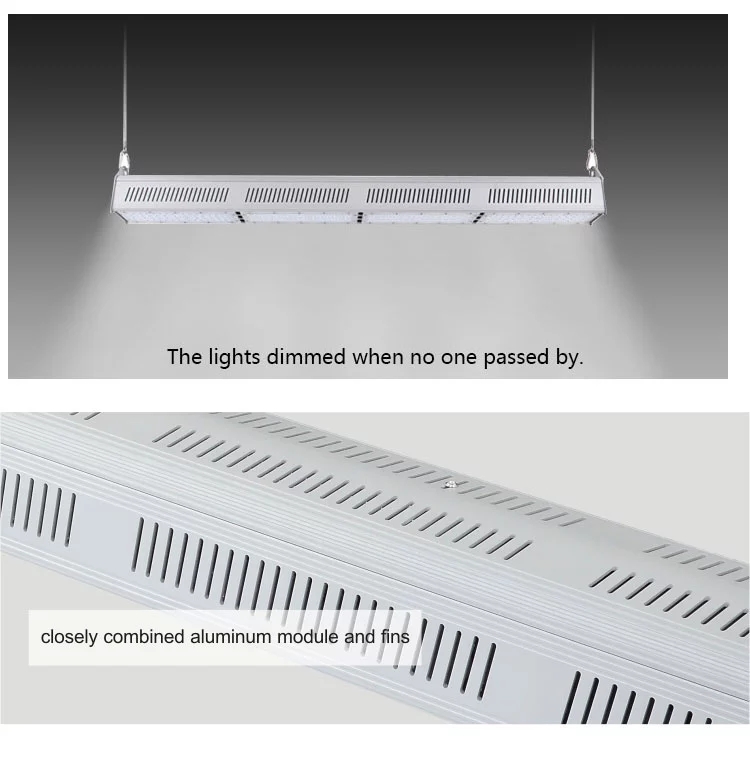

Heatsink
The housing is extrusion aluminum production process,better heat dissipating performance,and more slim,more light,more design popular,much more LED chip quantity to make make light higher lumen effeciency.
slim and light design housing could save your shipping space and cost.
Perfect lighting cover
This is lighting distribution for your kindly reference
Our Linear high bay light with 30° / 60° / 90° / 80*155° beam angles, meet different using enviornment.

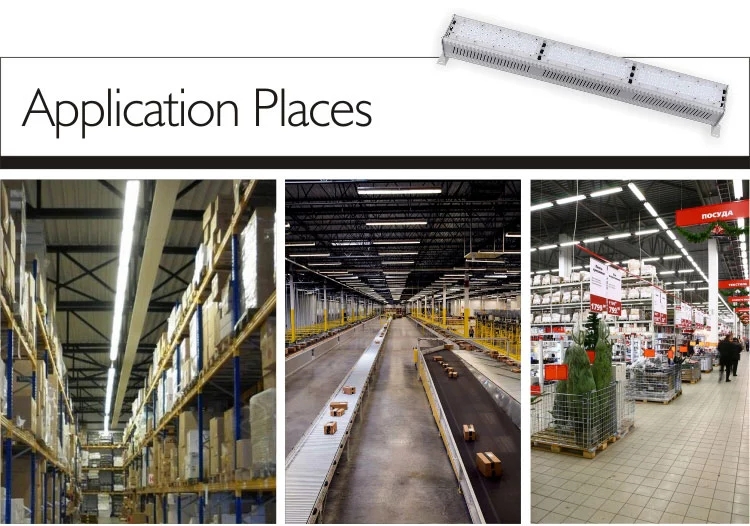

led linear high bay can used in
1 Warehouse lighting
2 Workshop, Steel Mill lighting
3 Supermarket lighting
4 Exhibition Halls lighting
5 Gym/ Stadium lighting
6 Gas Station lighting..
Packaging & Shipping
Each led high bay is packed by Inner carton box+Outer carton box. General Packaging with Meansuns Logo. Neutral packaging or cusomterized package
