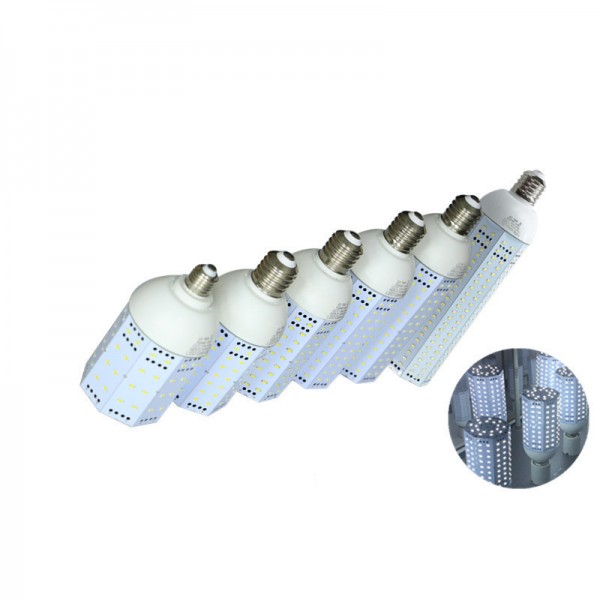

AC85-305V industrial using led corn light CE ROHS FCC PSE approve

Description

AC 85-305V industrial using led corn light CE ROHS FCC PSE approve



Features
1.Those LED Corn Lights are using high brightness of original packed Samsung 5630 SMD chip which acieves 120lm/w
2. As the world’s first new products, LED corn lights could replace the conventional compact CFL light directly .
3 Unique construction design with full beam angle (360°)
4 Fin aluminum heat dissipation system(patent design).
5 No spot, no black area, long life span and less brightness decay
6 Various lamp holder are available , a wide range of applications. (E39/E40, E26/E27)
7 Wide voltage AC85-305V,High efficiency constant current drives, Efficiency of power supply is more than 90%.
8 No magnetic disturbance influence and CE and RoHS standard compliant
9 No UV and near-IR radiation in the light beam.
10 LEDs are protected from bugs,dust,humidity because cover over them
11 There’s no noise since no fans inserted
12 36 months warranty



specifications

The Specification of led corn light
Item No.	MS-CNL-30W	MS-CNL-40W	MS-CNL-60W	MS-CNL-80W	MS-CNL-100W	MS-CNL-120W	MS-CNL-150W
Power Consumption	30W	40W	60W	80W	100W	120W	150W
Replace HID Lamp	150-200W	200-300W	300-450W	400-600W	600-1000W	800-1000W	1000-1500W
Dimension/Heat sink	93*195MM	93*195MM	93*205MM	93*229MM	93*241MM	93*265MM	93*338MM
Weight	0.5kg	0.5kg	0.55kg	0.55kg	0.7KG	0.74KG	0.76KG
Lumens	3000-3200LM	3500-4400lm	6000-6600LM	8000-8800LM	10000-11000LM	12500-13200LM	15700-16000LM
Base	e40 e27 e39 e26 or hook
Lumous flux	80~100lm/W
Power Factor	≥0.95
LED Power Supply	Mean Well driver or High quality driver
AC Input	AC85 – 305V (AC375V available on request)
DC Input	DC80~400V (DC12V, DC24V and other input available on request)
LED Light Source	Macro / Bridgelux / Epistar 5730 SMD
Color Temperature	2700~6500K
Beam Angle	360°
Color Rendering Index	≥80
Working Life	≥50000Hrs
Working Temperature	-20℃~60℃
Housing	Copper Free Aluminum
Warranty	3 Years
Brand of Products	MS& Customized
Certificate	CE, ROHS
OEM	accept

Applications

1. Read the user’s manual in details, make sure the environment conditions fit the requests
2. Cut the power off before installation
3. Do not run e40 led corn light over 300VAC unless it’s labeled.
4. Do not install this bulb in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor,Outdoor use in outdoor luminaires (minimum Ip65)
6. Don’t throw away casually



Packaging & Shipping

Standard export packaging
